HVGC 480 Watt High-Performance LED Driver
Product number:

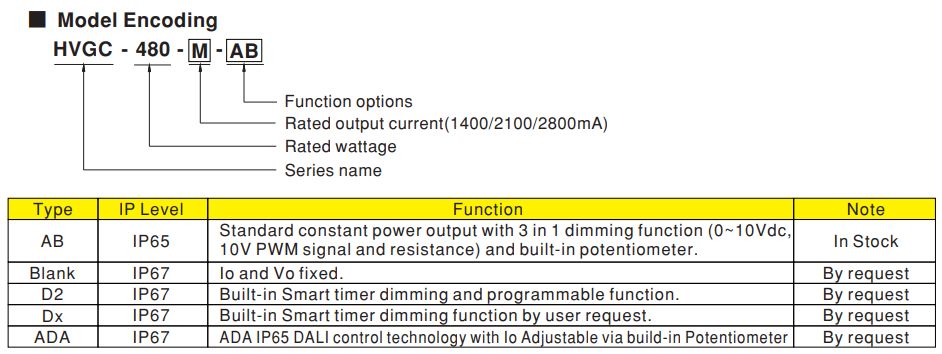

HVGC480-H-ADA
Product information "HVGC 480 Watt High-Performance LED Driver"
High-performance LED Driver HVGC 480 Watt incl. diff. Dimming Functions, IP67
Product Description:
HVGC-480 series is a 480W LED AC/DC driver featuring the constant power mode and high voltage output. The module operates from 180VAC - 528VAC and offers models with different rated current ranging between 1400mA and 2800mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40°C to +90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.
HVGC480 is equipped with various function options, such as dimming methodologies in order to provide the optimal design flexibility for LED lighting system.
Features of HVCG 480 series:
- Wide input range 180 ~ 528VAC
- Constant Power mode output
- Metal housing with Class I design
- Built-in active PFC function
- IP67 design for indoor or outdoor installations

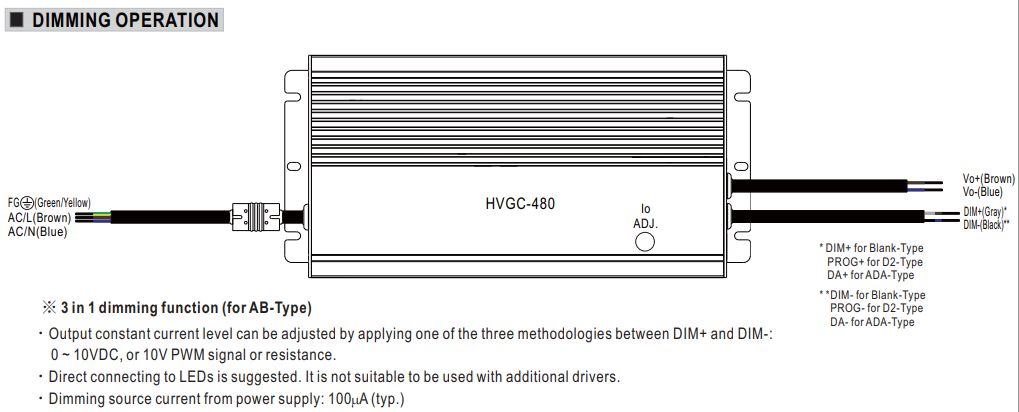

- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
- Applications:
- Harbor lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
Technical Data:
| Model | HVGC-480-L-AB | HVGC-480-M-AB | HVGC-480-H-AB |
| Rated current | 1400 mA | 2100 mA | 2800 mA |
| Design | For LED lighting applications (DIN EN61347) | ||
| Nominal voltage | 230 VAC | ||
| Min. input voltage | 180 VAC | ||
| Max. input voltage | 528 VAC | ||
| Constant current region | 137-343 VDC | 92-228,5 VDC | 68-171,5 VDC |
| Rated power (output) | 480 W | ||
| Frequency range | 47-63 Hz | ||
| Efficiency | 94,5 % | ||
| Working temperature | -40°C to +90°C | ||
| Storage temperature | -40°C to +80°C | ||
| Type of construction | Closed | ||
| Material (housing) | Primary aluminium | ||
| Protection level | IP67 | ||
| Service life | >50.000 h | ||

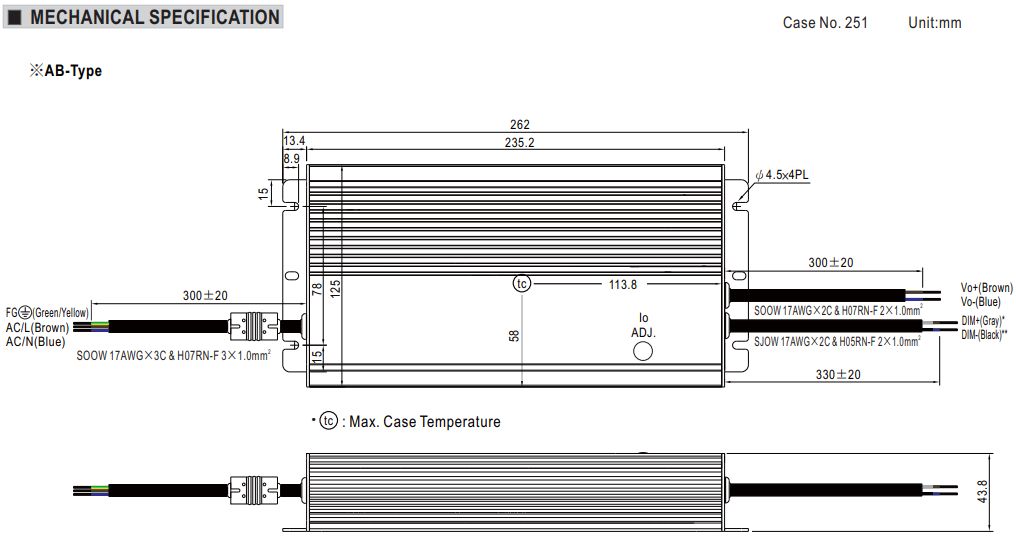

| Dimensions | 262*125*43,5 mm (L*W*H) | ||
The data sheet in the download tab provides further information.
| #Kategoriefilter: | LED-Treiber-alles mit CC |
|---|---|
| Application/IP-Code: | IP20 - IP44 (Indoor), IP65/67 (Outdoor) |
| Constant Current: | 1,4A, 2,1A, 2,8A |
| Dimmable/Control: | 1..10V, DALI, PWM |
| Meanwell Series: | HVGC |
| Power range: | 250 - 1000 W |
Login
sw_similar
HLG-60H-24 power supply from Mean Well
€33.20*
HLG60H-24
The HLG60H is a high performance dust - and waterproof AC-to-DC LED power supply up to 60W. The Meanwell HLG60H - the LED switching power supply is suitable in execution, for example -24A, perfect for for performance among others with 24V lamps, such as LED Stripes. The high power (up to 60W), many LED lamps can be switched to a single transformer.
Saving of costs! Even in outdoor applications is the HLG60 very suitable due to high protection.
It is also possible to dim via an additional input (Typ B)
HLG60H features (depends on type):
7 Years manufacturers warranty
IP65 for indoor or outdoor installations
Cooling by free air convection
Built-in active PFC function
Protections: over -/laod, -/voltage, -/temperature
IP65/IP67 for outdoor installations
Three possibilities of dimming via 1-10 V, PWM or resistance
OCP point adjustable through output cable or internal potentiometer
Universal alternate current up to 305VAC
Type H for use Class I Zone 2 (gases and vapors)
Compliance to worldwide safety regulations for lighting
LED lighting especially street lighting applications
Performance HLG60H Typ - 24 A:
IP65 design for indoor or outdoor installations
IP65 rated. Output voltage and and constant current level can
be adjusted through internal potential meter.
Performance HLG60H Typ - 24 B:
Constant current control regulation about 1-10V or PWM entrance, as well as external potentiometer
IP67 protection. For indoor -and outdoor applications
Technical data to Meanwell power supply HLG 60W:
Execution
For LED and lighting applications
Model
Switching power supply, Performance H
Input
90 - 305 VAC / 127 - 431 VDC 47 -63 Hz
Rated Power
60 - 62,1 W (voltage depending, see datasheet)
Surge solidity
4 kV
Output operating parameters
See data sheet
Design
HLG
Approbation
UL / EN Class C
Dimension
228mm x 68mm x 38,8mm (H x W x D)
On request, we also offer type and voltage ranges.
Variants from €39.27*
Meanwell ELG-100 Power Supply
€43.91*
Type:
-A- IP65, U/I via internal Poti adjustable
|
Voltage:
24 Volt
Meanwell ELG-100-xx"Type"
The Meanwell power supply ELG-100 Series includes a constant voltage source as well as a constant current source.It has an output power of 100 watts and output voltages from 24V to 54V so that various LED applications such as road-, indoor-, and architectural- lighting can be realized.With its metal housing and IP65 / IP67 the use for indoor and outdoor applications in the temperature ranges from -40 ° C to 85 ° C is possible.Depending on the type the connected LED illumination can be dimmed via 0-10V, PWM signal, potentiometer or DALI interface.
ELG100 features (depends on type):
5 Years warranty
Universal input voltage from 100V up to 305V AC
High efficiency up to 90%
Built-in active PFC function
Protections: over -/load, -/voltage, -/temperature
Type "?HL?" for use in Class I, Division 2hazardous (Classified) location
IP65/IP67 for indoor or outdoor installations
Standby power consumption < 0.5W
Compliance to worldwide safety regulations for lighting
Performance ELG-100 Typ -xx"-"(Blank):
Current and voltage output fixed
IP67 protection. For indoor -and outdoor applications
Performance ELG-100 Typ -xx"A":
Output voltage and current level adjustable through built-in-potentiometer
IP65 design for indoor or outdoor installations
be adjusted through internal potential meter
Performance ELG-100 Typ -xx"B":
Constant current control regulation about 1-10V or PWM entrance, as well as external potentiometer
IP67 protection. For indoor -and outdoor applications
Performance ELG-100 Typ -xx"DA":
Lightning control via DALI interface
IP67 protection. For indoor -and outdoor applications
Technical data Meanwell ELG-100 Power Supply:
Input
100 - 305 VAC / 142 - 431 VDC 47 - 63 Hz
Output
Depending on type, see data sheet
Rated Power
70 - 96,12 W (voltage depending, see datasheet)
Series
ELG
Typical lifetime
> 50.000 h
Dimensions (LxWxH)
199mm x 63mm x 35,5mm
For further technical data, please refer to the data sheet (in tab "DOWNLOADS").On request, we also offer type and voltage ranges.

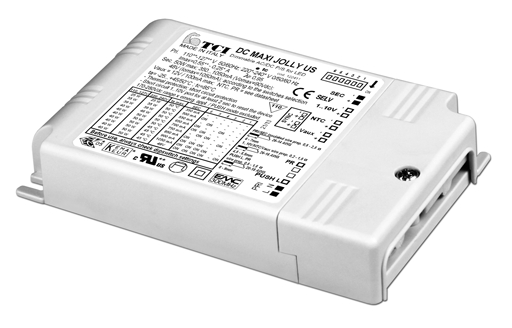

TCI MAXI JOLLY US 60 | 1-10V PUSH | 127411 | 151411
€50.54*
Type:
IP20 with cable clamp, Hybrid-Dim 127411
LED-driver 60W - Flicker-free constant current dimming
Successor of the famous TCI Maxi Jolly US 50W. New one now already available here.
Noteworthly innovations:
Power: 60W instead of 50W
Novel dimming to avoid flicker
Combination of linear (AM) and known PWM
Linear dimming (flickerfree) in the range of 100% - 25%
Switching to PWM (2KHz) in the range 25% - 1%
Optionally switch to PWM only at 240Hz by setting a bridge possible. (Details in the data sheet)
Tc-value of 90°C
TCI 127411: Value for constant current, or voltage can be set via dip switch.
By the possibility to configure currents from 350mA to 1050mA, As well as a power of up to 60W, this LED constant current converter is versatile. In addition, it offers dimming options for 1-10V or also via touch operation.
Overwiew of the technical data of the LED-Treiber 60W von TCI
Multi-Current Converter - Universally applicable.
Ext. Temperature sensor optional (connection for NTC available)
Dimming option via 1-10V control voltage. (Or alternatively via a 100K ohms potentiometer)
Push button or button operation: On / off by means of short push button, change of the brightness of the held button.
As a US version with remarkable improvements:
Improved EMC
Improved Overvoltage proctection (Surge) of 3,5-4kV
UL certified
Dipswitch settings
Dip-SW
Power
Spg. sec
Strom sec
Position 1
25 W
74 V max.
350mA const.
Position 2
35 W
72 V max.
500mA const
Position 3
39 W
72 V max.
550mA const
Position 4
46 W
72 V max.
650mA const
Position 5
50 W
72 V max.
700mA const
Position 6
54 W
72 V max.
750mA const
Position 7
60 W
70 V max.
850mA const
Position 8
60 W
66 V max.
900mA const
Position 9
60 W
60 V max.
1,00A const
Position 10
60 W
57 V max.
1,05A const
Efficiency of the LED driver depending on the power: 20W - 60W : 84% - 91%
All TCI Jolly LED drivers are dimmable via sync cable. Thus, the control is possible via only one push-button.
Up to 10 LED converters (slave) can be operated via a master.
Switches and installation materials are not included in the scope of delivery.
For detailed description please refer to the data sheet.
History of this proven TCI driver:
TCI 122410 --> Setting range 350mA - 1.4A and fixed voltage 48V
TCI 122411 --> Setting range 350mA - 1.05A and fixed voltage 48V, US version with higher surge voltage
TCI 123411 --> Such as 122411, but also compliance with the ecodesign directive with standby power <0.5W
TCI 127411 --> Higher power, Flicker-free by linear regulation in the dimming range of 25-100%,
downward compatibility up to 122411 is given. (Exception constant voltage operation) See data sheet for details.
HVGC-1000 LED driver high performance
€282.82*
High-performance DC-LED-Driver incl. IP67, 3 in 1 Dimming / DALI
Product Description:
HVGC-1000 series is a 1000W LED AC/DC driver featuring the constant power mode with wide output voltage range. The module operates from 180VAC - 528VAC and offers models with different rated current ranging between 2800mA and 5600mA. Thanks to the high efficiency up to 96%, with the fanless design, all models are able to operate for -40°C to +90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications, such as horticulture and stadium lighting.HVGC-1000 is equipped with various function options, such as dimming methodologies in order to provide the optimal design flexibility for LED lighting system.
Features of HVGC-1000 series:
Wide input range 180 ~ 528VAC
Constant power mode output
Metal housing with Class I design
Surge protection with 8KV/4KV
Built-in active PFC function
IP67 design for indoor or outdoor installations
Dimming options: 3 in 1 dimming (dim-to-off); Smart timer dimming and DALI 2.0
Auxiliary DC output 12v/500mA
Typical lifetime>50000 hours
5 years warranty
Applications:
Harbor lighting
LED high-bay lighting
Parking lot lighting
LED fishing lamp
Horticulture lighting
Stadium lighting
Technical Data:
Model
HVGC-1000A-L-AB
HVGC-1000A-M-AB
HVGC-1000A-H-AB
Rated current
2800 mA
4200 mA
5600 mA
Version
For LED lighting applications (DIN EN61347)
Nominal voltage
230 VAC
Min. input voltage
180 VAC
Max. input voltage
528 VAC
Constant current region
150-380 VDC
95-240 VDC
70-180 VDC
Rated power (output)
1003,2 W
1008,0 W
1008,0 W
Frequency range
47-63 Hz
Efficiency
95,5 %
96,0 %
96,0 %
Working temperature
-40°C to +90°C
Storage temperature
-40°C to +80°C
Type of construction
Closed
Material (housing)
Primary aluminium
Protection level
IP67
Surge protection
8kV / 4kV
Service life
>50.000 h
Dimensions
310*144*48,5 mm (L*W*H)The data sheet in the download tab provides further information to the HVGC-1000 series.
Variants from €449.94*

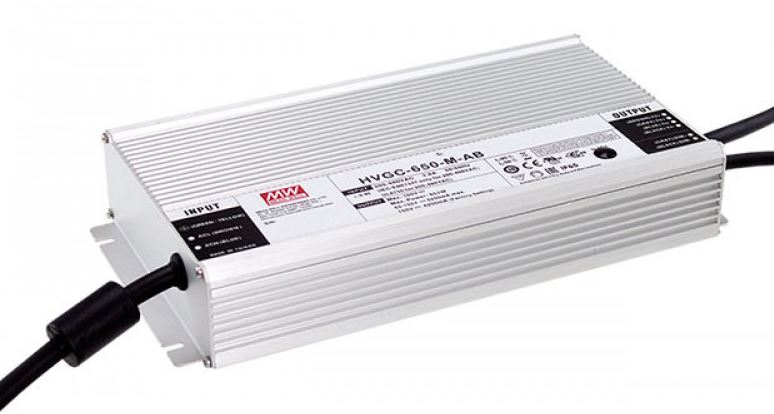

HVGC-650 High Performance LED Driver
