K-SPOT FLAT 14W DALI DT8 / ZigBee
Product information "K-SPOT FLAT 14W DALI DT8 / ZigBee"

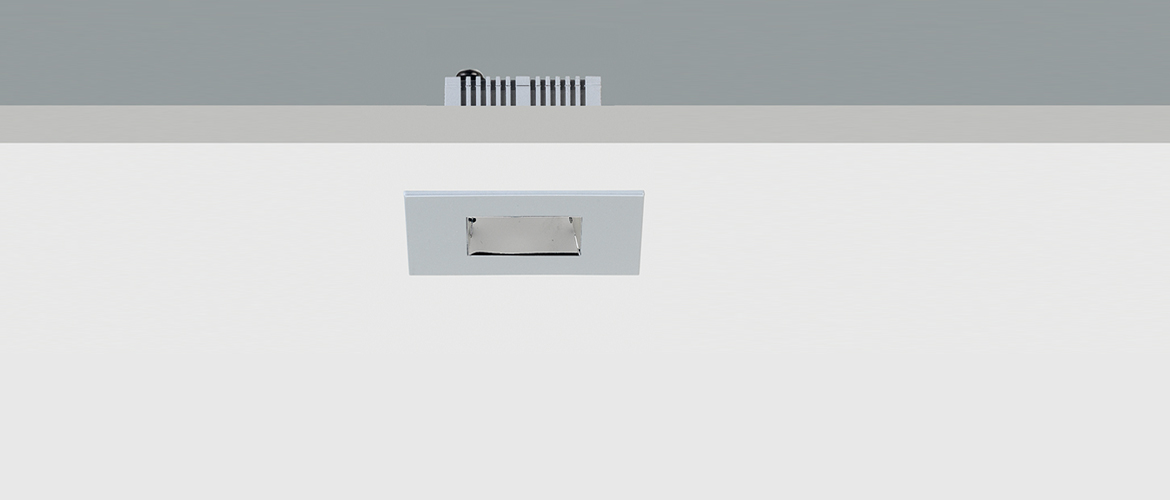

Highly efficient LED recessed luminaire K-SPOT FLAT 14W - DALI DT8 / ZigBee 3.0 dimmable
With its flat design, this compact LED recessed luminaire is perfectly suitable for a wide variety of indoor applications. Not only does it have a high level of efficiency, it also has microcontroller-controlled LED management, including factory calibration and temperature compensation. This results in a high colour location stability. In addition to functions such as modular dimming, the uniform light distribution and soft light mixing ensure optimum flexibility in LED lighting systems.
Another highlight are the innovative control options of the K-SPOT FLAT:
- Smart lighting control with NeoLink / ZigBee
- Control of complex lighting systems with DALI DT8
Product overview and features of the K-SPOT FLAT:
- Compact and timeless design

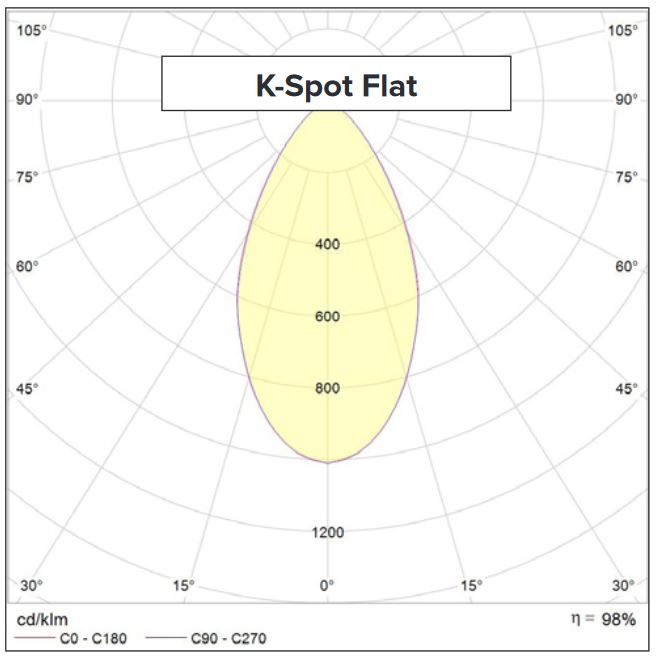

- Soft light mixing and uniform light distribution
- High optical efficiency due to integrated anti-glare reflectors
- High colour stability from micro-controller controlled LED management with temperature compensation and factory calibration
- Features:
- Colour temperature 1,800 K – 16,000 K
- Modular Dimming
- Camera Ready

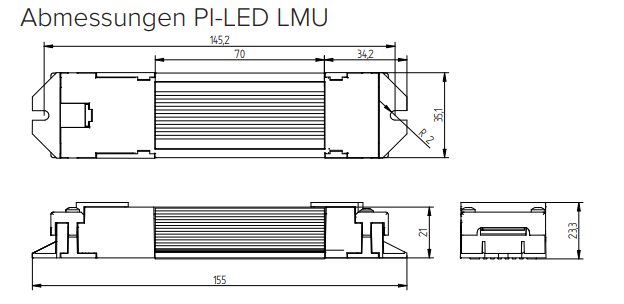

- LMU case with strain relief
- Integrated aluminium heat sink
- Operating temperature monitoring with automatic dimming function

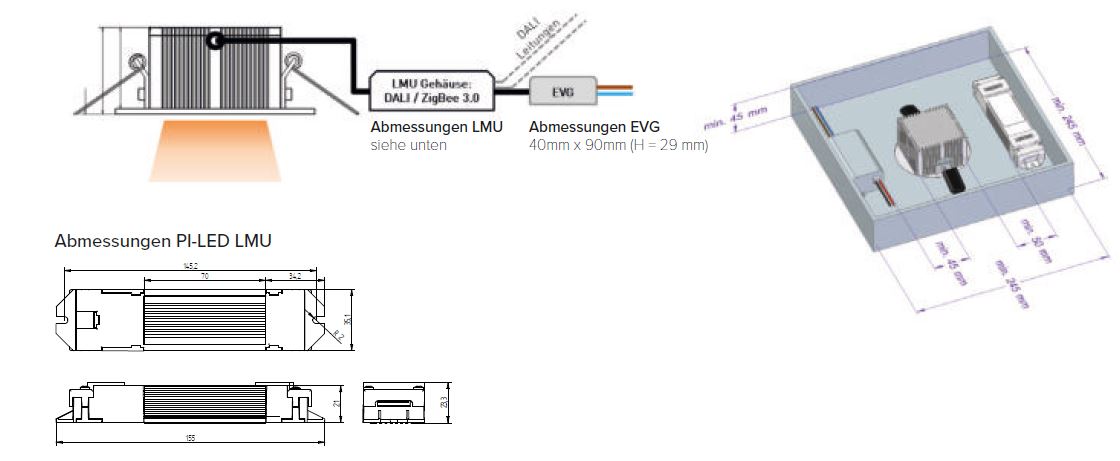

Installation instructions:
It is a recessed luminaire with a small size, which means that only small installation depths are required (minimum installation depth 45 mm). Tool-free assembly is also possible. It is made using 2 fastening springs for 1 - 15 mm ceiling thickness.
Technical data:
| Article number | K-DL-FLAT531 | K-DL-FLAT534 | K-DL-FLAT831 | K-DL-FLAT834 |
| Luminous source | LED-Modul (PI-LED) | |||
| Operating voltage | 230 VAC (inkl. externer Konverter) | |||
| Power | 14 W | |||
| Luminous flux | 880 lm | |||
| Colour temperature | 1800 K - 16000 K | |||
| Colour rendering index (CRI) | 90 | |||
| Control | ZigBee 3.0 | DALI DT8 | ||
| Dimming range | 1% - 100% | |||
| Housing colour | white (RAL 9003) |
brushed Aluminium |
white (RAL 9003) | brushed Aluminium |
| Protection type | IP30 | |||
| Protection type | SKII | |||
| Service lifetime | L80/B10 50000 h | |||
| Dimensions | 95 x 95 x 45,5 mm (L * W * H) | |||
Note:
The products of the manufacturer Kiteo are individually manufactured especially for you according to your specification. This also explains the longer delivery time of 1-3 weeks depending on the workload.
For further information please refer to the data sheet in the Download tab.
| Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| Color Temperature/Color: | 2700K, 3000K, 3500K, 4000K, >5000K, HCL/PI-LED, Tuneable White |
| Dimmable/Control: | DALI, DALI DT8, Zigbee |
| Hole diameter: | 95mm |
| Lamp shape: | Recessed ceiling |
