1-channel LED 1-10V Dimmer The 1-channel LED 1-10V PWM dimmer, 12-36VDC, 1x8A from PUR-LED with Analog input for electronic dimmers. The search for the ideal constant voltage source with 1-10V is over. With this 1-10V dimmer the system can be extended easily and reliably. Details on the wiring of the 1-channel 1-10VLED dimmer can be found in the data sheet. Technical data: Power supply: 12-36VDC Input signal: 1-10V active voltage Output voltage: 1 x 12-36VDC Output current: max. 8A Power output: 96W @ 12VDC 192W @ 24VDC 192W @ 36VDC Dimming function: 0-100% Temperature range: -20 - + 50°C Dimensions (LxWxH) in mm: 100 x 38 x 20

Multi channel DALI constant current (CC) dimmer by Lunatone Every channel of the DALI constant current dimmer has its own DALI address Configuration and control via DALI For the direct control of LED modules with current input The outputs are dimmable from 1% to 100% Different variants for 350mA per channel in a small housing, further 1000mA per channel in a big housing are available Configuration via DALI cockpit and DALI USB interface Integrated short protection The following versions are available: Two channel versions, with 2 DALI addresses each (one address per channel) Up to max. 2x 350mA output currents: 89453845-350With a collectice positive pole: 89453845-350DEWith a collectice minus pole: 89453845-350GMDEUp to max. 2x 500mA output currents: 89453845-500With a collectice positive pole: 89453845-500DEWith a collectice minus pole: 89453845-500GMDEUp to max. 2x 700mA output currents:With a collectice positive pole: 89453845-700With a collectice minus pole: 89453845-700GMUp to max. 2x 1000mA output currents: With a collectice positive pole: 89453845-1000With a collectice minus pole: 89453845-1000GM  Three channel versions, with 3 DALI addresses each (one address per channel) Up to max. 3x 350mA output currentWith a collective positive pole: 89453846-350With a collective minus pole: 89453846-350GMUp to max. 3x 500mA output currentWith a collective positive pole: 89453846-500With a collective minus pole: 89453846-500GM  Up to max. 3x 700mA output currentWith a collective minus pole: 89453846-700GM Four channel versions, with 4 DALI addresses each (one address per channel) Up to max. 4x 350mA output currentWith a collective positive pole: 89453855-350With a collective minus pole: 89453855-350GMUp to max. 4x 500mA output currentWith a collective positive pole: 89453855-500With a collective minus pole: 89453855-500GMUp to max. 4x 700mA output currentWith a collective minus pole: 89453855-700GM  Other technical data: Output voltage range: 3V-45V (with 48V supply) Supply: 12VDC-48VDC resp. 56VDC Control input: DALI Temperature: -15 °C - 50 °C resp. -20 °C - 60 °C Protection type: IP20 Condition after return: depends on the DALI settings Max. cross wire section: up to 2,5 mm² Dimensions: Check the data sheet

Multi channel DALI constant current (CC) dimmer by Lunatone Every channel of the DALI constant current dimmer has its own DALI address Configuration and control via DALI For the direct control of LED modules with current input The outputs are dimmable from 1% to 100% Different variants for 350mA per channel in a small housing, further 1000mA per channel in a big housing are available Configuration via DALI cockpit and DALI USB interface Integrated short protection The following versions are available: Two channel versions, with 2 DALI addresses each (one address per channel) Up to max. 2x 350mA output currents: 89453845-350With a collectice positive pole: 89453845-350DEWith a collectice minus pole: 89453845-350GMDEUp to max. 2x 500mA output currents: 89453845-500With a collectice positive pole: 89453845-500DEWith a collectice minus pole: 89453845-500GMDEUp to max. 2x 700mA output currents:With a collectice positive pole: 89453845-700With a collectice minus pole: 89453845-700GMUp to max. 2x 1000mA output currents: With a collectice positive pole: 89453845-1000With a collectice minus pole: 89453845-1000GM  Three channel versions, with 3 DALI addresses each (one address per channel) Up to max. 3x 350mA output currentWith a collective positive pole: 89453846-350With a collective minus pole: 89453846-350GMUp to max. 3x 500mA output currentWith a collective positive pole: 89453846-500With a collective minus pole: 89453846-500GM  Up to max. 3x 700mA output currentWith a collective minus pole: 89453846-700GM Four channel versions, with 4 DALI addresses each (one address per channel) Up to max. 4x 350mA output currentWith a collective positive pole: 89453855-350With a collective minus pole: 89453855-350GMUp to max. 4x 500mA output currentWith a collective positive pole: 89453855-500With a collective minus pole: 89453855-500GMUp to max. 4x 700mA output currentWith a collective minus pole: 89453855-700GM  Other technical data: Output voltage range: 3V-45V (with 48V supply) Supply: 12VDC-48VDC resp. 56VDC Control input: DALI Temperature: -15 °C - 50 °C resp. -20 °C - 60 °C Protection type: IP20 Condition after return: depends on the DALI settings Max. cross wire section: up to 2,5 mm² Dimensions: Check the data sheet

4-channel DALI dimmer for 12V and 24V / DT8 mode 8006504-channel LED dimmer 800650: 4-channel LED dimmer for constant voltage control only by DALI with SELV potential, 4 channels with consecutive addresses, adjustable: ?Press a button for a long time until display flashes (address of first channel). ? press right/left to set ?Press long to save or address by DALI Control. 4-channel LED dimmer DT8 808660: 4-channel DALI² DT8 LED dimmer for LEDs for constant voltage. Suitable for control via CASAMBI interfaces in DT8 mode Controlled only by DALI with SELV potential DALI Select start address (4 consecutive addresses): - press right button (0..9) long until display flashes (address of first channel) - press right / left to set - press right long to save - or addressing by DALI Control Set operating mode: - Press both buttons long until display flashes, press one button to select working mode - nn: for single-colour LED strips, all channels the same - R9: for RGBW LED bands - 7c: for Tunable White LED bands - H4: for settings via XY-coordinate - Press and hold both buttons to confirm selection Specifications of the 4-channel LED dimmers: Product No. 808660 (DT8 Version) 800650 800651 (only on request) Type DU4DA8-14-480 4-channel DALI² DT8 LED dimmer   DU4DA14-480 4-channel DALI LED Dimmer DU4DA14-768 Input voltage 12..24 VDC 12..24 VDC 12..24 VDC Output voltage 12..24 VDC 12..24 VDC 12..24 VDC Output power at 12V 4x60 W4x60 W 4x60 W 4x96 W Output power at 24V 4x120 W 4x120 W 4x192 W PWM frequency 1500 Hz 2000 Hz 2000 Hz Control current max. 2 mA 1,5 mA 1,5 mA Max. Rated temperature tc 75 °C 75 °C 75 °C Dimensions 170 x 53 x 29 mm 178x46x20 mm 170x59x29 mm For more information please refer to the data sheets in the Download-Tab.

Multi channel DALI constant current (CC) dimmer by Lunatone Every channel of the DALI constant current dimmer has its own DALI address Configuration and control via DALI For the direct control of LED modules with current input The outputs are dimmable from 1% to 100% Different variants for 350mA per channel in a small housing, further 1000mA per channel in a big housing are available Configuration via DALI cockpit and DALI USB interface Integrated short protection The following versions are available: Two channel versions, with 2 DALI addresses each (one address per channel) Up to max. 2x 350mA output currents: 89453845-350With a collectice positive pole: 89453845-350DEWith a collectice minus pole: 89453845-350GMDEUp to max. 2x 500mA output currents: 89453845-500With a collectice positive pole: 89453845-500DEWith a collectice minus pole: 89453845-500GMDEUp to max. 2x 700mA output currents:With a collectice positive pole: 89453845-700With a collectice minus pole: 89453845-700GMUp to max. 2x 1000mA output currents: With a collectice positive pole: 89453845-1000With a collectice minus pole: 89453845-1000GM  Three channel versions, with 3 DALI addresses each (one address per channel) Up to max. 3x 350mA output currentWith a collective positive pole: 89453846-350With a collective minus pole: 89453846-350GMUp to max. 3x 500mA output currentWith a collective positive pole: 89453846-500With a collective minus pole: 89453846-500GM  Up to max. 3x 700mA output currentWith a collective minus pole: 89453846-700GM Four channel versions, with 4 DALI addresses each (one address per channel) Up to max. 4x 350mA output currentWith a collective positive pole: 89453855-350With a collective minus pole: 89453855-350GMUp to max. 4x 500mA output currentWith a collective positive pole: 89453855-500With a collective minus pole: 89453855-500GMUp to max. 4x 700mA output currentWith a collective minus pole: 89453855-700GM  Other technical data: Output voltage range: 3V-45V (with 48V supply) Supply: 12VDC-48VDC resp. 56VDC Control input: DALI Temperature: -15 °C - 50 °C resp. -20 °C - 60 °C Protection type: IP20 Condition after return: depends on the DALI settings Max. cross wire section: up to 2,5 mm² Dimensions: Check the data sheet

Casambi CBU-PWM4 - Control your LED stripes on up to 4 channelsThe CBU-PWM4 is a Bluetooth controllable, Casambi able 4 channel PWM-dimmer for LED loads (constant voltage) as LED stripes and LED modules.The module has to be connected between the 12-24 VDC power supply and the LED load.With the CBU-PWM4 you can control your light system on up to 4 channels, which suits perfectly for applications with RGBW or tunable white. The maximum combined output current has an amount of 6A and can be split up between all 4 channels. The Casambi CBU-PWM4 is protected against overvoltages, overcurrents and short circuits.With the free Casambi App you are able to control the CBU-PWM4 module. The app is downloadable at Apple App Store and Google Play Store.Many different Casambi able products can be used as a simple direct control of your lights or even as a complete smart light control system with up to 127 units which team up automatically to build an intelligent light system.  The module is configurable for the following usages: Universal: mode of operation is configurable in the Casambi App (1-4 CH, CCT/TW, RGB or RGBW)RGBW: for controlling of LED stripes with RGBW (Plug&Play)RGB: for controlling of LED stripes with RGB (Plug&Play)TW: for controlling of CCT/TW LED stripes (Plug&Play)1-4 channels: for systems with separated channel controlling (CH1-4 are applicable) (Plug&Play)  Technical data: Bluetooth 4.0: Yes Input voltage: 12-24 VDC Input current: max. 6A Standby power: <0,3 W Output voltage: 12-24 VDC Output current: max. 6A (randomly dividable) Output power: max. 144 W @ 24 VDC, 72 W @ 12 VDC Dimmable: Yes Dimmtechnique Pulse width modulation (PWM) Protection class: IP20 Protection category: III Dimensions: 72,6 x 30,0 x 18,0 mm Ambient temperature: -20 °C to +45 °C The following Casambi PWM4 Modules are available: Article# Name Function 800385 DEBTPRO14-144 Universal 800387 DEBT14-14  1-Channel 800389 DE3BT14-144  RGB 800386    DE4BT14-144  RGBW 800388 DE2BT14-144   Casambi CCT 800382 DE2CHBT14-144  2-Channel 800383 DE3CHBT14-144 3-Channel 800381 DE4CHBT14-144 4-ChannelFree Casambi App download: Casambi App in Appstore Casambi App for Android   Video about Casambi PWM4-Dimmer for e.g. LED-Stripes

CASAMBI LED dimmer - 4 Channels, Advanced Adaptive Dimming  This compact, high-efficiency LED dimmer has a CASAMBI control function and allows convenient operation with a tablet or smartphone. Light bulps, dimmable LED lamps and control gear for LEDs and halogen lamps can be put into operation with this CASAMBI module. However, it is not suitable for magnetic transformers.  Further features: You can setup a gateway, but it is not necessary Integrated antenna Installation in flush-mounted box Advanced Adaptive Dimming Push button input for controlling Ideal for LED strips with high performance Adjustable profiles, operating modes for 808948: 4 independent channels each up to 4.4A RGB+W operating with up to 4.4A each Tuneable WHite (TW) with 2x 8.8A 2 independent channels each up to 8.8A Interconnection to single-channel operation for up to 17.6A Setup and operating instructions:  It is recommended to install the free app from CASAMBI. It is available both in the "App Store" and in the "Play Store". This offers you the following options: Lighting control (colour/dim level) Configuration of luminaires and luminaires networks Creation of scenes and animations (colour gradient) Automatic detection of new device Intelligent timer and gallery function Protection settings of your luminaires network („just me“, „with password“,...) Technical data:  Article number 808948 Type DE4DABT14-422 Power supply input 10..24 Vdc Signal input BT 4.0 (2,4 GHz) lite @ Smart device Funksignal 2,4..2,483 GHz; 4 dBm Alternative control push button, DALI Max. output power 4,4 A PWM frequency 130,2 Hz, 488 Hz Ambient temperature -20..+40 °C Rated Max. temp 85 °C IP protection level 20 Dimensions 56,6×35,8×22,6 mm Further information can be found in the data sheet in the Download tab. Casambi App in Appstore Casambi App for Android

Casambi light control module with PWM dimming in waterproof casing Experience the new variety of applications of CASAMBI With Casambi you can operate your lighting easily and individually, conveniently via smartphone or tablet, wirelessly. Controlling runs via Casambi LE (Low Energy). If several Casambi modules are in use, a so-called "mesh network" is built up. Each additional Casambi module increases range, because each module establishes a direct connection to all others. Your luminaires can now not only be dimmed, switched on and off, but also timed via the timer function, up to max. 3 lights can be combined to a group, light scenes deposited, and much more. The compact modules are simply mounted in front of the luminaire or behind the switch so that no additional cables need to be laid. The setup is extremely simple, all components are automatically detected in the network and in the app. This device with IP 65 protection can be used wherever you have to reckon with moisture during use, for example: Bath rooms Sauna areas Swimming baths Coolings houses Garden lights For all outdoor applications Convenient control of all settings via the free App from CASAMBI (in the text below): LED dimmer with IP65 protection for convenient operation with tablet or smartphone (Apple, Android) For LED strips and other modules for constant voltage Free App from CASAMBI (Apple / Android): Lighting control (colour / dim level) Configuration of luminaires and luminairs networks Creation of scenes and animations (colour gradients) Automatic detection of new devices intelligent timer- and gallery functions Protection settings of your luminaires network (only me, everybody, password access, ..) You can setup a Gateway, but it is not neccesary  Integrated antenna Also controllable via wall switch RWBT and Xpress RW?EBT Apple Watch compatible Do not insert switches into the secondary circuit! Other special features: Fixed rubber connection cables, 15 cm each Interface with IP 65 protection for convenient control of LED power supplies with DALI input signal by smartphone or tablet (Apple/ Android) Sends DALI broadcast. Possibility to configure the other interface types I (U) BTU, I (U) .. BTDA before pairing with the network: Change profile You can also setup a gateway but it is no necessary Integrated antenna (see position drawings, gray area, do not cover with metal casing) Switched network output: To avoid standby currents and to switch off the connected lighting at 0% dimming via the Casambi App completely, a relay suitable for the power to be switched must be used. A corresponding circuit diagram can be found in the Tab images. We offer the suitable relay directly in the recommendation tab Location of the antenna When installing, pay attention to the position of the antenna and avoid larger metallic structures or, if necessary, plan a recess for the antenna. It is recommended to test the range after all conversions. The position and size of the recess can be found in the image in the Images tab. Technical data: (DALI: CCT, RGB, RGB+W, 1..4CH) Article no. built in housing 808885 Type built in housing DIBTPRO14-144 Power supply input 12..24 Vdc Signal input BT 4.0 (2,4 GHz) lite @ smart devices Radio signal 2,4..2,483 GHz; 4 dBm Max. output power 12 V: 72 W 24 V : 144 W PWM frequency ~ 400 Hz Ambient temperature (ta) -20.. +40 °C Rated max. temp. (tc) 75 °C IP Protection level 65 Dimensions 100 x 37 mm (without cable) CASAMBI QR-Code and Links (direct download) Casambi App in the Appstore Casambi App for Android Small selection of introduction videos for CASAMBI: .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} CASAMBI Tutorial | General overview of functions   .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} CASAMBI Tutorial | Start / First steps / Set up network   .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;}  CASAMBI Tutorial | Create and use scenes   .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} CASAMBI Tutorial | Pairing and setting up Xpress   Many more supportive videos about Casambi can be found on YouTube. For further information and wiring diagrams please refer to the data sheet. (Download-Tab)

Casambi light control module, with leading-edge dimming, waterproof casing Experience the new variety of applications of CASAMBI With Casambi you can operate your lighting easily and individually, conveniently via smartphone or tablet, wirelessly, based on Casambi. Controlling runs via Casambi LE (Low Energy). If several Casambi modules are in use, a so-called "mesh network" is built up. Each additional Casambi module increases range, because each module establishes a direct connection to all others. Your luminaires can now not only be dimmed, switched on and off, but also timed via the timer function, up to max. 3 lights can be combined to a group, light scenes deposited, and much more. The compact modules are simply mounted in front of the luminaire or behind the switch so that no additional cables need to be laid. The setup is extremely simple, all components are automatically detected in the network and in the app. This device with IP 65 protection can be used wherever you have to reckon with moisture during use, for example: Bath rooms Sauna areas Swimming baths Coolings houses Garden lights For all outdoor applications Convenient control of all settings via the free App from CASAMBI (in the text below): Dimmer with IP65 protection for a convenient adjusting of light sources by tablet or smartphone (Apple, Android) via Casambi For the operation of incandescent lamps, dimmable LED lamps and control gear for LEDs and halogen controlgear (not for magnetic transformers) Free App from CASAMBI (Apple / Android): Control the brightness Configuration of luminaires and luminairs networks Creation of scenes and animations Automatic detection of new devices intelligent timer- and gallery functions Protection settings of your luminaires network (only me, everybody, password access, ..) You can setup a Gateway, but it is not neccesary Integrated antenna Also available in installation housing or terminal cover Also controllable via mains switch or wall switch RWBT Xpress and RW EBT Apple Watch compatible Max. 2 Lamps of the same type, max. 2 LED power supplies Other special features: Fixed rubber connection cables, 15 cm each Interface with IP 65 protection for convenient control of LED power supplies with DALI input signal by smartphone or tablet (Apple/ Android) via Casambi Sends DALI broadcast. Possibility to configure the other interface types I (U) BTU, I (U) .. BTDA before pairing with the network: Change profile You can also setup a gateway but it is no necessary Integrated antenna (see position drawings, gray area, do not cover with metal casing) Switched network output: To avoid standby currents and to switch off the connected lighting at 0% dimming via the Casambi App completely, a relay suitable for the power to be switched must be used. A corresponding circuit diagram can be found in the Tab images. We offer the suitable relay directly in the recommendation tab Location of the antenna When installing, pay attention to the position of the antenna and avoid larger metallic structures or, if necessary, plan a recess for the antenna. It is recommended to test the range after all conversions. The position and size of the recess can be found in the image in the Images tab. Technical data:   Article no. built in housing 808698 Type built in housing DIBT230-150 Power supply input 85..240 V; 50..60 Hz Signal Input Casambi 4.0 lite @ smart devices Radio signal 2,4..2,483 GHz; 4 dBm Power at 230V 115V mains power LED modules; incandescent lamps: 150 W / 75 W LEDs with power supply, retrofit LEDs, CFL, halogen lamps with converter: 50 W / 25 W Inrush current Max. 4.0 A Ambient temperature (ta) -20.. +45 °C Rated max. temp. (tc) 65 °C IP Protection level 65 Dimensions 100 x 37 mm (without cable) CASAMBI QR-Code and Links (direct download) Casambi App in the Appstore Casambi App for Android Small selection of introduction videos for CASAMBI: .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} CASAMBI Tutorial | General overview of functions   .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} CASAMBI Tutorial | Start / First steps / Set up network   .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;}  CASAMBI Tutorial | Create and use scenes   .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} CASAMBI Tutorial | Pairing and setting up Xpress   Many more supportive videos about Casambi can be found on YouTube. For further information and wiring diagrams please refer to the data sheet. (Download-Tab)

KNX LED-dimmer Chromoflex for RGB (W) stripes from Pur-LED The control unit was designed for indoor areas. With this device, up to 4 output channels can be controlled via a KNX bus. In addition, the number of output channels used, the type of dimming curve and others can be set via the ETS software.The KNX LED dimmer is designed for temperatures up to 80 ° C.It was developed according to the guidelines of the "KNX Association". KNX is a standardized digital communication interface in the field of building automation. Technical data: Operating voltage 10V to 48V DC Protection III Output current max 2,2A per channel Dimensions (L/W/H) 180 / 52 / 22 mm Own power consumption (without LED): ca. 5 - 20mA Ambient temperature 0°C - max. +50°C Protection type IP20 Further information can be found in our download tab.

DALI 2xCW-WW LED Dimmer 12V - 48V Device with 2 DALI Tunable White LED dimmers. Suitable for constant voltage (CV) LED modules of 12V to 48V. 2 DALI addresses (Device Type 8, Color Type Tc), each DT8-Tc address allows independent control of brightness and color temperature.Available with input voltage of 12V to 48V DC and input currents up to 16A. Product overview: Device with 2 DALI Tunable White LED-Dimmer Suitable for constant voltage LED-modules with 12V to 48V 2 DALI adresses (Device Type 8, Colour Type Tc) Each DT8-Tc adress provides independent control of light level and colour temperature dimming range 1%-100% PWM-frequency 488Hz suitable for dinrail mounting supply voltage from 12V to 48V DC input current from 0.1A to 16A The input current can be distributed on the outputs at will Low standby losses High efficiency >98% Configuration via DALI-Cockpit software tool and DALI USB interface Product features: Type DALI 2xCW-WW LED Dimmer Article number 89453858-HS Electrical data Supply voltage 12VDC-48VDC Max. input current 16A Control input DALI Current consumption DALI 2mA Number of DALI adresses 2 (DT8-Tc) Standby losses (12V) 120 mW Technical data Power on behaviour configurable via DALI: 0%-100%, last value Storage and transportation temperature -20°C ... +75°C Operational ambient temperature -20°C ... +60°C Expected lifetime >10 years (at Tc<=75°C) Protection class IP20 Max. connecting wire crosssection 2.5 mm2 Dimensions (LxBxH) 98mm x 17.5mm x 56mm Mounting/housing dinrail You can find more information about this product in the data sheet under Downloads.

LED dimmer DALI RGB(W) 12-36V, 4x5A with push button input Push Dim for 230V The 4-channel LED DALI PWM dimmer from PUR-LED offers the universal possibility to dim e.g. LED strips. Simply switch between power supply (12-36V) and your 1 to 4 LED strips or RGB(W) strips. Dimming / brightness control can then be performed via Push Dim or DALI. The special feature of this device is that not only the addresses themselves but also the number of DALI addresses used can be set individually.If one of the two buttons on the device is held down, the display flashes and the number of addresses can be set manually. 4 addresses are preset ex works. Details in the data sheet.Independent of this, this dimmer is push dim capable: All addresses are dimmed together with pushbuttons. Technical data of the Push Dim or DALI dimmer:

DALI LED dimmer with constant voltage with 2, 3 resp. 4 separately controllable channels. Every channel of the DALI LED dimmer by Lunatone has it's own DALI address and can therefore be controlled independently. Input voltage of 12 to 48 V, depending on the model for connection currents up to 16A, 2-4 PWM outputs (16Bit).   Product specifications: Allows a separated control of 2, 3 resp. 4 PWM outputs via DALI Suitable for the control of constant voltage LED modules Every output is 1% - 100% dimmable Configuration via DALI cockpit softwaretool and DALI USB-interface LED-dimmer with 2, 3 resp. 4 separated channels Every channel has it's own DALI address Different housing variants depending on the type (check data sheet) Supply voltage 12V to 48V DC (depending on the type, check the data sheet) Max. connection currents of 4A, 8A, 10A or 16A depending on the type The maximum connection current can be spread on the channels arbitrarily, the sum current musn't exceed the connection current. Current / Channels 2Ch 3Ch 4Ch 4A 89453827 89453828 -- 6A 86459561-6 86459571-6 -- 8A 89453833 89453834 89453835 10A 86459561 86459571 86459560 16A 89453830 89453831 89453832 Technical data Supply voltage: Check the data sheet Control input: DALI Temperature: Check the data sheet Protection type: IP20 Condition after return: depends on the DALI configuration Max. wire cross-section: Check the related picture or the data sheet Dimensions (LxWxH): Check the related picture or the data sheet

DALI PWM dimmer of PUR LED with 4 channels and DIN rail mounting All channels are controlled separately. The 4-channel DALI PWM dimmer from PUR-LED stores its last program and switch-on state in case of power interruption. Technical data: Voltageverse.: 12-36VDC Current consumption: 4x5A max. Control inputs: 1 Control signal: DALI/DSI with 4 addresses PWM-frequency: 500 Hz Output mode: constant voltage Outputs: 4x separately addressable DALI channels, common plus potential (acc. +) 12-36VDC Output voltage: 4x12-36VDC Output load: 4 x 5A Power Output: 240W @ 12VDC / 480W @ 24VDC / 720W @ 36VDC Temperature range: -15 bis 40°C Dimensions (LxWxH) in mm: 110x54x65

DALI RGBW dimmer resp. DALI RGB dimmer (constant voltage)The DALI RGBW dimmer with PWM by Lunatone makes a direct control of luminaires with RGB- or RGBW-Input possible. With the pure DALI RGB dimmer model, luminaires with RGB-input are controllable.For this purpose four resp. three PWM-outputs (16 Bit) each have one DALI address (DT8). Depending on the type, a maximum of four power connections 4A, 8A, 10A or 16A are possible. Product specifications: The device is controlled through a DALI-adress (Device Type 8) LED-dimmer with RGBW-colour control Separated control feature of brightness and colour (Operation type: normalized, unlinked) Controlling of four resp. three PWM-outputs for the colors red, green, blue and white (RGBW dimmer) via DALI (DT8, colour representation RGBWAF) Configuration via DALI-Cockpit Softwaretool and DALI USB-Interface Suitable for the control of constant voltage LED-modules Depending on the model, housingvariations with various dimensions are available Supply voltage 12V or 24V DC, 48V version by request Connection currents of 4A, 8A, 10A or 16A and different models are available individually The maximum output current can be spread arbitrarily on the different colour channels, the sum current though, must not exceed the connection current. The following versions are availableRGB-versions, with 3 PWM-outputs (16-Bit) up to a connection current of 4A: 89453837up to a connection current of 8A: 86458514up to a connection current of 10A: 89453839up to a connection current of 16A: 89453842RGBW-versions, with 4 PWM-outputs (16-Bit) up to a connection current of 8A: 86458509up to a connection current of 10A: 89453840up to a connection current of 16A: 89453843 Other technical data: Supply: 12VDC-24VDC, 48V by request Control input: DALI (Device Type 8) Dimming: 1 % - 100 % Temperature: -15 °C - 50 °C Protection type: IP20 Condition after return: depeding on the DALI-configuration Max. wire-cross section: 2,5 mm2 Dimensions (LxWxH): 40x28x14 mm resp. 59x33x15 mm. 120x30x21 mm

DMX LED Controller, DMX 512 3-channel Decoder RGB converter, RGB 5-24VDC 3x8A common positive This DMX 3-channel decoder serves as RGB LED controller for the DMX-512 standard The input signal is a standard DMX512. Optionally also available: XLR, RJ45 or terminal connections. The DMX LED Controller is dimmable in 256 steps. The DMX address can be set via dip switch 1-9 from 0 to 511. Example: To set the address to 37, set switch 1,3 and 6 (1 + 4 + 32) to ON. The decoder then uses the addresses 37, 38, 39 and 40 consecutively on RGBW output. In addition, the DMX LED Controller has a test function. Technical Data: Input voltage: 5-24V DC Outup current: 3 channelsx 8A max. Input signal: DMX512 Output signal 3CH PWM constant voltage, common + Channels: three: R- / G- / B- / COM+ Dimming range: 256 levels DMX512 Connection: DMX512 Connection: DMX512 input and output for DMX signals alternatively XLR, RJ45 or terminal connections Output power: 120W @ 5Vdc / 288W @ 12Vdc max. / 576W @ 24Vdc max. Temperature range: -20 to +55°C Dimensions (LxWxH) in mm: 156 x 78 x 40 Weight: 430g

DMX512 LED Dimmer 12-24Vdc 24x4A RDM This 24-channel RDM DMX512 converter lends itself to large light project. Perfect for controlling several zones. Using RDM (remote device management) protocol, it is possible to communicate bidirectionally via standard DMX lines with all connected RDM-capable devices. Connected devices are identified and addressed, the assignment of a DMX start address is omitted. At the same time standard DMX and RDM-capable devices can be used, here there is no mutual interference. The RDM protocol sends its own signals, including status messages. Technical data 6x4Kanal DMX Dimmer: Input voltage 12-24 Vdc Output current 24 x 4A, common positive pole Output power 48W @ 12Vdc / 96W @ 24Vdc Input signal DMX512 + RDM Output signal 24 CH PWM constant voltage acc. + Dimming 8 bit and 16 bit resolution DMX512 Connection DMX512 input and output for DMX signals, optional XLR or RJ45 connectors Dimensions (LxWxH in mm) ca. 265 x 83 x 42 Operating temperature -20 - + 55°C Delivery LED DMX 24 channel (6x 4 channel) Decoder (Art.Nr.: CTR-7673524) For more detailed information, please read the data sheet / PDF.

LED Booster for amplifying a PWM-signal (constant current) With this LED Booster it is possible to amplify a 1-channel PWM-signal up to 24A output current. The repeater is wired between the control unit or the dimmer and the LED stripe. In this way long-distance transmissions can be bypassed without the need of additional expensive control units. The LED Booster is realized as a constant current source, thus the output voltage can be kept constant up to a 24A output current. Technical Data: Power supply: 12-24VDC Output mode: Constant voltage Output voltage: 1x12-24VDC Output current: 1x24A Output power: 288W @ 12VDC / 576W @ 24VDC Color: Black Temperature range: -20°C to +45°C With connection terminals: Yes Dimensions (LxWxH) in mm: 150x54x32

Amplifier / booster for operating LED stripes with high power and long strips By using the LED amplifier (also called booster or repeater), the RGBW signal can either be: directly after an RGBW control unit (star-shaped) directly after an RGBW LED strip (for extension) This is particularly helpful for larger projects, as you then do not need any additional RGBW control units. This saves you a separate controller with additional control for the other lines. Technical specifications: Input voltage: 12-36Vdc Output current: 4x 5A, acc. + Output power: 240W @ 12Vdc / 480W @ 24Vdc / 720W @ 36Vdc

LED-Dimmer 4 Channels 0-10V - for constant voltage, PWM dimming With this multi-channel LED dimmer, LEDs can be controlled, which are operated with constant voltage. It has 4 channels and achieves an output of up to 72W per channel in operation. There are also various control options, such as via control voltage or via potentiometer.  Overview:  4 channel dimmer for LEDs for constant voltag Controllable by: Control voltage 1-10 V Potentiometer 200 KO Electronic potentiometer   Technical data: Article number 800598 Type DU4P14-288 Input voltage 12..24 Vdc Output voltage 12..24 Vdc MMax. output power at 12 V 4x 36 W Max. output power at 24 V 4x 72 W PWM frequency 1500 Hz Ambient temperature max. 50 °C Dimensions 178x46x20 mm For further information please refer to the data sheet in the Download tab.

LED DMX 512 Converter / Splitter / Amplifier 1 to 4 The LED DMX 512 splitter divides the DMX bus into up to four DMX bus branches. The splitter works simultaneously as a signal amplifier. This is useful, for example, if individual DMX branches in a project are to be switched off.. The DMX bus should be terminated with a 120 Ohm resistor (not included). Technical data: Operating voltage 12Vdc Input signal 1x DMX 512 Bus Output signal 4x DMX 512 Bus Input 1x terminal block or 1x XLR Output 4x terminal block 4x XLR Operating current -30°C bis +55°C Dimensions (LxWxH) in mm ca. 192 x 80 x 41 Delivery scope 1x DMX 512Splitter Art.Nr. 767351213 incl. 12Vdc plug-in power supply unit Note: This device must be installed by an electrician! For further information please refer to the data sheet in the Download tab.

RGBW Radio Controller 4x 5A TRELIGHT Vega Experience the new TRELIGHT Vega series, which finally enables modern lighting control by radio and APP via Wifi/WLAN. With the TRELIGHT Vega radio controller here in the variant with 4 x 5A, you have the ideal basis for intelligent lighting control in your home. With the practical control via smartphone, tablet, wall control or remote control, you can conveniently control your home in up to 8 zones. The controller is also available as a variant with 4 x 8A. The TRELIGHT Vega series offers you a variety of control options for your LED light sources. You can optionally integrate your lighting technology in your own WLAN network and thus enjoy the full comfort of modern lighting technology. Thanks to the TRELIGHT Vega Bridge, a control option via Wifi/WLAN with your smartphone or tablet is possible. Simply via your router (WLAN router and TRELIGHT Vega Bridge is required) you can access the controller and control your lighting. Use the TRELIGHT Vega Memory Line or the Vega Multicomfort remote control for convenient control via radio. With the TRELIGHT Vega wall control RGBW or dual white, you also have the option of controlling your light sources directly on the wall. The TRELIGHT Vega radio controller RGBW CCT is the perfect choice for anyone looking for simple and convenient lighting control. Discover the TRELIGHT Vega series now and make your home a smart home. This multifunctional combinable system fulfils almost every wish. Control and dim Single color LEDs Dual white LEDs Tri-colour white LEDs RGB LEDs RGBW LEDs   Overview TRELIGHT Vega Serie  Controller      connection    operation via RGBW Wireless Controller 4x 5A RGBW Wireless Controller 4x 8A RGBW Wireless Controller 4x 5A DIN Rail RGB-Dual LED Controller 12-36Vdc/5x8A  TRELIGHT Radio                                 radio remote control 1 Zone radio remote control 5 zones RGB-Dual LED remote control with 4 zones RGBW Remote Control Pro Memory Line RGBW wireless wall controll                    optional via: Bridge: WLAN Bridge LAN/WLAN Bridge Tablet or smartphone via router WLAN, LAN, WAN For further technical data and information please refer to Downloads.

LED-Stripe Dimmer (Master/Slave) for constant voltage - with push button, permanent memory This button dimmer is designed for LEDs that are operated with constant voltage. The dimming process follows the master-slave principle so that additional devices can be operated synchronously as slaves on this LED dimmer. Another highlight is the permanent memory, which saves the last set brightness even in the event of a power failure.  Further features: With permanent memory (dimming level is memorized even at power-off) Controlled by push button (signal cable max. 3 m) Description of functions: Press once: switch On resp. Off Press and hold: Brighter resp. Darker Synchronous operation of other devices as slave Soft start  Note: Synchronizations cable: 030409   Technical data: Article number 800684 Type DUXSM14-200PM Input voltage 12..24 Vdc Output voltage 12..24 Vdc Max. output power 12 V 100 W Max. output power 24 V 200 W PWM frequency 240 Hz Ambient temperature max. 70 °C Rated maximum temperature 95 °C Dimensions 112x41x20 mm Further information can be found in the data sheet in the Download tab..

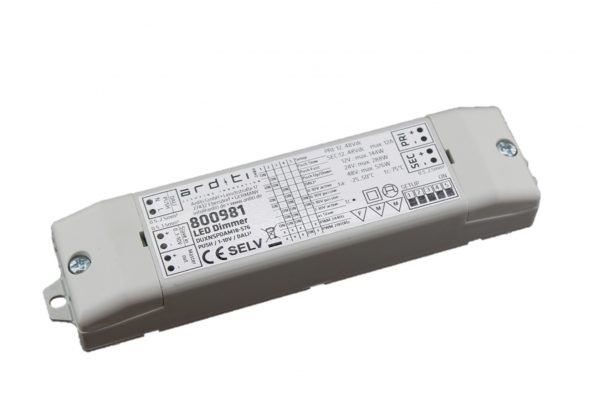

LED-Dimmer 144W to 576W - for constant voltage, with push button & DALI control For LEDs that operate at constant voltage, this is the ideal dimmer. It has a large number of control options, such as an external button, control voltage or DALI control. The different operating modes of the LED dimmer are to be set by dip-switches and jumpers.  Further features: LED dimmer is controllable by: DALI² LED dimmer for constant voltage Push button (for SELV, or 230 Vac, galvanically seperated from SELV; with permanent memory) Control voltage 0-10V and 1-10V Slave mode Operation modes (to be set with dip switches and jumpers before power-on): Slave Set 1: To be set with 800980 and 800981 as Master ON/OFF: Press one: on/off PUSH: as ON/OFF; press and hold: brighter and darker, at max/min level: dimming is reserved. Min..Max: 10 seconds PUSH FAST: as PUSH; but Min..Max: 5 second PUSH UP/DOWN: as PUSH FAST; but stop at max. or min. DALI²: Controlled by DALI, at absence of DALI signal: dim level 100%. Do not use with ABB DALI controllers! 0-10 V: Minimum at 0,5 V 1-10 V: Minimum at 1 V (Potentiometer 100 K? or electronic (potential free): J1, or potential carrying controller: J2) Slave Set 2: To be set with 800638 and 800632 as Master Slave synchronised via PWM control cable (recommended: shielded; max. 50 slaves)   Technical data: Article number 800981 Type DUXNSPDAM18-576 Input voltage 12..48 Vdc Output voltage 12..48 Vdc Max. output power at 12 V 144 W Max. output power at 24 V 288 W PWM frequency 244 Hz / 2000 Hz Control current max. 1,3 mA Ambient temperature -25..+50 °C Rated max. temperature 75 °C Dimenions 164×38×24,5 mm For further information please refer to the data sheet in the Download tab. History (precursor): 800581
