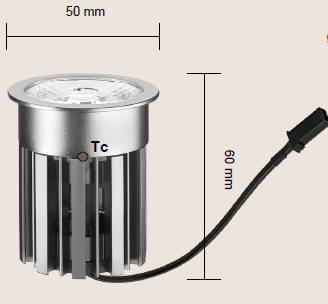

LED Downlight MR16 10W

LEDON Downlight FrameIn our product portfolio, we offer the perfect fittingly mounting frames for our LED downlights. For every 68mm hole the ideal mounting frame, square or round, in white, silver or brushed aluminium.The mounting of the appropriate LEDON LED downlightin the frame is quite simple. With a clearly hearable "click", the illuminante snaps into the frame and can be swivelled in two directions by 45 degrees. See installation instructions for details.  Description of the downlight frames part number EAN Code performance DF 90/BRUSHED-AL/SQ/S/CLICK-IN 28000524 9 009453 006271 brushed aluminium, square DF 90/BRUSHED-AL/RD/S/CLICK-IN     28000525 9 009453 006288 brushed aluminium, round DF 90/9016-W/SQ/S/CLICK-IN 28000526 9 009453 006059 white (RAL 9016), square DF 90/9016-W/RD/S/CLICK-IN 28000527 9 009453 006066 white (RAL 9016), round DF 90/9022-S/SQ/S/CLICK-IN 28000528 9 009453 006073 silver (RAL 9022), square DF 90/9022-S/RD/S/CLICK-IN 28000529 9 009453 006080 silver (RAL 9022), round Suitable for:LED Downlight MR16 10W (LEDON 28000240, 28000239, 29001008)LED Downlight MR16 10W Sunset Dimming (LEDON 29001072, 29001071,  29001070)Simply select the desired option for your LEDON mounting frame for your LEDON downlights.

Casambi Dimmer using phasecut CBU-TED High quality and compact phasecut-dimming CBU TED by Casambi. It can be replaced with traditional switch, only one installation in a switch case or a ceiling connection with lamps. Bluetooth dimmer for actuating LED and halogen lamps With your smartphone or tablet, you can dim lamps, actuate switches, create light scenes and form desired lighting effects. You need only a BT 4.0 (2,4 GHz) connection and the appropriate app from Casambi. The activation of the Casambi CBU-TED via BT 4.0 (2,4 GHz) saves complicated installation of cables. The Bluetooth wireless Mesh-Network allows to control several lighting units. You have lights or lamps and want instead a wall dimmer (trailing edge dimmer) to control the brightness from your mobile phone? A Casambi dimmer like this one works instead of a wall dimmer. Connect the Bluetooth dimmer between a switch and light lamps. Now you have a smart lighting control in your house. Additional highlight: Dimming the lights ALSO with your conventional light switch! That's how it works: 1. Switch on illumination with a usually switch. 2. Short (under 1 sec) off/on again. The illumination slowly dims up. 3. At the desired dimming value tip your swich again shortly off/on. The current dimming value is stored. 4. If the second tip off/on is not switched within 8 sec, the illumination dims up to 100%. All product by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products.  Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors. These functions does the freed Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Specifications of Casambi CBU TED Bluetooth Unit:  Input    Input voltage  85-240VAC (50-60 HZ)  Max. input voltage  0,65A  Standby power  < 300mW  Output    Max. power Incandescent and high voltage halogen bulbs: 150 W @ 230 VAC High voltage AC LED modules: 150 W @ 230 VAC Dimmable LED and CFL bulbs: 50 W @ 230 VAC Dimmable electronic transformers: 50 W @ 230 VAC max. Inrush Current 10 A(100ms) must be observed!  Minimum load requirement  1W  Max. current  0,65A  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  40,4 x 36,3 x 14,0 mm  Weight  15 g  Protection  IP20 For further technical data please refer to data sheet:   Compatible devices for Casambi App are: iPhone iOS 10, IPad iOS 10 and Android 4.4-Version (KitKat) and all higher versions of the 3 named devices. Download App for free: Casambi App in Appstore Casambi App iOS (iTunes) Casambi App for Android Casambi App Android (Google Play) .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} CBU-TED overview   In this video, we’ll provide a brief overview of the CBU-TED and its features and functions.

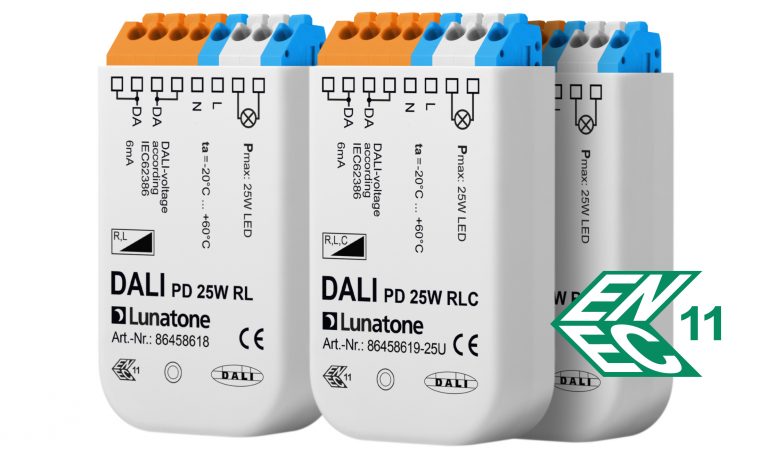

DALI Phase Dimmer 86458619 from Lunatone for Loads of 3W-25W The PD module is a DALI phase dimmer with a DALI control input which is suitable for  switching and dimming of light sources. It is especially suitable for controlling dimmable LED lamps with up to 25W, for example. Example use: Integration of 230V~ LED lights with Edison base in the DALI system, e.g. chandeliers with 7x 3W candle lamps. Are you looking for a DALI phase dimmer with a DALI input for bigger loads? Then choose one suitable for loads of between 10W-300W now. Product features DALI PD Doubled connection terminals for the straightforward looping through of the DALI bus. For loads of 3-25W (PD) The minimum dim level (MIN LEVEL) can be set via DALI Conversion of the DALI 8-Bit ArcPower level into an appropriate phase voltage with phase angle or phase alignment Module for integration of 230V light sources designated as dimmable in a DALI circuit Dimming of for example 230V LED retrofit lamps via DALI (Device Type 4 from firmware 3.0) The module represents a participant on the bus and can be addressed accordingly Technical data Supply: via DALI bus Typical power consumption: 6 mA Input: DALI Dimming: 1 % - 100 % Number of DALI addresses used: 1 Network voltage: 230 VAC Phase angle / phase alignment: 0° +- 180° Output load range: 3 W - 25 W Temperature range 0 °C - 50 °C Dimensions (LxWxH): 59mm x 33mm x 15mm Use / installation: Box Connection wires cross-section: 0.5 - 1.5 mm2 These versions are available with the following specifications: Leading edge control: 86458618-25 Trailing edge control: 86458619-25 Universal dimmer: 86458619-25U

Dimmer for mains voltage via CASAMBI light control TED housing protection class II with strain relief This small dimmer is excellently suited for convenient dimming by phase section via the CASAMBI app. Product specifications: Trailing edge dimmer for convenient operation with smart devices Configurable and versatile with the CASAMBI app Gateway is not required, but setup is possible For the operation of dimmable Incandescent lamps, mains halogen lamps LED lamps (retrofit LED) Compact Fluorescent Lamps (CFL Lamps) Mains LED modules Drivers for LEDs and 12 Vdc halogen lamps Only connect one type of load / one type of lamp! Not suitable for inductive loads such as wound transformers or electric motors! Some loads may flicker when dimmed, especially at low dimming levels. This can be avoided by using a profile with an excluded lower dimming range (profile 13-100% is preset). *Mains current: max. 0.43 A (including reactive current), inrush current max. 10 A (100 ms) Comparative tracking number: < 600. Degree of pollution: 1 Non-replaceable fuse F2A / 250 Vac. Integrated antenna (drawing: gray area, do not cover with metal housing) In built-in box or in independent box with terminal cover (protection class: 2); for permanent installation Technical properties: Article number 800820 Typ DEBT230-100 Input voltage 85-240VAC (50-60 HZ)  Radio signal 2,4..2,483 GHz; 4 dBm    *Mains power max. 0,43A Max. Output power at 110 Vac 1..50 W * Max. Output power at 230 Vac 1..100 W * Ambient temperature (ta) -20..+45 °C Max. Rated temperature (tc) 75°  Max. switch -on current 10A (100ms) Please note!   Mechanical data    Dimensions  75 x 38 x 22 mm  Weight  15 g  Protection  IP30   Casmabi Dimmer Class II using phasecut CBU-TED High quality and compact Casambi phasecut-dimming CBU TED. It can be replaced with traditional switch, only one installation in a switch case or a ceiling connection with lamps. Casambi dimmer for actuating LED and halogen lamps With your smartphone or tablet, you can dim lamps, actuate switches, create light scenes and form desired lighting effects. You need only a BT 4.0 (2,4 GHz) connection and the appropriate app from Casambi. The activation of the Casambi CBU TED via BT 4.0 (2,4 GHz) saves complicated installation of cables. The 2,4 GHz radio wireless Mesh-Network allows to control several lighting units. You have lights or lamps and want instead a wall dimmer (trailing edge dimmer) to control the brightness from your mobile phone? A Casambi dimmer like this one works instead of a wall dimmer. Connect the Casambi dimmer between a switch and light lamps. Now you have a smart lighting control in your house. An additional highlight: Dimming the lights with your conventional light switch: 1. Switch on illumination with a usually switch. 2. Short off and on again withing 1 second. The illumination slowly dims up. 3. Another short off and on again at the desired dimming level. The current dimming value is stored. 4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%. All product by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products.  Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors. Compatible devices and minimum requirements for Casambi App: Android  iOS min. Android 4.4 KitKat with BT 4.0 (2,4 GHz) from iPhone 4S recommended: Android 5.0 Lollipop with BT 4.0 (2,4 GHz) from iPad 3 or current Android versions from iPod 5 These functions does the freed Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Specifications of Casambi CBU ASD Unit:  Input    Input voltage  85-240VAC (50-60Hz)  Max. input voltage  0,65A  Standby power  < 300mW  Output    Max. power  150W @ 230VAC  70W @ 110VAC  Minimum load  1W  Max. current  0,65A  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  40,4x36,3x14,0 mm  Weight  15g  Protection  IP20 History (predecessor) of this proven phase cut dimmer Article 800680 For further technical data please refer to data sheet:

Phase Control Rotary Dimmer for LED, incandescent and HV halogen lamps Phase angle rotary dimmer/ trailing edge dimmer for powers of 5-100 W/VA or 15-450 W/VA Push-pull switch with soft paster Works absolutely noiseless Electronic short-circuit protection Flicker-free dimming by setting the basic brightness Screw terminals up to 2.5 mm No stand-by loss 230V AC, 50Hz Optionally available with cover frame (pure white - frame width 82 mm, rocker dimension 58.6 x 58.6 mm) and cover for rotary dimmer and potentiometer (pure white - rocker dimension 58.6 x 58.6 mm) Technical specifications Article No. 761-852.400 761-852.401 Load type Universal and LED retrofit Universal and LED retrofit Rated capacity 5-100 W/VA 15-450 W/VA LED 3 - 35 W 5 - 150 W Nominal voltage 230 V 230 V Frequency 50 Hz 50 Hz Method of operation Rotary / Pushbutton Rotary / Pushbutton Dimming mode Leading-edge Trailing-edge Mounting Flush Flush Method of Mounting Clamping / Screw Clamping / Screw Protection type IP20 IP20 Dimensions 70x70x35 mm 70x70x35 mm Diameter shaft 4 mm 4 mmSetting the basic brightnessIn case you recognize flickering in the lower dimming range or a poor switching-on performance while dimming a LED-lamp, you can adjust the minimum brightness in this range in order to eliminate these weaknesses. To adjust the basic brightness, set the actuating button to the left stop (minimum brightness). Now use a screw driver to set the desired basic brightness on the potentiometer. Pursuant to EN 60669-2-1 (8.6.102), the basic value should be set in such a way that the light visibly glows over the entire load range (at rated voltage 10%) when it is set to dark position.Setting the maximal brightnessShould the light flicker when it is set to maximum brightness, the maximum value for flicker-free operation can be set via the setting option transformer adjustment. To set that value, set the actuating button to the right stop (maximum brightness). Now use a screw driver to set the maximum possible flicker-free brightness on the potentiometer transformer adjustment.Safety instructionsWorks at the 230V mains must only be carried out by a specialist under consideration of the valid regulations (e.g. DIN-VDE). All kinds of work must only be carried out when the mains voltage is disconnected. Non-observance of these installationinstructions may lead to a damaged device, fire or other dangers. If the device is opened or tampered with,the warranty will expire.The observance of this instruction manual is part of our terms of guarantee.Installation and operating instructions can be found in the Download tab.

Phase section rotary dimmer for halogen and incandescent lamps Phase section rotary dimmer for powers of 20-315 W 230 V AC, 50 Hz For low-voltage halogen lamps (with electronic transformers) and incandescent lamps or HV halogen lamps Dimming principle: phase section Low noise, with temperature switch With pressure changeover switch Optionally available with cover frame (pure white - frame width 82 mm, rocker dimension 58.6 x 58.6 mm) and cover for rotary dimmer and potentiometer (pure white - rocker dimension 58.6 x 58.6 mm) Technical specifications Rated capacity 20-315W Load type universal Nominal voltage 230 V Frequency 50 Hz Dimensions 70x70x35 mm Diameter shaft 4 mm Dimming principle trailing edge Thermal fuse yes Pressure-way switch yes Method of operation Rotary / pushbutton Mounting flush Method of Mounting clamping / screw Protection type IP20Further information as well as the Manual can be found in the Download tab.
