LEDON-downlight mounting frames
Product information "LEDON-downlight mounting frames"
LEDON Downlight Frame
In our product portfolio, we offer the perfect fittingly mounting frames for our LED downlights. For every 68mm hole the ideal mounting frame, square or round, in white, silver or brushed aluminium.The mounting of the appropriate LEDON LED downlightin the frame is quite simple. With a clearly hearable "click", the illuminante snaps into the frame and can be swivelled in two directions by 45 degrees. See installation instructions for details.
| Description of the downlight frames | part number | EAN Code | performance |
|---|---|---|---|

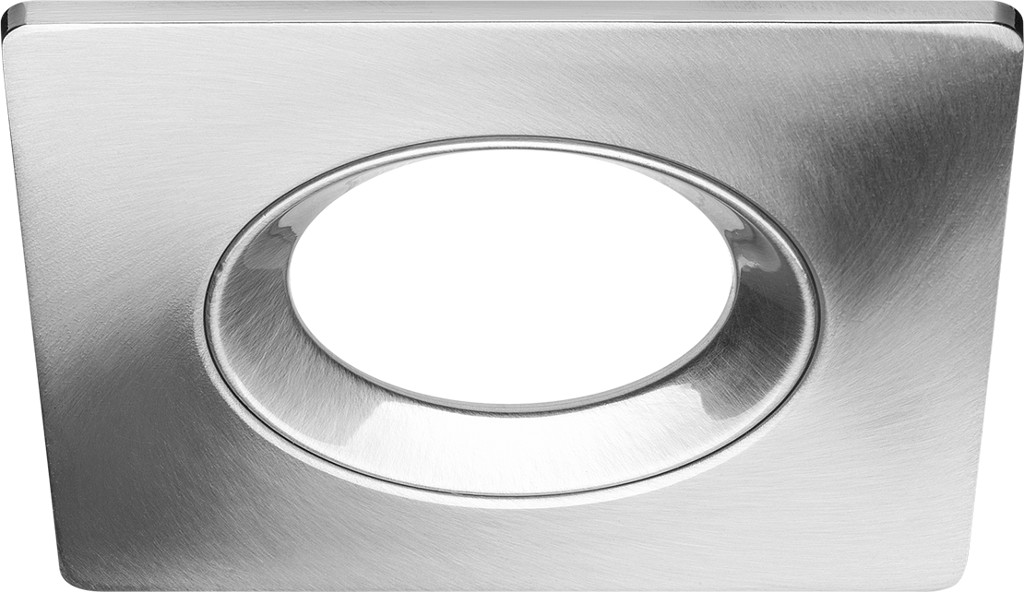

| DF 90/BRUSHED-AL/SQ/S/CLICK-IN | 28000524 | 9 009453 006271 | brushed aluminium, square |

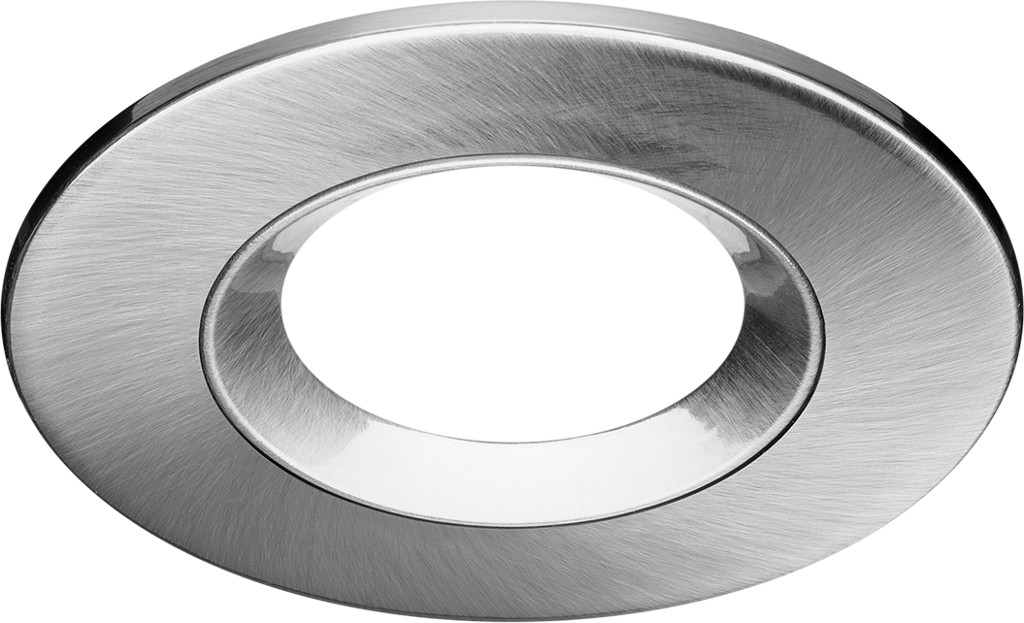

| DF 90/BRUSHED-AL/RD/S/CLICK-IN | 28000525 | 9 009453 006288 | brushed aluminium, round |

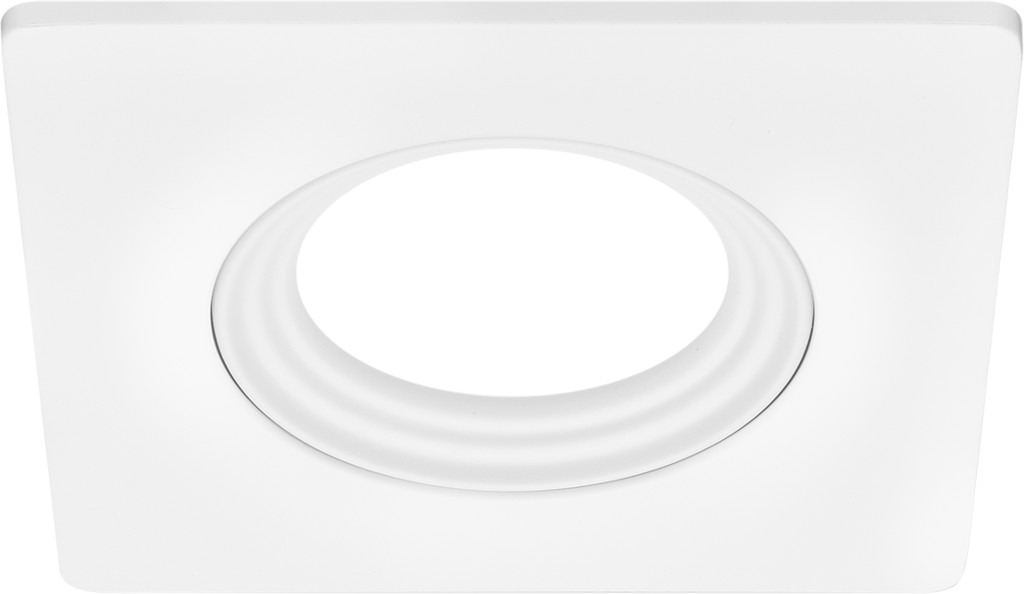

| DF 90/9016-W/SQ/S/CLICK-IN | 28000526 | 9 009453 006059 | white (RAL 9016), square |

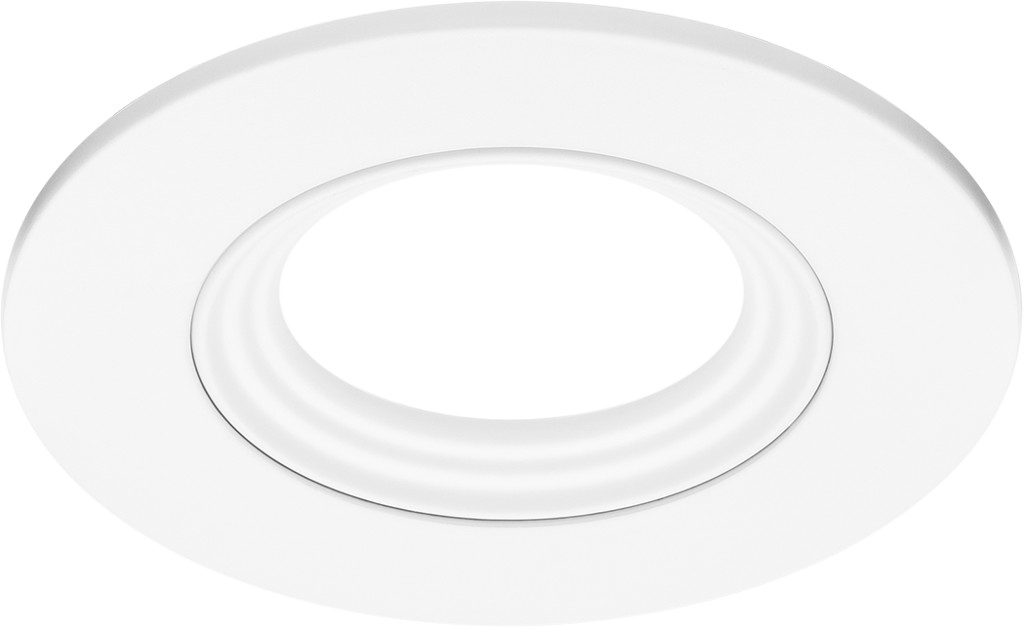

| DF 90/9016-W/RD/S/CLICK-IN | 28000527 | 9 009453 006066 | white (RAL 9016), round |
| DF 90/9022-S/SQ/S/CLICK-IN | 28000528 | 9 009453 006073 | silver (RAL 9022), square |
| DF 90/9022-S/RD/S/CLICK-IN | 28000529 | 9 009453 006080 | silver (RAL 9022), round |
Suitable for:
LED Downlight MR16 10W (LEDON 28000240, 28000239, 29001008)
LED Downlight MR16 10W Sunset Dimming (LEDON 29001072, 29001071, 29001070)
Simply select the desired option for your LEDON mounting frame for your LEDON downlights.
| Base: | GU10 (HV) |
|---|---|

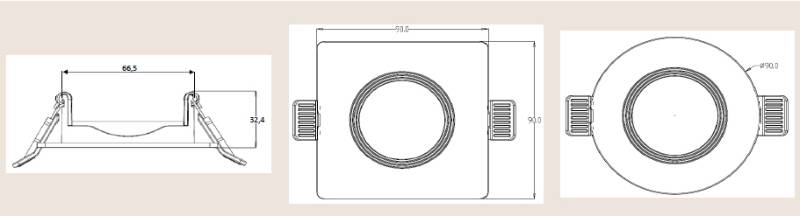

| Hole diameter: | 68mm |
| Lamp shape: | Spot MR16 |
Login
sw_similar
LED Downlight MR16 10W
€30.81*
LED Downlight by LEDON with 10W as MR16 Halogen replacement
Previous MR16 halogen lamps with 50W will be replaced by LEDON Downlight with only 10W power. LEDON
is successful with separating the LED lamp with it's offset LED driver. The otherwise integrated in the lamp
driver electronics is not thermall overused and thanked it by a long service life. That is the reason for a better
cooling. Which in turn ensure a long lumen maintance.
This LED Downlight LEDON is the most sustainable solution for replacement of 50W halogen
spotlight. (Saving 85%)
The delivered LED driver is also still compatible with conventional wall dimmers. So you can keep
the comfort of familiar dimming.
An overview 10W LED Downlight LEDON:
5 years warranty
Beam angle 38° and 60°
By their elegant design and variousity used in restaurant or hotels
Warm white light (2700K) with excellent color rendering index Ra = 90
Dimmable by triac or mosfet dimmer (wall dimmer)
600lm (halogen spotlight 50W)
High luminous flux (600lm) and an excellent light efficiency (60lm/W)
Technical data of LED DOWNLIGHT MR16 10W/38D/927 - 230V DIM
LED
LEDON COB
Manufacturer
LEDON
Socket
Plug connection
Light color / color temperature
Warm white/ 2700K
Beam angle
38° and 60° reflector optic lense
Luminous flux (60°) / total luminous flux
600 Lumen/ 650 Lumen
Nominal voltage
230V - 240V
Diameter x high
50mm x 56mm
Weight
104 Gram
Power
10 W
Light efficiency
60 lm/W
Energy efficiency class
A
Energy consumption
10 kWh/1000Std
Mount of switching cycle before premature lamp failure
100000
Ignition / start-up period to 100%
<0,5s
Mercury
0,0mg
Special features:
Excellent color rendering (color rendering index Ra=90)
Ra = 90
Excellent light quality innovative by LED technology
LED driver:
Diameter
55mm
High
30,3mm
Width
46mm
Length
135mm
Weight
72 Gramm
More technical data information you will find in Downloads.
Variants from €35.34*
LED Downlight MR16 10W Sunset Dimming
€41.13*
Attention!!! This article beam angle 38° | 60° is no longer produced. "A similar article can be found at the following link https://www.ledclusive.de/en/cob-led-downlight-6w-round-and-swiveling-133?number=ELRS6-DTW-7-T "
LED Downlight MR16 10W Sunset Dimming
Dimming like an incandescent lamp! The color temperature is changing during the dimming process, too:
At full brightness 2900K warm white to comfortable 2000K
The LED lighting is offered with three different beam angles: 38° or 60°
The accompanying driver fits perfectly with the LED spot and is also compatible with conventional
wall dimmers. So you can keep your comfort of familiar dimming.
By separating the LED bulb with detached LED driver, a thermal decoupling has succeeded.
The as usual integrated lamp driver is not as thermally overused and it's grateful to it by a long
service life. That is why LEDs can be better cooled, which in turn also ensures a long lumen maintenance.
In short, this LED downlight types by LEDON are the most sustainable solution which
replaces 50W halogen spotlights. (Saving of 85%)
Further advantages of LED-Downlight Sunset Dimming:
Changing color temperature 2900K to 2000K
Excellent color rendering index Ra = 90
Beam angle can be selected: Available with 38° or 60°
By its elegant design is this also versatile at home, restaurants or in hotels!
600lm (equivalent to 50W)
5 years manufacturer warranty
Please note: A stacking frame is absolutely necessary forceiling installation!
Technische Daten des LED DOWNLIGHT Sunset Dimming
LED
LEDON COB
Pin base
LEDON
Socket
Plug connection
Light color / Color temperature
2900K - 2000K
Beam angle
38° oder 60°
Luminous flux(60°)/ total luminous flux
600 Lumen/ 650 Lumen
Nominal voltage
220V - 240V
Diameter x high
50mm x 60mm
Weight
80 gram
Power
10 W
Light efficiency / Efficiency
60 lm/W
Energy efficiency class
A
Power consumption
10 kWh/1000Std
Count of switching cycle before premature lamp failure
100000
Initiation -/ acceleration time to 100%
<0,5s
Mercury
0,0mg
Special features:
Excellent color reproduction (color rendering index)
Ra = 90
Excellent light quality by using innovative technology
LEDON quality
LED-Treiber:
Diameter (diagonal)
55mm
High
30,3mm
Wide
46mm
Long
135mm
Weight
72 gram
.videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;}Dimming LED lamps with LEDON
Video on dimming LEDON LED lamps
Variants from €41.25*
