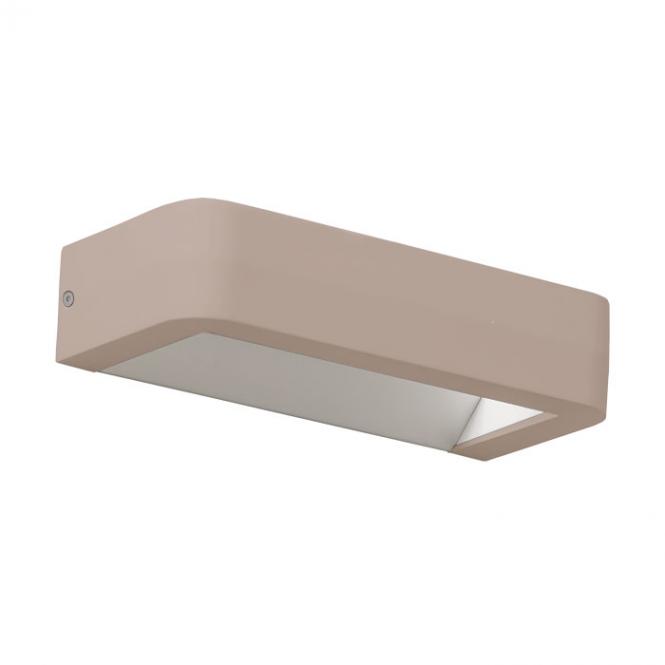

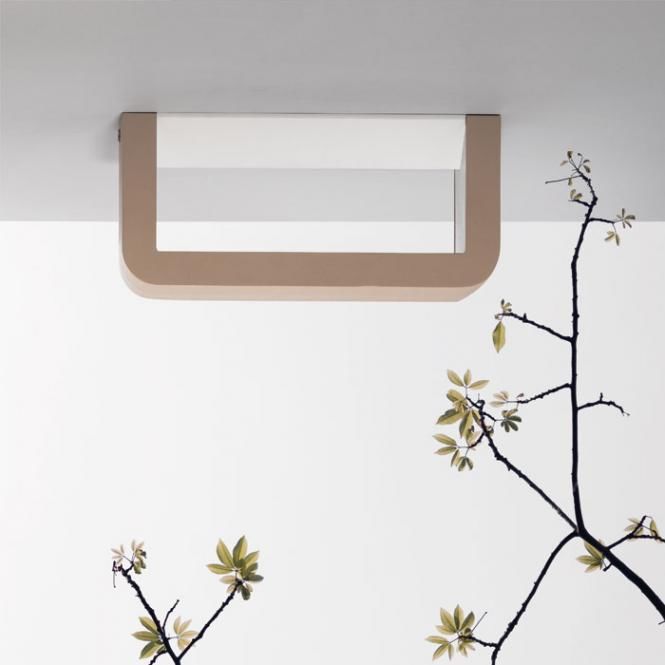

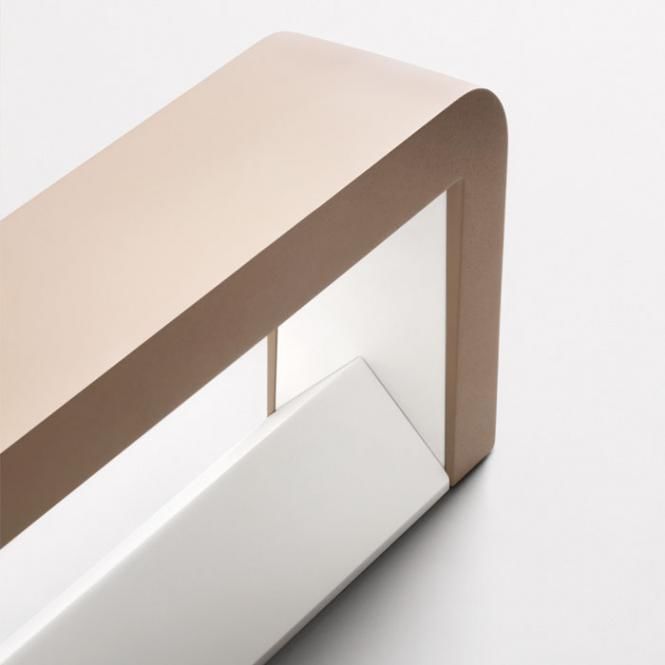

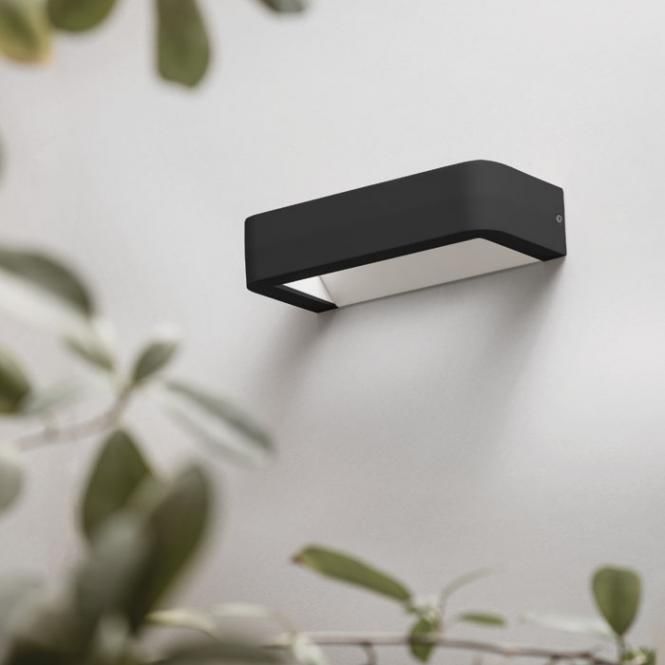

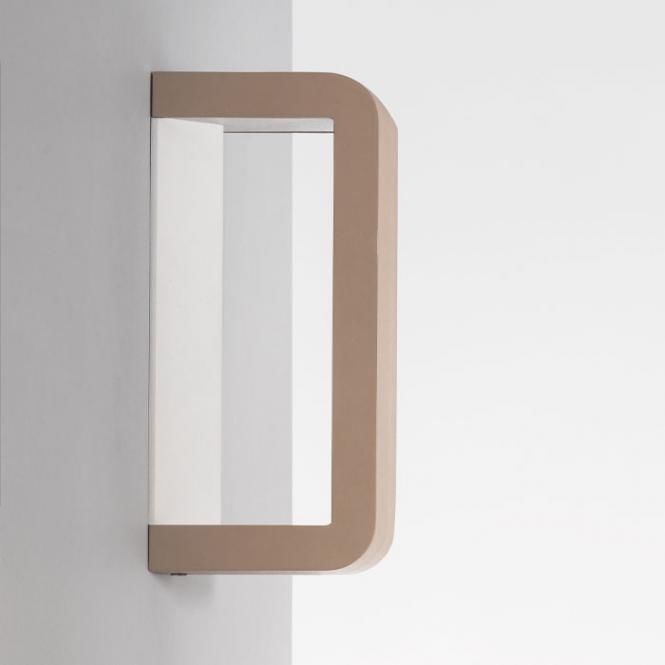

METOO LED Wall mounted luminaire 14 W
Product information "METOO LED Wall mounted luminaire 14 W"
Dimmable LED wall mounted luminaire METOO 14W 3000K - aluminium housing, IP65
This elegant wall-mounted luminaire convinces with its high degree of protection and its flexibility due to the possibility of trailing edge dimming. It has a sturdy housing made of die-cast aluminum and can be operated with a supply voltage of 220V to 240V. The warm white LED light is available with matching electronic power supply in three variations - with aluminum grey, anthracite and beige case colour.
Overview:
- LED wall mounted luminaire with die-cast aluminum housing
- Light emission is directed on both sides, optimal illumination
- Dimmable via trailing edge dimming
- Good colour rendering index (CRI > 80)
- Protection type: IP65 and protection class:1
- Incl. electronic power supply
Technical data:
| Housing colour | Aluminium grey | Anthracite | Beige |
| Article number | MET-14WW7 | MET-14WW6 | MET-14WW08 |
| Light up with | LED | ||
| System power | 14 W | ||
| Luminous flux | 652 lm | ||
| Colour temperature | 3000 K | ||
| Colour rendering index (CRI) | > 80 | ||
| Connection voltage | 220-240 V | ||
| System efficacy | 47 lm/W | ||
| Energy efficacy | A++ - A | ||
| Protection class | 1 | ||
| Test certificates | CE | ||
| Colour | metallized grey | graphite | Ibiza Sand |
| Material | die-cast aluminium | ||
| Version | Light emission directed on both sides | ||
| Protection type | IP65 | ||
| Dimensions | L=220*W=100*H=50 mm | ||
For further information, please refer to the data sheet in the download tab.
| Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| Color Temperature/Color: | 3000K, 4000K |
