TRACK DALI conductor railsystem with data-bus
Product information "TRACK DALI conductor railsystem with data-bus"
Conductor railsystem for all ALS DALI track lights, with data bus
Attention: Please note the compatibility of DALI spotlights with the respective track systems, as EUTRAC has changed its DALI track system (ONETRACK new, TRACK previously).
Conductor rail systems are ideal for the individual lighting of your premises for gastronomy, shops, exhibitions and much more.
Thanks to the integrated DALI data bus, all dimming and scene options or grouping of the track spotlights used are available.
Depending on the design of the busbar architecture, various electrical connectors for the function and various mounting accessories are provided.
You can access all of the options offered directly via the links below and via the Recommendation tab.
To simplify matters, we have created practical examples below to help you with configuration.

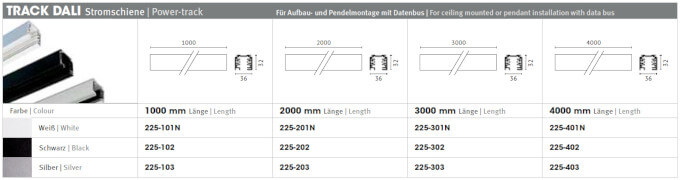

Technical features of the track system:
- Extruded aluminium profile
- Lengths from 1m to 4m selectable
- Ceiling mounted or pendant installation
- Traffic white RAL9016 or painted coated, or silver anodized
- 4 copper conductors (2,5 mm²) embedded in plastics + two data conductors (DALI, DMX, 0-10 V, KNX)
- Pre-punched slotted holes for installation
- Adaption of length by sawing
- 220-240 V max. 3 x 16 A
- Protection class: 1
- Test certificate: CE
- Weight: 1 KG/Meter
- Surface: Die-cast aluminum
- Dimensions: L=1000/2000/3000/4000mm / W=36mm / H=32 mm
- Large selection of connectors, feeders and mounting accessories
Planning example for the DALI track:
Example 1: Requirement: 3m power track black, surface mounting with DALI data bus, end feed
At least the following are required:
- 1x 3 phase rail 1m --> 225-102
- 1x 3 phase rail 2m --> 225-202
- 1x Longitudinal electrical connector --> 555212062
- 1x End feeder with data bus --> 555212012 (depending on the orientation of the protective conductor)
- 1x End cap for the other side --> SCH-012172
Example 2: Requirement: 2 x 90 ° arrangement of U-shaped busbar with partial lengths of 2m - 4m - 1m, white, feed in the middle of the 4m section, installation with DALI bus
- 1x 3 phase rail 1m --> 225-101N
- 1x 3 phase rail 2m --> 225-201N
- 1x 3 phase rail 4m --> 225-401N
- 2x Corner connector protection. inside --> 555212101N
- 1x DALI Central feeder --> 555252031N
- 2x End cap --> SCH-012171N
Note: The power rail with length of 4,0m is also available on request. (Use "Question to product?"-Button)
| Dimmable/Control: | DALI |
|---|---|
| Lamp shape: | Power rail |
