PI-LED Stripe up to 25,6W DALI/ZigBee/Casambi dimming

Product information "PI-LED Stripe up to 25,6W DALI/ZigBee/Casambi dimming"

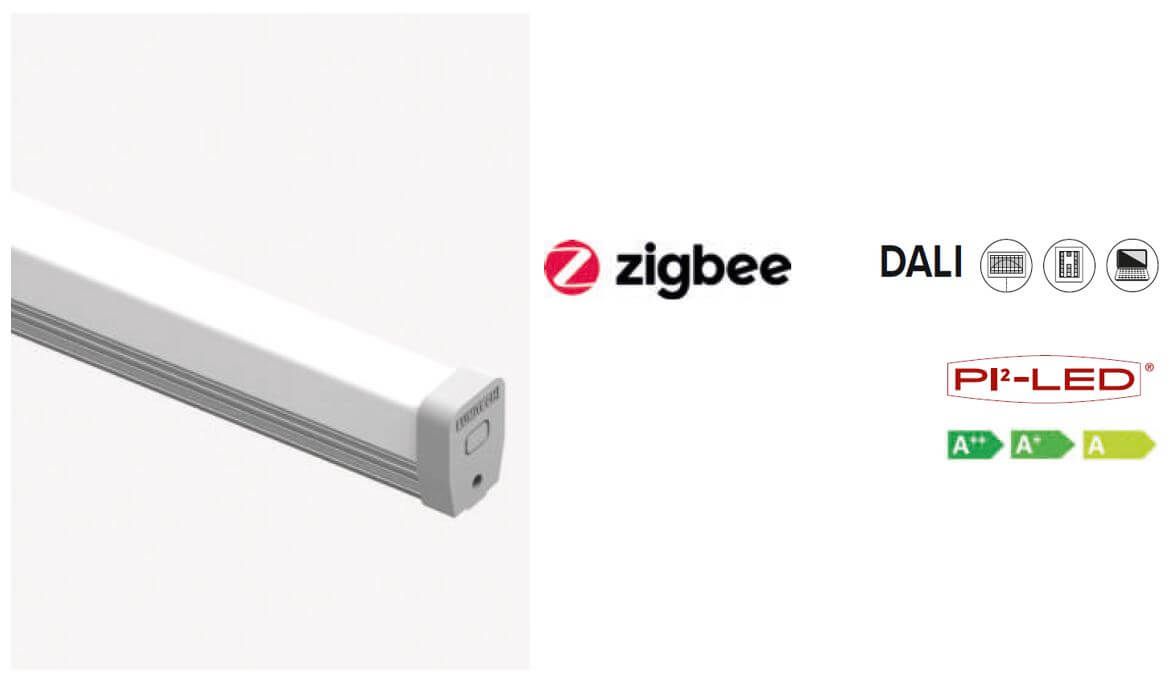

PI-LED LINE - high-quality aluminum strips up to 25.6W, 2750lm, IP20

This high-quality, robust LED strip impresses with its high efficiency with up to 120 lm / W. PI-LED LINE has a profile and end caps made of anodized extruded aluminum. This makes it ideal for various indoor LED lighting applications. By using high quality SMD LED modules, the strips are able to cover a large color temperature range from 1800 K to 16000 K.

Another highlight are the innovative control options of the PI-LED LINE:

Product overview and features:

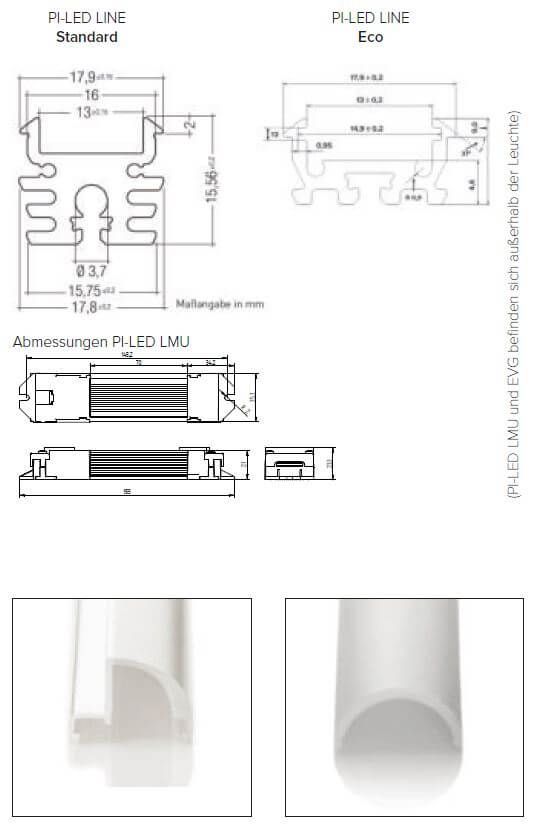

Profile made of anodized, extruded aluminum including end caps made of aluminum
High efficiency up to 120 lm / W
Suitable for various indoor applications with degree of protection IP 20
Range of functions: Color temperature 1800 K - 16000 K
Simple assembly using assembly caps, can be combined
All versions with PI-LED LMU 2.0:
- Modular Dimming / & quot; Camera Ready & quot;
- ZigBee 3.0
- Casambi
- DALI 1 registration and DALI DT8 (including over-the-bus updates)
- LMU housing with strain relief

Notes on the order data:

The PI-LED Lines are available in numerous designs and can therefore be used flexibly and universally. The bars are categorized as follows:

Execution : Standard and eco luminaires are available here.
Control : The most modern dimming and control options exist in the form of ZigBee 3.0 and DALI DT8 or Casambi
Length : Available in different, combinable lengths (depending on the version from 591 mm to 3401 mm)

Technical data PI-LED LINE:

Execution	Standard luminaire	Eco lamp
light source	SMD LED Module
Operating voltage	48 VDC
Performance (at 1153 mm)*	25.6 W	11.4 W
Luminous flux (at 1153 mm)*	2750 lm	1370 lm
Efficiency (at 1153 mm)*	107 lm / W	120 lm / W
Color temperature	1800 K - 16000 K
Control	ZigBee 3.0 DALI DT8 Casambi
Dimming range	1% - 100%
Degree of protection	IP20
Protection class	SKIII
Lifetime	L70 / B10 50000 h
Assembly	Mounting clips
Lengths	max. 2277 mm & nbsp;	max. 3401 mm & nbsp;

Note:
The products of the manufacturer Kiteo are individually tailored to suit your needs. Made especially for you according to your specification. This also explains the longer delivery time of 1-3 weeks depending on the workload.

*For more Information (e.g. other lenght), please refer to the data sheet in the download tab.

Application/IP-Code:	IP20 - IP44 (Indoor)
Color Temperature/Color:	2700K, 3000K, 3500K, 4000K, >5000K, Tuneable White
Dimmable/Control:	DALI DT8, Zigbee
Lamp shape:	Rigid (Stripes)
