CASAMBI interface configurable to " DMX ". For convenient control of operating devices and luminaires with DMX signal Input Controlled by a smart device (Apple, Android) with the CASAMBI app Configure different control modes (1..8 channels, TW, D2W, RGB(W)), before  coupling into the network: Change profile Gateway is not required, but setup is possible Integrated antenna / external antenna, do not cover Connection cable for primary side connection   Technical data:   Item number, Installation housing       808899 Type Installation housing IBTDMX8 Supply input 12....36VDC Radio signal 2,4..2,483 GHz; 4 dBmType Installation housing Signal output DMX max. 120mA Ambient temperature (ta) -20.. +45 °C Max. desisgn temperature (tc) 55 °C Dimensions 61 x 29 x23 mm ( without cable)   You can conveniently control all settings via the free CASAMBI app (Apple / Android): CASAMBI QR Code and links (here directly to the download) Casambi app in the app store Casambi app for Android For further information and connection diagrams of the Casambi interface, please refer to the data sheet (in the download tab).

4-channel DALI dimmer for 12V and 24V / DT8 mode 8006504-channel LED dimmer 800650: 4-channel LED dimmer for constant voltage control only by DALI with SELV potential, 4 channels with consecutive addresses, adjustable: ?Press a button for a long time until display flashes (address of first channel). ? press right/left to set ?Press long to save or address by DALI Control. 4-channel LED dimmer DT8 808660: 4-channel DALI² DT8 LED dimmer for LEDs for constant voltage. Suitable for control via CASAMBI interfaces in DT8 mode Controlled only by DALI with SELV potential DALI Select start address (4 consecutive addresses): - press right button (0..9) long until display flashes (address of first channel) - press right / left to set - press right long to save - or addressing by DALI Control Set operating mode: - Press both buttons long until display flashes, press one button to select working mode - nn: for single-colour LED strips, all channels the same - R9: for RGBW LED bands - 7c: for Tunable White LED bands - H4: for settings via XY-coordinate - Press and hold both buttons to confirm selection Specifications of the 4-channel LED dimmers: Product No. 808660 (DT8 Version) 800650 800651 (only on request) Type DU4DA8-14-480 4-channel DALI² DT8 LED dimmer   DU4DA14-480 4-channel DALI LED Dimmer DU4DA14-768 Input voltage 12..24 VDC 12..24 VDC 12..24 VDC Output voltage 12..24 VDC 12..24 VDC 12..24 VDC Output power at 12V 4x60 W4x60 W 4x60 W 4x96 W Output power at 24V 4x120 W 4x120 W 4x192 W PWM frequency 1500 Hz 2000 Hz 2000 Hz Control current max. 2 mA 1,5 mA 1,5 mA Max. Rated temperature tc 75 °C 75 °C 75 °C Dimensions 170 x 53 x 29 mm 178x46x20 mm 170x59x29 mm For more information please refer to the data sheets in the Download-Tab.

Battery-free Casambi remote control with 4 programmable buttons This elegant remote control is used to control Casambi devices. Thereby, the Casambi remote control allows a variety of dimming options, such as scene and color control. Another highlight is that the energy for the radio signal is generated by kinetic energy when the button is pressed. Due to the so-called energy harvesting, the Casambi remote control does not require a battery, and is also maintenance-free. Product Overview / Features: Batteryless remote control for controlling Casambi-enabled devices Dimming functions among 4 programmable buttons (simple dimming, scenes, color, ...) The Casambi remote control has a range of up to 10 meters in the same room Robustness to extreme external temperatures in a range of -20°C to +65°C No battery required and maintenance-free, as kinetic energy (button press) is used to generate the energy for the radio signal Using the free app from CASAMBI (Apple / Android) you comfortably control all settings (downloads below in the description) Regulate the brightness Configuring luminaires and luminaire networks Creating scenes and animations New devices are automatically detected Intelligent timer and gallery functions Set sharing options (only me, everyone, only with password, ...) Notes: It should be noted that the initial programming of the buttons of the Casambi remote control must be done via smart device (smartphone or tablet). For this, the Casambi app as well as an NFC interface are used. Technical data: Part number 808897 Type RC4EMEBTB Radio frequency 2.4..2.483 GHz; 0.4 dBm Range Up to 10 meters in the same room Estimated lifetime 50,000 actuations Ambient temperature -20..+65 °C Dimensions 120 x 52 x 19 mm Experience the new application versatility of CASAMBI. Through Casambi, you can conveniently control your lighting via smartphone or tablet, wirelessly and easily individually. The control runs via Casambi LE (low energy). If several Casambi modules are in use, a so-called "mesh network" is built up. Each additional Casambi module increases the range, because each module establishes a direct connection to all others.Your lights can now not only dim, turn on and off, but the timer function allows you to implement time controlled lighting. In the process, a maximum of 3 lights can be combined into a group, light scenes can be stored, and much more.The compact modules are mounted quite simply in front of the luminaire, so that no additional cables need to be laid. The setup is extremely simple, all components are automatically recognized in the network and in the app. CASAMBI QR code and links: Casambi App in App Store Casambi App for Android Selection of introductory videos for CASAMBI: What CASAMBI can do! First steps Set up scenes Set up XPRESS switch You can find many other supporting videos about Casambi at YouTube . For more information, please refer to the data sheet in the download tab.

Mini Tasterinterface 4 Fach mit Casambi Steuerung // 808921 Das 808921 Mini Interface von Arditi ist eines der neuen Produkte von Arditi. 4-fach Tasterinterface zur Steuerung von Casambi-fähigen Geräten innerhalb von CASAMBI Netzwerken komfortabel zu programmieren mit Tablet oder Smartphone (Apple, Android) mit der CASAMBI App 4 Eingänge für Taster (Schließer) frei programmierbar Taster müssen entsprechend Versorgungsspannung isoliert sein Geeignet zur Montage in Unterputzdose   Artikelnummer 808921 Typ RE2304NBT Versorgungseingang 220...240 Vac: 50..60HZ Funksignal 2,4..2,483 GHz; 4 dBm Stromaufnahme < 150 mA Umgebungstemperatur (ta) 0...+ 55°C Anzahl Tastereingänge 4 Leitungslängen der Tasteranschlüsse max. 200 cm Kurzschlusschutz ja Abmessungen 45 x 29 x 17 mm Weitere Informationen entnehmen Sie unserem Download Tab. Casambi - einfach erklärt Der Hersteller Arditi hat zum Thema eine ganze Videoreihe erstellt, in dem er alles rund um Casambi ausführlich erklärt. Hier ist der erste Teil der Reihe:

CASAMBI light control 5-channel This compact, highly efficient LED dimmer has a CASAMBI control function and enables convenient operation with a tablet or smartphone. Incandescent lamps, dimmable LED lamps and control gear for LEDs and halogen lamps can be put into operation with this 5-channel Casambi dimmer. However, it is not suitable for magnetic transformers. (cf. has an additional channel compared to the "PWM4")   Further product properties and Features: • Gateway is not required, but can be set up • Integrated antenna • Installation in flush-mounted box • Protection class 3 • Ideal for LED strips RGB + Tuneable White • up to 4A output current per channel • up to 7.5A total output current Adjustable profiles, operating modes: • 5 independent channels • RGB operation • RGB + W operation • RGB + TW operation • Tuneable White (TW) Setup and operating instructions: We recommend installing the free CASAMBI app. It is available in the "App Store" as well as in the "Play Store". This gives you the following options when using the 5-channel Casambi dimmer:   • Control of brightness, light color and color temperature • Configuring luminaires and luminaire networks • Creation of scenes and animations (color gradients) • Automatic detection of new devices • Intelligent timer and gallery functions • Define sharing options ("only me", "all", "only with password", …) Technical data for 808835:  Article number 808835 Type DEBT5PRO14-192 Supply input 12..24 Vdc Signal input BT 4.0 (2,4 GHz) lite @ smart device Radio signal 2,4..2,483 GHz; 4 dBm Max output current 4,0A per channel Max output power 12Vdc 50W per channel / 96W total Max output power 24Vdc 100W per channel / 192W total PWM-frequency 10 000 Hz Ambient temperature -20..+40 °C Max. Rated temperature 60 °C Degree of protection IP 20 Dimensions 103×68×31 mm For more information, please refer to the data sheet in the download tab. Casambi App at Appstore Casambi App for AndroidCASAMBI light control 5-channel

Elegant COB LED bar 8 W / m - 5m length, good colour rendering This flexible "chip-on-board" LED band, which has SMD LEDs, can be easily implemented in a wide variety of indoor applications.In addition, there is a particularly wide beam angle of 180 °, which - paired with very good colour rendering (CRI> 90) - ensures optimum illumination. The fact that the LED tape is self-adhesive and can be separated between the individual units further emphasizes its versatility and flexibility.The COB LED strips are available in versions with 12V and 24V constant voltage. In addition, there are versions with different colour temperatures in a range from 2200 K to 6500 K. The innovative COB technology in LED strips With the newly developed "Chip-On-Board" technology, a homogeneous beam quality can be achieved with LED strips, since the individual LED points are no longer visible. With a continuous light band, delicate, narrow lines of light can be created. This is not least due to an extremely densely populated LED strip (here: 320 LEDs / m). The use of COB LED strips as effect light or path and orientation lighting is particularly impressive. Product overview / features: 5 m flexible COB LED Strip with SMD-LED With 15 cm connection cable Self-adhesive (additional fixture is recommended Divisible between units, with solder pads Recommendation: Control the Ts-temperature at the solder point of an LED Bending radius in places with components min. 50 mm; attach without pressure Extensive illumination thanks to a large beam angle of 180 ° Densely mounted LED strip: 320 LEDs / m Installation note: It is advisable to attach the COB LED strips to a heat-conducting surface in order to achieve optimal cooling. When mounting on an electrically conductive material, care must be taken to insulate the connections. Technical data:  Art. no. for 12Vdc 808100 808101 808102 808103 808104 Type for 12Vdc OSC12-8-965 OSC12-8-940 OSC12-8-930 OSC12-8-927 OSC12-8-922 Art. no. for 24Vdc 808105 808106 808107 808108 808109 Type for 24Vdc OSC24-8-965 OSC24-8-940 OSC24-8-930 OSC24-8-927 OSC24-8-922 Power max. 8 W/m  Luminous flux typ. 800 l/m 750 l/m 700 l/m 700 l/m 650 l/m Colour temperature 6500 K 4000 K 3000 K 2700 K 2200 K Variance of colour temperature ± 300 K ± 250 K ± 200 K ± 150 K ± 150 K Colour rendering index (CRI) > 90 Viewing angle 180 ° Rated max temperature (tc)  60 °C Number of LEDs 320 /m Nominal input voltage 12 Vdc / 24 Vdc Length of a unit  50 mm / 100mm Max. length after feed-in 2,5 m / 5 m  Dimensions 5000 x 8 x 1,6 mm For more information, please refer to the data sheet in the Download tab.

Accessories for the Aria Neolighter Now there are suitable accessories for the Casambi Bluetooth radio switch Neolighter.Available in three different housing versions: Wood brick Stone brick Silicone brick This allows you to stylishly house your Aria Neolighter in a small design remote control.

Battery-powered surface-mounted vibrations sensor for CASAMBI networks The battery-operated built-on vibration sensor for CASAMBI sends a radio signal to the CASAMBI network in the event of a shock (sensitivity adjustable with a trimmer). The vibration sensor can be configured and used in a variety of ways on smart devices (with Apple or Android) with the CASAMBI app. So e.g. b. controlling lights, triggering scenes and much more is possible. The vibration sensor is compatible with "Evolution" networks. The CASAMBI vibration sensor is available in the colours lightgrey black Specifications - 808973 - 808974 power input 3 Vdc radio signal 2,4..2,483 GHz; 4 dBm Max. range / outdoor max. 14 m, 70° horizontal, 128 Zonen30 m / 50 m battery CR2032 ambient temperature -20..+50 °C Degree of protection IP 20 dimensions 71 x 37 x 22 mm Advantages: wireless installation battery powered Battery included Easy to use: Changing the battery: Press in the long sides, lift off the cover (unscrewing not required) For decoupling: Microswitch behind hole in housing with metal pin or similar. push i

Casambi wall switch without batteries General information about these switches: Radio switches for controlling Casambi devices have up to four freely programmable buttons Battery-free, as the energy is generated in an electrodynamic energy generator by pressing the button Radio switch is maintenance-free Due to the ability to be without batteries, it can be flexibly mounted The middle section can be used in frames from other switch series of the frame size 55x55mm (Jäger Direkt, Mertens, Gira, etc.) Setup and operating instructions: Initial programming must be done via tablet with NFC interface or smartphones with Android operating system For installation: Set network mode to "balanced" After successful setup with Android devices, the switch can also be managed and programmed with iOS systems Technical data for the Casambi wall switch: Variation 2 Buttons 4 Buttons Type RW2EBTW RW4EBTW Product number 808922 808924 Radio signal 2,402 - 2,48 GHz, Casambi Low Energy (BLE) Channels 2 4 Reach up to 10 meters in a room Lifespan > 50,000 switching operations Ambient temperature -20 - 65°C Dimensions 81 x 81 x 14mm Dimension middle part 55 x 55 x 14mm

Battery-powered surface-mounted magnetic sensor for CASAMBI networks The battery-operated built-on magnetic sensor for CASAMBI sends a radio signal to a CASAMBI network in the event of contact or loss of contact. The magnetic sensor can be configured and used in a variety of ways on smart devices (with Apple or Android) with the CASAMBI app. So e.g. b. controlling lights, triggering scenes and much more is possible. The magnetic sensor is compatible with "Evolution" networks. The CASAMBI magnetic sensor is available in the colours lightgrey black Specifications - 808723 - 808724 power input 3 Vdc radio signal 2,4..2,483 GHz; 4 dBm Max. range / outdoor max. 14 m, 70° horizontal, 128 Zonen30 m / 50 m battery CR2032 ambient temperature -20..+50 °C Degree of protection IP 20 dimensions 71 x 37 x 22 mm Advantages: •wireless installation •battery powered •Battery and magnet included ? •Easy to use: Changing the battery: Press in the long sides, lift off the cover (unscrewing not required) For decoupling: Microswitch behind hole in housing with metal pin or similar. push i

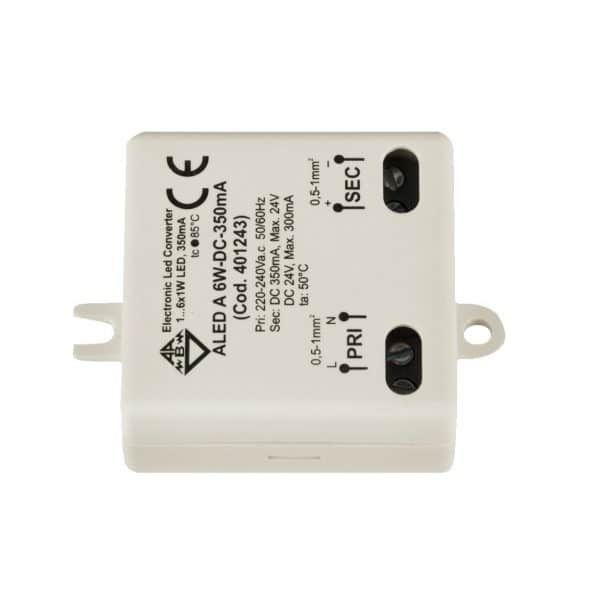

Built-in LED power supply with constant current and voltage 24V 350mA / 12V 700mA - for high power LEDs This LED power supply is ideal for the operation of high power LEDs. The module has screw terminals and is used both as a power supply with a constant output current and as such with a constant output voltage. Further features: Power supply built-in with constant output current for high power LEDs With screw terminals Protection against overheating, overload and short circuit Also usable as power supply with constant output voltage: Connect 12V / 24V 5,95W / 8,4W LEDs parallel Note: Do not insert switches into the secondary circuit! Only connect high power LEDs in series!   Technical data: Nominal output current 350 mA 700 mA Article number 401243 401244 Type NE352-7 NE701-7 Input voltage 220..240 Vac Frequecy 50..60 Hz Output power 1,05..8,4 W 2,1..5,95 W Operating output voltage 3..24 Vdc 3..8,5 Vdc Max. output voltage 24 Vdc 12 Vdc Power factor acc. to EN61000-3-2 0,6 Ambient temperature 50 °C Rated max. temperature 85 °C Thermal protection yes Overload protection yes Short circuit protection yes Dimensions 42,5x41x21 mm For further information please refer to the data sheet in the Download tab.

Versatile CASAMBI Interface -  IP20, DALI controllable, for DIN-rails Using this high-quality CASAMBI interface you are able to comfortably control selected smart applications with your mobile phone or tablet because of the module´s versatility. Therefore, the interface communicates with luminaires networks which can be controlled by the CASAMBI app. This includes automatic detection of new devices, lighting control and the creation of scenes and animations. In addition to that, intelligent timer and gallery funcitons aim to provide an even more flexible controlling. Especially, the interface refers to an application DIN-rails as well as relay and window shape control. Due to its protection level, the module is resistant against temperatures between -20°C and +45°C.    Product Overview (additional features): Interface to control: Gira Bus 1119 00 Konnex, Philips LCU2070, Creston C2N-UNI8IO, Lutron QSE-CI-WCI,  Relay and window shape control, single- and multichannel D-PWM ballast control. Free App from CASAMBI (Apple/Android): Lighting control (colour/dim level) Configuration of luminaires and luminaires networks Creation of scenes and animations (colour gradient) Automatic detection of new devices Intelligent timer and gallery function Protection settings of your luminaires network („just me“, „with password“,...) Especially for DIN-rail, when installed in control cabinets, reduced BT availability is expected. Hint: A gateway is not necessary but there is the possibility for a setup anyway. Technical Data:  Article number 808947 Type Jellyfish A.JF_A01 Power supply input 100..240 Vac, 18..30 Vdc Signal input DALI, 4 Kanäle, BT 4.0 (2,4 GHz) lite @ smart devices Signal output 4 channels 100mA and 30Vdc, controlling of the inductive load (with relays) is allowed Max. output power 100 mA, 30 Vdc Ambient temperature (ta) -20..+45 °C Rated max. temperature (tc) 65 °C IP protection level IP20 Dimensions 90x53x58 mm The data sheet located in the download tab provides more helpful information.

CASAMBI - radio LED dimmer UP - 300 Watt  This compact, high-efficiency LED dimmer has a CASAMBI control function and allows convenient operation with a tablet or smartphone. Light bulps, dimmable LED lamps and control gear for LEDs and halogen lamps can be put into operation with this CASAMBI module. However, it is not suitable for magnetic transformers. For attachment of the dimmer, the fastening device offers optimal conditions (wall, room corner, etc.). Further features: Trailing-/Leading Edge (several profile via app selectable) You can setup a gateway, but it is not necessary Integrated antenna Installation in flush-mounted box Advanced Adaptive Dimming Push button input for controlling For operation of light bulps, dimmable LED lamps and control gear for LEDs and halogen lamps Setup and operating instructions: It is recommended to install the free app from CASAMBI. It is available both in the "App Store" and in the "Play Store". This offers you the following options: Lighting control (colour/dim level) Configuration of luminaires and luminaires networks Creation of scenes and animations (colour gradient) Automatic detection of new device Intelligent timer and gallery function Protection settings of your luminaires network ("just me", "with password",...) Technical data:  Article number 808945 (Successor of 808949) Type DENBT230-300 Power supply input 220..240 V Signal input BT 4.0 (2,4 GHz) lite @ Smart device Radio signal 2,4..2,483 GHz; 4 dBm Frequency 50..60 Hz Power at 230 V 4..300 W Ambient temperature 0..+50 °C Rated Max. temp. 70 °C IP protection level 20 Dimensions 51,5 (71) x 47,5 x 31 mm Selection of introductory videos for CASAMBI: .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} CASAMBI Tutorial - General overview of functions   CASAMBI Tutorial - General overview of functions .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} CASAMBI Tutorial | Start / First Steps / Network Setup   You can find many more supporting videos about Casambi on YouTube. For more information, please refer to the data sheet in the download tab.

CASAMBI - radio blind control with 2 external buttons   Product characteristics and features: Controller for electric blinds Integrated antenna (drawing grey marking, do not cover with metal case) Also possible to control with 2 external push buttons (mains potential), do not connect another external mains! Maximum 1 motor per device Don't reverse direction of running motor With exchangeable Fuse T1.6, H250V, 5x20mm Setup and operating instructions:  It is recommended to install the free CASAMBI app. It is available in both the "App Store" and the "Play Store". This offers you the following options: Configuration of devices in networks Creation of scenes Automatic detection of new devices Intelligent timer and gallery functions Protection settings of your network („just me“, „all“, „with password“,...) Technical data: Article number 808939 Type IBTROL Input Voltage 230 Vac Frequency 50..60 Hz Signal input BT 4.0 (2,4 GHz) lite @ smart devices Radio signal 2,4..2,483 GHz; 4 dBm Alternative control 2 external push buttons (mains potential) Motor output power max. 345VA Ambient temperature (ta) -20..+50 °C Rated Max. temp. (tc) 60 °C IP protection level 20 Dimensions 143 x 39 x 27 mm Casambi App in Appstore Casambi App for Android

CASAMBI - radio Relay Control of 2 loads   Product characteristics and features: Controller to independently control 2 loads Integrated antenna (drawing grey marking, do not cover with metal case) Setup and operating instructions: It is recommended to install the free CASAMBI app. It is available in both the "App Store" and the "Play Store". This offers you the following options: Configuration of devices in networks Creation of scenes and animations Automatic detection of new devices Intelligent timer and gallery functions Protection settings of your network („just me“, „all“, „with password“,...) Technical data: Article number 808938 Type IBT2RE Input voltage 230 Vac Frequency 50..60 Hz Signal input Bluetooth 4.0 lite @ smart device Radio signal 2,4..2,483 GHz; 4 dBm Max. switching capacity 2x 28Vdc / 250Vac, 6A Ambient temperature (ta) -20..+50 °C Rated max. temp. (tc) 60 °C IP protection level 20 Dimensions 143 x 39 x 27 mm Casambi App im Appstore Casambi App für Android     Weitere Informationen entnehmen Sie bitte dem Datenblatt im Download-Tab.

Casambi CBU-PWM4 - Control your LED stripes on up to 4 channelsThe CBU-PWM4 is a Bluetooth controllable, Casambi able 4 channel PWM-dimmer for LED loads (constant voltage) as LED stripes and LED modules.The module has to be connected between the 12-24 VDC power supply and the LED load.With the CBU-PWM4 you can control your light system on up to 4 channels, which suits perfectly for applications with RGBW or tunable white. The maximum combined output current has an amount of 6A and can be split up between all 4 channels. The Casambi CBU-PWM4 is protected against overvoltages, overcurrents and short circuits.With the free Casambi App you are able to control the CBU-PWM4 module. The app is downloadable at Apple App Store and Google Play Store.Many different Casambi able products can be used as a simple direct control of your lights or even as a complete smart light control system with up to 127 units which team up automatically to build an intelligent light system.  The module is configurable for the following usages: Universal: mode of operation is configurable in the Casambi App (1-4 CH, CCT/TW, RGB or RGBW)RGBW: for controlling of LED stripes with RGBW (Plug&Play)RGB: for controlling of LED stripes with RGB (Plug&Play)TW: for controlling of CCT/TW LED stripes (Plug&Play)1-4 channels: for systems with separated channel controlling (CH1-4 are applicable) (Plug&Play)  Technical data: Bluetooth 4.0: Yes Input voltage: 12-24 VDC Input current: max. 6A Standby power: <0,3 W Output voltage: 12-24 VDC Output current: max. 6A (randomly dividable) Output power: max. 144 W @ 24 VDC, 72 W @ 12 VDC Dimmable: Yes Dimmtechnique Pulse width modulation (PWM) Protection class: IP20 Protection category: III Dimensions: 72,6 x 30,0 x 18,0 mm Ambient temperature: -20 °C to +45 °C The following Casambi PWM4 Modules are available: Article# Name Function 800385 DEBTPRO14-144 Universal 800387 DEBT14-14  1-Channel 800389 DE3BT14-144  RGB 800386    DE4BT14-144  RGBW 800388 DE2BT14-144   Casambi CCT 800382 DE2CHBT14-144  2-Channel 800383 DE3CHBT14-144 3-Channel 800381 DE4CHBT14-144 4-ChannelFree Casambi App download: Casambi App in Appstore Casambi App for Android   Video about Casambi PWM4-Dimmer for e.g. LED-Stripes

Casambi Dimmer Bluetooth Unit - dimming via app by DALI light Control The well-proven Classic variant of these Casambi radio modules allow for the usual effortless operation and are real bargain buys! Compact controller to integrate a DALI-compatible LED driver in your lighting unit. Control a lamp via smartphone with Casambi Bluetooth App for the Casambi Dimmer Unit... ... to create a perfect lighting control system Through a Bluetooth connection and appropriate App you can dim your Smart Device lamps, switch individual lights on and off, create light scenes and a desired mood in your own 4 walls. Available in 4 different versions: 1 Channel (sent via DALI-Broadcast) 2 Channel (sent to DALI addresses*: 0, 1) 3 Channel RGB (sent to DALI addresses*: 0, 1, 2) 4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3) (* DALI addresses of devices has to be programmed regarding this) Another Casambi highlight: Even with your conventional light switch you can dim and switch your lights. Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI are missing and you still want to dim. So you can easily adjust with Casambi reduce lights. 1. Switch on illumination with a usually switch. 2. Short off and on again withing 1 second. The illumination slowly dims up. 3. Another short off and on again at the desired dimming level. The current dimming value is stored. 4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%. All products by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products. Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors.   Compatible devices and minimum requirements for Casambi App: Android  iOS   min. Android 4.4 KitKat with Bluetooth 4.0  from iPhone 4S                            recommended: Android 5.0 Lollipop with Bluetooth 4.0  from iPad 3  or current Android versions  from iPod 5 These functions does the free Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Casambi App free download: Casambi App Android (Google Play) Casambi App iOS (iTunes)  Specifications of Casambi CBU ASD Bluetooth Unit:  Input    Input voltage  220-240VAC (50Hz)  Max. input voltage  1.2A  Standby power  220-240VAC (50Hz)  DALI Output    Bus voltage  12VDC  Current 7mA  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  56.5 x 35.8 x 22.3 mm  Weight  48g  Protection  IP20  Protection class  Built-in class II   Casambi App in Appstore Casambi App for Android

Casambi Dimmer Bluetooth Unit - dimming via app by DALI light control Compact controller to integrate a DALI-compatible LED driver in your lighting unit. Control a lamp via smartphone with Casambi Bluetooth App for the Casambi Dimmer Unit... ... to create a perfect lighting control system Through a Bluetooth connection and appropriate App you can dim your Smart Device lamps, switch individual lights on and off, create light scenes and a desired mood in your own 4 walls. Available in 4 different versions: 1 Channel (sent via DALI-Broadcast) 2 Channel (sent to DALI addresses*: 0, 1) 3 Channel RGB (sent to DALI addresses*: 0, 1, 2) 4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3) (* DALI addresses of devices has to be programmed regarding this) Another Casambi highlight: Even with your conventional light switch you can dim and switch your lights. Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI are missing and you still want to dim. So you can easily adjust with Casambi reduce lights. 1. Switch on illumination with a usually switch. 2. Short off and on again withing 1 second. The illumination slowly dims up. 3. Another short off and on again at the desired dimming level. The current dimming value is stored. 4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%. All products by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products. Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors.   Compatible devices and minimum requirements for Casambi App: Android  iOS   min. Android 4.4 KitKat with Bluetooth 4.0  from iPhone 4S                            recommended: Android 5.0 Lollipop with Bluetooth 4.0  from iPad 3  or current Android versions  from iPod 5 These functions does the free Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Casambi App free download: Casambi App Android (Google Play) Casambi App iOS (iTunes)  Specifications of Casambi CBU ASD Bluetooth Unit:  Input    Input voltage  220-240VAC (50Hz)  Max. input voltage  1.2A  Standby power  220-240VAC (50Hz)  DALI Output    Bus voltage  12VDC  Current 7mA  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  56.5 x 35.8 x 22.3 mm  Weight  48g  Protection  IP20  Protection class  Built-in class II   Casambi App in Appstore Casambi App for Android

Waterproof Casambi Interface for controlling DALI devices (ASD25, ASD60) This configurable Casambi module allows convenient regulation or control of multiple LED control gear with DALI signal input. This lighting control function is performed by a smart device (Apple, Android) with the Casambi app. Depending on the version of this Casambi interface, up to 25 or 60 DALI participants can be integrated into the network. Product Overview / Features: Waterproof interface for convenient control of up to 25 or 60 LED control gears with DALI signal input Configuration of the other interface types is possible before pairing to a network: change profile Casambi interface sends DALI broadcast (1Ch), 4 groups (DALI groups G0-G3), RGBW Gateway is not needed, but setup possible Integrated antenna Connection cables, 15 cm each Use the free app from CASAMBI (Apple / Android) to conveniently control all settings (downloads below in the description) Control brightness Configuring luminaires and luminaire networks Creating scenes and animations New devices are detected automatically Intelligent timer and gallery functions Set sharing options (only me, everyone, only with password, ...) Technical data: Article no. built-in housing 808893 808894 Type Built-in housing IBTPRODAC IBTXPRODA25C Power supply input 220..240 Vac; 50 Hz Alternative control None Button Radio signal 2.4..2.483 GHz; 4 dBm Signal output DALI, max. 100 mA; SELV DALI, max. 50 mA; SELV Ambient temperature -20.. +40 °C -20.. +50 °C Degree of protection IP 44 Dimensions (without cable) 38 x 38 x 26 mm 27 x 61 x 22 mm Experience the new application diversity of CASAMBI. Through Casambi, you can conveniently control your lighting via smartphone or tablet, wirelessly and easily individually. The control runs via Casambi LE (low energy). If several Casambi modules are in use, a so-called "mesh network" is built up. Each additional Casambi module increases the range, because each module establishes a direct connection to all others. Your luminaires can now not only be dimmed, switched on and off, but the timer function allows you to control the lighting according to time. A maximum of 3 lights can be combined into a group, light scenes can be stored, and much more. The compact modules are simply mounted in front of the luminaire, so there is no need to run additional cables. The setup is extremely simple, all components are automatically recognized in the network and in the app. CASAMBI QR code and links: Casambi app in the app store Casambi app for Android What CASAMBI can do! You can find many other supporting videos about Casambi at YouTube . For more information, please refer to the data sheet in the download tab.

Casambi Dimmer 2,4Ghz Radio Unit Class II - dimming via app by DALI light control Compact controller to integrate a DALI-compatible LED driver in your lighting unit. Control a lamp via smartphone with Casambi App for the Casambi Dimmer Unit... ... to create a perfect lighting control system Through a 2,4Ghz radio Connection and appropriate App you can dim your Smart Device lamps, switch individual lights on and off, create light scenes and a desired mood in your own 4 walls. Available in 4 different versions: 1 Channel (sent via DALI-Broadcast) 2 Channel (sent to DALI addresses*: 0, 1) 3 Channel RGB (sent to DALI addresses*: 0, 1, 2) 4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3) (* DALI addresses of devices has to be programmed regarding this) Another Casambi highlight: Even with your conventional light switch you can dim and switch your lights. Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI are missing and you still want to dim. So you can easily adjust with Casambi reduce lights. 1. Switch on illumination with a usually switch. 2. Short off and on again withing 1 second. The illumination slowly dims up. 3. Another short off and on again at the desired dimming level. The current dimming value is stored. 4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%. All products by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products. Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors. Compatible devices and minimum requirements for Casambi App: Android  iOS  min. Android 4.4 KitKat from iPhone 4S recommended: Android 5.0 Lollipop from iPad 3 or current Android versions  from iPod 5 These functions does the free Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Casambi App free download: Casambi App in Appstore Casambi App for Android    Specifications of Casambi CBU ASD Radio Unit:  Input    Input voltage  220-240VAC (50Hz)  Max. input voltage  1.2A  Standby power  220-240VAC (50Hz)  DALI Output    Bus voltage  12VDC  Current 7mA  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  56.5 x 35.8 x 22.3 mm  Weight  48g  Protection  IP20  Protection class  Built-in class II For more information please refer to the data sheet in the Download-Tab.

Casambi Gateway for Remote Control of Networks with 30m Range This gateway can be used to control up to 2 Casambi networks, i.e. networks that implement LED lighting applications with Casambi-enabled devices, for example. This Casambi gateway can also be conveniently controlled with the helpe of a smart device (tablet or smartphone) by using the gateway and sites functionality of the Casambi app. The corresponding remote access is done via Ethernet or WIFI. In addition to this remote control, the Casambi gateway is also used for remote diagnostics and network monitoring. Product Overview / Features: Casambi gateway to control max. 2 Casambi networks: Remote control Remote diagnostics Network monitoring HDMI cable and power adapter included Includes HDMI, LAN RJ45 and USB (2x) connectors Remote access via Ehthernet or WIFI The Casambi gateway has a range of up to 30 meters in a room Robustness to external temperatures ranging from 0°C to +50°C Use the free app from CASAMBI (Apple / Android) to conveniently control all the settings (downloads below in the description). Gateway and sites functionality Rules of brightness Configuring luminaires and luminaire networks Creating scenes and animations New devices are automatically detected Intelligent timer and gallery functions Set sharing options (only me, everyone, only with password, ...) Notes: The gateway runs on Android version 6, which is no longer supported by Android. Therefore, users are advised to consider all security aspects when placing this device in their network. A firewall can be implemented to secure the network. Any installation of the gateway is at the customer's own security risk. For further installation hints, please refer to the commissioning instructions of the Casambi Gateway in the Download tab. Technical Data: Part number 808941 Type GWLBT2N Radio frequency 2.4..2.483 GHz / 2.4..5.35 GHz; 4 dBm Range Up to 30 meters in a room Connections HDMI / LAN RJ45 / 2x USB Input voltage 100..240 Vac Frequency 50..60 Hz Ambient temperature -0..+50 °C Dimensions 108 x 104 x 28 mm Experience the new application versatility of CASAMBI. Through Casambi, you can conveniently control your lighting via smartphone or tablet, wirelessly and easily individually. The control runs via Casambi LE (low energy). If several Casambi modules are in use, a so-called "mesh network" is built up. Each additional Casambi module increases the range, because each module establishes a direct connection to all others. Your lights can now not only dim, turn on and off, but the timer function allows you to implement time controlled lighting. In the process, a maximum of 3 lights can be combined into a group, light scenes can be stored, and much more. The compact modules are mounted quite simply in front of the luminaire, so that no additional cables need to be laid. The setup is extremely simple, all components are automatically recognized in the network and in the app. CASAMBI QR code and links: Casambi App in App Store Casambi App for Android .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} CASAMBI Tutorial | General overview of functions (Video language is german)   CASAMBI Tutorial Video For more information, please refer to the data sheet in the download tab.
