Multi channel DALI constant current (CC) dimmer by Lunatone Every channel of the DALI constant current dimmer has its own DALI address Configuration and control via DALI For the direct control of LED modules with current input The outputs are dimmable from 1% to 100% Different variants for 350mA per channel in a small housing, further 1000mA per channel in a big housing are available Configuration via DALI cockpit and DALI USB interface Integrated short protection The following versions are available: Two channel versions, with 2 DALI addresses each (one address per channel) Up to max. 2x 350mA output currents: 89453845-350With a collectice positive pole: 89453845-350DEWith a collectice minus pole: 89453845-350GMDEUp to max. 2x 500mA output currents: 89453845-500With a collectice positive pole: 89453845-500DEWith a collectice minus pole: 89453845-500GMDEUp to max. 2x 700mA output currents:With a collectice positive pole: 89453845-700With a collectice minus pole: 89453845-700GMUp to max. 2x 1000mA output currents: With a collectice positive pole: 89453845-1000With a collectice minus pole: 89453845-1000GM  Three channel versions, with 3 DALI addresses each (one address per channel) Up to max. 3x 350mA output currentWith a collective positive pole: 89453846-350With a collective minus pole: 89453846-350GMUp to max. 3x 500mA output currentWith a collective positive pole: 89453846-500With a collective minus pole: 89453846-500GM  Up to max. 3x 700mA output currentWith a collective minus pole: 89453846-700GM Four channel versions, with 4 DALI addresses each (one address per channel) Up to max. 4x 350mA output currentWith a collective positive pole: 89453855-350With a collective minus pole: 89453855-350GMUp to max. 4x 500mA output currentWith a collective positive pole: 89453855-500With a collective minus pole: 89453855-500GMUp to max. 4x 700mA output currentWith a collective minus pole: 89453855-700GM  Other technical data: Output voltage range: 3V-45V (with 48V supply) Supply: 12VDC-48VDC resp. 56VDC Control input: DALI Temperature: -15 °C - 50 °C resp. -20 °C - 60 °C Protection type: IP20 Condition after return: depends on the DALI settings Max. cross wire section: up to 2,5 mm² Dimensions: Check the data sheet

Multi channel DALI constant current (CC) dimmer by Lunatone Every channel of the DALI constant current dimmer has its own DALI address Configuration and control via DALI For the direct control of LED modules with current input The outputs are dimmable from 1% to 100% Different variants for 350mA per channel in a small housing, further 1000mA per channel in a big housing are available Configuration via DALI cockpit and DALI USB interface Integrated short protection The following versions are available: Two channel versions, with 2 DALI addresses each (one address per channel) Up to max. 2x 350mA output currents: 89453845-350With a collectice positive pole: 89453845-350DEWith a collectice minus pole: 89453845-350GMDEUp to max. 2x 500mA output currents: 89453845-500With a collectice positive pole: 89453845-500DEWith a collectice minus pole: 89453845-500GMDEUp to max. 2x 700mA output currents:With a collectice positive pole: 89453845-700With a collectice minus pole: 89453845-700GMUp to max. 2x 1000mA output currents: With a collectice positive pole: 89453845-1000With a collectice minus pole: 89453845-1000GM  Three channel versions, with 3 DALI addresses each (one address per channel) Up to max. 3x 350mA output currentWith a collective positive pole: 89453846-350With a collective minus pole: 89453846-350GMUp to max. 3x 500mA output currentWith a collective positive pole: 89453846-500With a collective minus pole: 89453846-500GM  Up to max. 3x 700mA output currentWith a collective minus pole: 89453846-700GM Four channel versions, with 4 DALI addresses each (one address per channel) Up to max. 4x 350mA output currentWith a collective positive pole: 89453855-350With a collective minus pole: 89453855-350GMUp to max. 4x 500mA output currentWith a collective positive pole: 89453855-500With a collective minus pole: 89453855-500GMUp to max. 4x 700mA output currentWith a collective minus pole: 89453855-700GM  Other technical data: Output voltage range: 3V-45V (with 48V supply) Supply: 12VDC-48VDC resp. 56VDC Control input: DALI Temperature: -15 °C - 50 °C resp. -20 °C - 60 °C Protection type: IP20 Condition after return: depends on the DALI settings Max. cross wire section: up to 2,5 mm² Dimensions: Check the data sheet

Multi channel DALI constant current (CC) dimmer by Lunatone Every channel of the DALI constant current dimmer has its own DALI address Configuration and control via DALI For the direct control of LED modules with current input The outputs are dimmable from 1% to 100% Different variants for 350mA per channel in a small housing, further 1000mA per channel in a big housing are available Configuration via DALI cockpit and DALI USB interface Integrated short protection The following versions are available: Two channel versions, with 2 DALI addresses each (one address per channel) Up to max. 2x 350mA output currents: 89453845-350With a collectice positive pole: 89453845-350DEWith a collectice minus pole: 89453845-350GMDEUp to max. 2x 500mA output currents: 89453845-500With a collectice positive pole: 89453845-500DEWith a collectice minus pole: 89453845-500GMDEUp to max. 2x 700mA output currents:With a collectice positive pole: 89453845-700With a collectice minus pole: 89453845-700GMUp to max. 2x 1000mA output currents: With a collectice positive pole: 89453845-1000With a collectice minus pole: 89453845-1000GM  Three channel versions, with 3 DALI addresses each (one address per channel) Up to max. 3x 350mA output currentWith a collective positive pole: 89453846-350With a collective minus pole: 89453846-350GMUp to max. 3x 500mA output currentWith a collective positive pole: 89453846-500With a collective minus pole: 89453846-500GM  Up to max. 3x 700mA output currentWith a collective minus pole: 89453846-700GM Four channel versions, with 4 DALI addresses each (one address per channel) Up to max. 4x 350mA output currentWith a collective positive pole: 89453855-350With a collective minus pole: 89453855-350GMUp to max. 4x 500mA output currentWith a collective positive pole: 89453855-500With a collective minus pole: 89453855-500GMUp to max. 4x 700mA output currentWith a collective minus pole: 89453855-700GM  Other technical data: Output voltage range: 3V-45V (with 48V supply) Supply: 12VDC-48VDC resp. 56VDC Control input: DALI Temperature: -15 °C - 50 °C resp. -20 °C - 60 °C Protection type: IP20 Condition after return: depends on the DALI settings Max. cross wire section: up to 2,5 mm² Dimensions: Check the data sheet

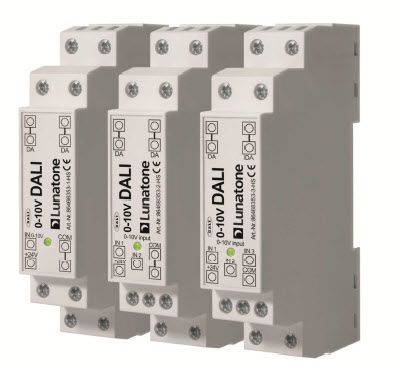

0-10V to DALI converter (1, 2 or 3-channel) for DIN rail mounting The compact module converts 0-10V control signals into DALI dimming levels The 0-10V input is passive, that is the reason why the module does not supply voltage. Thus, it is suitable for control with 0-10V analog signal The read-in 0-10V voltage is sent as a dimming value to the desired effective range in the DALI circuit To trigger the process, the 0-10V input voltage >1% is changed The module is powered by external 12V to 24V For operation, this module requires a DALI bus supply. (DALI PS1 or PS2) With the help of DALI-Cockpit and DALI-USB interface, the module can be programmed in terms of effective range, conversion characteristics and OFF function Between DALI bus and 0-10V input or 24V supply is a galvanic isolation The device is available with 1, 2 or 3 channels   Technical data of the 0-10V to DALI converter: Type 0-10V to DALI converter Product No. 86468353-1-HS 86468353-2-HS 86468353-3-HS Power supply 12V-24V Input current 5mA Input 1 x 0-10V/0,1mA 2 x 0-10V/0,1mA 3 x 0-10V/0,1mA Output DALI Ambient temperature -20°C to 60°C Assembly DIN rail Protection class IP20 Cross section connecting wires up to 2,5 mm² Dimensions 98 x 56 x 18mm For further details on the Lunatone 0-10V to DALI converter please see the manufacturer's data sheet (download tab)

Constant current dimmer via DALI for RGB/W LEDs (colour control) For the direct control of RGB/W LED modules with current input via DALI address (DT8).The DALI Dimmer RGB/W by Lunatone makes a colour control in accordance with the DALI specification for Device Type 8 possible, Colour Type RGBWAF and offers a separated control feature of brightness and colour (operating mode: Normalized, Unlinked). Lunatone offers 2 housing forms, with variants up to 350mA in a small housing, up to 1000mA in a big housing.Supply voltage 12V to 48V DC with integrated short protection.The configuration happens via DALI cockpit and DALI USB interface.  The following versions are available: RGB three channel versions, with a DALI address Up to max. 3x 350mA Output currentWith collective plus pole: 86458913-350With collective minus pole: 86458913-350GM Up to max. 3x 700mA Output currentWith collective plus pole: 86458913-700With collective minus pole: 86458913-700GM   RGBW four channel versions, with a DALI address Up to max. 4x 350mA output currentWith collective plus pole: 86458912-350With collective minus pole: 86458912-350GM Up to max. 4x 700mA output currentWith collective plus pole: 86458912-700With collective minus pole: 86458912-700GM   Other technical data: Control input: DALI Condition after return: depending on the DALI settings Supply: 12VDC-48VDC Output voltage range: 3V-45V (with 48V supply) Temperature: -20 °C - 60 °C Protection type: IP20 Max. wir cross-section: up to 2,5mm² Dimension (LxWxH): check data sheet

1-channel DALI LED Power Supply with DALI control input Product features Types for constant voltage (24V) and constant current (250mA, 350mA, 500mA, 700mA, 1050mA) available Control via DALI-address (DT6) SwitchDim2: level control via switching inputs without DALI Dimming range from 0.1%-100% (constant current operation) Supply voltage 230V AC Configuration with DALI-Cockpit softwaretool and DALI USB interface Over temperature shutdown, integrated short circuit protection User-friendly factory default settings Suitable for integration in luminaires and remote ceiling Technical data Supply: 220/240 V AC 50/60 Hz Idle power: < 0,3W Inrush current: >0,2 A Power factor: >0,95 Control input: DALI or SwichDim2 Number of DALI addresses: 1 Current consumption DALI: 2mA Temperature: -20 °C to +45 °C Protection class: IP20 Power on behaviour: Configurable via DALI: 0%-100% or last value Max. connecting wire cross section : 1,5 mm2 Dimensions (LxWxH): 120 mm x 41 mm x 22mm   Specification: Constant voltage (CV) Type: DALI 24V LED Power Supply CV DT6 Article number 89453849-XXX 24V Electrical data: Output voltage 24V+- 0,5V PWM max. output current 1A Constant current (CC) Type DALI LED Power Supply CC DT6 Article number 89453849-XXX 250  350  500  700  1050  Electrical data: Output current 250mA 350mA 500mA 700mA 1050mA Output voltage range 12-44V 12-44V 12-36V 12-32V 12-21V RECOMMENDATION: Care should be taken on keeping cable lengths between dimmer and luminaires (Led-Strings) as short as possible. This kind of installation will minimize the influence of voltage drops.ieren. For more information on the Lunatone 1-channel DALI, please refer to the data sheet in the Downloads tab.

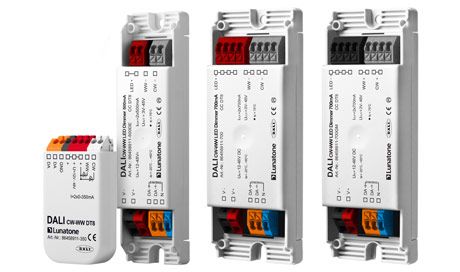

DALI constant current controller for the dimming or changing of colour temperature Product specifications   Usual dimming via constant current controller with 1 channel: DALI constant current controller for dimming The device has a DALI address (DT8) Supply voltage 12V to 48V DC Configuration via DALI cockpit and DALI USB interface Integrated short protection Changing of the colour via DALI constant current controller with 2 channels: All variants with 2 channels are for the direct control of dynamic white LED modules with current input, whose colour is adjustable from cool white to warm white.  The device has a DALI address (DT8) Supply voltage 12V to 48V DC Configuration via DALI cockpit and DALI USB interface Integrated short protection Different variants: 1 channel for the dimming of LEDs:350 mA const. output current: 89453844-350700 mA const. output current: 89453844-700  2 channels for the control of colour temperature tuneable-white LEDs:350 mA const. output current: 86458911-350500 mA const. output current: 86458911-500700 mA const. output current: 86458911-7001000 mA const. output current: 86458911-1000  Technical data Supply: 12 V DC - 48 V DC Maximum output current: depending on the model Output voltage range: depending on the model (check data sheet) Control input: DALI Temperature: depending on the model (check data sheet) Protection type: IP20 Condition after return: depending on the DALI settings Maximum wire cross-section: depending on the model (check data sheet) Dimensions (L x W x H): depending on the model (check data sheet)

DALI Expander Unit for extending a DALI circuit (with integrated bus power supply for 3 DALI sub-circuits) With the DALI Expander 3, three new DALI sub-lines can be created and supplied with power and information. Further DALI operating devices in the DALI subcircuits can be controlled via one DALI address each (Broadcast). Alternatively the DALI sub-lines can be controlled directly with Switch&Dim inputs. The DALI Expander 3 has an integrated DALI bus supply (200mA) for up to max. 3 times 25 DALI devices. The amount of DALI units as well as the line length (up to 300m) can be increased using the DALI Expander 3 Overview: Device for DALI-line expansion Control of several DALI-devices via 3 DALI-addresses 3 DALI outputs (DALI A,B,C) with integrated DALI power supply (50mA each) for powering control gear and control devices For the superordinate DALI circuit the DALI expander acts like 3 separate DALI control gear – 3 DALI addresses, one for each subnet (A, B, C) Forwarding commands received at the input (DALI IN) to the corresponding output (DALI A, B, C) broadcast Alternative control options of the DALI-output circuits via Switch&Dim-inputs (Broadcast). Group commands are passed from one to the other output circuits (cross function) Galvanic isolation between DALI-input and DALI-outputs Independent control gear for remote ceiling an integration in luminaires Type DALI Expander-3 Electrical data   Supply 100V-240V AC Max. output current 3 x 50mA (DALI) Current consumption DALI (DALI IN) 2mA Input/Output DALI / DALI Technical data   Ambient temperature -20°C bto +60°C Protection class IP20 Expected life time @tc 50.000 h Mounting Remote ceiling integration in class II devices Dimensions (L x W x H) 120mm x 41mm x 22mm For further information, please refer to the data sheet in the download tab.

DALI Expander Unit 89453847 for DALI System Expansion with Integrated Bus Supply The DALI expander can be used to set up your own DALI sub-circuit and supply it with energy and information. In this way, additional DALI operating devices in the DALI sub-circuit can be broadcast controlled via the address of the DALI expander. Alternatively, the DALI Expander can also control the DALI devices in the sub-circuit directly via its switch & dim button input. It has an integrated DALI bus supply (200mA) for 90 DALI devices in the sub-circuit. In addition to increasing the number of electronic ballasts in a DALI circuit, the expander can also be used to extend the cable length of usually up to 300m. Product Properties / Features: DALI expander unit for expanding a DALI circuit and controlling several DALI devices via one DALI address For the higher-level DALI circuit, the DALI expander behaves like a DALI ECG (DALI IN) with a DALI address Broadcast forwarding of the DALI commands received at the input (DALI IN) to the output (DALI OUT) Output (DALI OUT) with DALI power supply (200mA) for supplying DALI ECGs and DALI control devices Alternative control option for the DALI output circuit via the switch & dim input (broadcast) Galvanic separation between the DALI circuits Available as DIN rail module (for installation in protection class II devices) Independent control gear (for ceiling installation or luminaire installation) Technical data: Type DALI Expander Article number 89453847 89453847-S 89453847-HS Entrance: L, N Type of input Supply, mains voltage Identification of terminals L, N Input voltage range 100Vac ... 240Vac 110Vac ... 230Vac Input current max. 40mA (@ 120Vac), 20mA (@ 240Vac) Frequency 50Hz / 60Hz Power consumption max. 5,3W Switch-on ramp-up time 250ms Input: DA, DA Type of input DALI control input Identification of terminals DA, DA Input voltage range 9.5V ... 22.5V Current consumption DALI 2mA Entrance: L ', N Type of input SwitchDim control input - Identification of terminals L ‘, N - Input voltage range 230Vac - Frequency input voltage 50Hz / 60Hz - Control pulse length min. 40ms - Control pulse length long key press 500ms - Output: DA +, DA- Type of output DALI bus supply Identification of terminals DA +, DA- Output voltage range 12Vdc ... 20.5Vdc Guaranteed DALI output current 200mA Idle proof Yes Short-circuit proof Yes Environmental conditions: Transport and storage temperature - 20 ° C ... + 75 ° C Operating temperature - 20 ° C ... + 60 ° C Rel. Humidity 15% ... 90% rH, non-condensing General data: Assembly False ceiling installation DIN rail Max. Rated temperature 70 ° C 75 ° C Expected lifetime 50,000 h Protection class II Degree of protection (housing / terminals) IP40 / IP20 Dimensions (LxWxH) 120 x 41 x 22 mm 120 x 30 x 22 mm 98 x 17.5 x 56 mm For more information, please refer to the data sheet in the download tab.

DALI LED dimmer with constant voltage with 2, 3 resp. 4 separately controllable channels. Every channel of the DALI LED dimmer by Lunatone has it's own DALI address and can therefore be controlled independently. Input voltage of 12 to 48 V, depending on the model for connection currents up to 16A, 2-4 PWM outputs (16Bit).   Product specifications: Allows a separated control of 2, 3 resp. 4 PWM outputs via DALI Suitable for the control of constant voltage LED modules Every output is 1% - 100% dimmable Configuration via DALI cockpit softwaretool and DALI USB-interface LED-dimmer with 2, 3 resp. 4 separated channels Every channel has it's own DALI address Different housing variants depending on the type (check data sheet) Supply voltage 12V to 48V DC (depending on the type, check the data sheet) Max. connection currents of 4A, 8A, 10A or 16A depending on the type The maximum connection current can be spread on the channels arbitrarily, the sum current musn't exceed the connection current. Current / Channels 2Ch 3Ch 4Ch 4A 89453827 89453828 -- 6A 86459561-6 86459571-6 -- 8A 89453833 89453834 89453835 10A 86459561 86459571 86459560 16A 89453830 89453831 89453832 Technical data Supply voltage: Check the data sheet Control input: DALI Temperature: Check the data sheet Protection type: IP20 Condition after return: depends on the DALI configuration Max. wire cross-section: Check the related picture or the data sheet Dimensions (LxWxH): Check the related picture or the data sheet

DALI RM8/RM16/RM16-DE/RM16-CEL Module for controlling a relay contact via the DALI bus DALI Relay Module RM8/16/16-DE/16-CEL provides a relay contact controllable via the DALI bus which can be used to switch constant loads of up to 1 or 2 kVA. DALI RM16 is particularly suited for high starting current peaks up to 160 A; it is equipped with a changeover contact which is used as a relay contact. The RM8 is suited for starting current peaks of up to 80 A; the relay contact is designed as a normally open contact. A special feature of the switching actuator DALI Relay Module RM8/16/16-DE/16-CEL is that it maintains the switching status of the relay in the case of a bus supply failure. Any switch-on and/or switch-off delay can be programmed via the DALI bus. Thus, loads without DALI input can be incorporated in the DALI system.   Product features Compact relay module for the direct control of 230 VAC loads via DALI Simple incorporation of loads without DALI input into a DALI circuit; the loads can be switched on and off using DALI commands Different variants available, suitable for your application requirements Possibility of configuring switch-on and switch-off delays using the parameters FADE RATE and FADE TIME DALI Cockpit is the DALI configuration tool of Lunatone which is available for free download; it can be used for configuration DALI Relay Module RM 8/16/16-DE/16-CEL is supplied by the DALI bus; no further supply required RM16 is particularly suitable for high starting current peaks up to 160 A The interface represents a bus user and can be addressed accordingly Available versions: DALI RM16 for socket installation (manufacturer's number: 86458629) V-1605098 Maximum nominal load and nominal current: 1000VA / 8A Maximum starting current peaks: 160A Relay contact type: 1 changeover contact Switching cycles at 8A/250VAC, resistive: 3x104 DALI RM8 for socket installation (manufacturer's number: 86456944 (Previous 86458675) V-1605099 Maximum nominal load and nominal current: 1000VA / 8A Maximum starting current peaks: 80A Relay contact type: 1 normally open contact Switching cycles at 8A/250VAC, resistive: 3x105 DALI RM16 for ceiling installation (manufacturer's number: 86458629-DE) V-1623447 Maximum nominal load and nominal current: 2000VA / 16A Maximum starting current peaks: 160A Relay contact type: 1 changeover contact Switching cycles at 16A/250VAC, resistive: 3x104 DALI RM16 with Wieland plug-in contacts (manufacturer's number: 86458629-CEL) V-1626583 Maximum nominal load and nominal current: 2000VA / 16A Maximum starting current peaks: 160A Relay contact type: 1 normally open contact Switching cycles at 16A/250VAC, resistive: 3x104 Other technical data: Power supply: via DALI-Bus Typical current consumption: 2,7mA Inputs: DALI Used DALI addresses: 1 Switch-on / switch-off voltage relay contact: 250 VAC / 400 VAC Maximum permissible switch frequency: 1Hz Temperature: 0 °C - 45 °C Protection class: IP20 Connecting wires profile: 0,5 - 1,5 mm2 History (Previous) Item RM8 86458675 from Article 86456944

DALI RGBW dimmer resp. DALI RGB dimmer (constant voltage)The DALI RGBW dimmer with PWM by Lunatone makes a direct control of luminaires with RGB- or RGBW-Input possible. With the pure DALI RGB dimmer model, luminaires with RGB-input are controllable.For this purpose four resp. three PWM-outputs (16 Bit) each have one DALI address (DT8). Depending on the type, a maximum of four power connections 4A, 8A, 10A or 16A are possible. Product specifications: The device is controlled through a DALI-adress (Device Type 8) LED-dimmer with RGBW-colour control Separated control feature of brightness and colour (Operation type: normalized, unlinked) Controlling of four resp. three PWM-outputs for the colors red, green, blue and white (RGBW dimmer) via DALI (DT8, colour representation RGBWAF) Configuration via DALI-Cockpit Softwaretool and DALI USB-Interface Suitable for the control of constant voltage LED-modules Depending on the model, housingvariations with various dimensions are available Supply voltage 12V or 24V DC, 48V version by request Connection currents of 4A, 8A, 10A or 16A and different models are available individually The maximum output current can be spread arbitrarily on the different colour channels, the sum current though, must not exceed the connection current. The following versions are availableRGB-versions, with 3 PWM-outputs (16-Bit) up to a connection current of 4A: 89453837up to a connection current of 8A: 86458514up to a connection current of 10A: 89453839up to a connection current of 16A: 89453842RGBW-versions, with 4 PWM-outputs (16-Bit) up to a connection current of 8A: 86458509up to a connection current of 10A: 89453840up to a connection current of 16A: 89453843 Other technical data: Supply: 12VDC-24VDC, 48V by request Control input: DALI (Device Type 8) Dimming: 1 % - 100 % Temperature: -15 °C - 50 °C Protection type: IP20 Condition after return: depeding on the DALI-configuration Max. wire-cross section: 2,5 mm2 Dimensions (LxWxH): 40x28x14 mm resp. 59x33x15 mm. 120x30x21 mm

PWM tuneable white dimmer via DALI control Device type 8 LED dimmer (CV) for tuneable white LED modules The Tuneable White Dimmer makes a direct control of dimmable luminaires whichs color tone is adjustable from cold white to warm white. The dimming happens via pulse width modulation (PWM), which is defined through the DALI control input. Supply voltage 12V or 24V DC, 2 PWM outputs (16 Bit), 1 DALI address (DT8), depending on the model max. connected currents of 4A, 8A, 10A or 16A. The module is available in 3 housing variants (40x28x14 or 59x33x15 or 120x30x60) also deliverable with a current limit: 200mA / 350mA / 700mA / 900mA The module is also deliverable as assembly for a direct installation of luminaires. Versions: DALI Tuneable White Dimmer 4A (89453836) DALI Tuneable White Dimmer 8A (86458673) DALI Tuneable White Dimmer 10A (89453838) DALI Tuneable White Dimmer 16A (89453841)   Product specifications LED Tuneable White Dimmer with color temperature control For direct control of dynamic white LEDs with a mutual positive terminal, whichs color tone is adjustable from cold white (CW) to warm white (WW) The device has a mutual DALI address for both channels (Device Type 8) Color temperature control according to the DALI specification for Device Type 8, Colour Type Tc Suitable for the control of constant voltage LED modules Supply voltage 12V or 24V DC Configuration via DALI cockpit software tool and DALI USB interface 3 housing variants depending on the model Depending on the type max. connected currents of 4A, 8A, 10A or 16A The maximum connected current can be spread on the channels arbitrarily, the sum current musn't be exceeded Specifications

DALI 1 channel LED dimmer (CV) controllable via DALI or switch dim Input voltage of 12V to 48V DC, available in different housing variations, depending on the model for connected currents up to 16A, 1 PWM output (16Bit). Output controllable via DALI or switch dim. Product specifications: 1 channel LED-dimmer with switch dim or DALI Makes the control of constant voltage-LED-modules possible Control via DALI or via conventional button (integrated switch dim - function) The output is dimmable from 1% to 100% Supply voltage 12V to 48V DC Configuration via DALI-cockpit software tool and DALI USB-interface Depending on the model connecting currents of 4A, 6A, 8A, 10A or 16A The maximum connecting current mustn't be exceeded, the best effiency is achieved at an even electricity distribution on the outputs Technical data: Type DALI 1Ch LED Dimmer CV Article number 89453826 86459556 86459572 89453829 Electrical data: Supplx voltage Vin 12V-28VDC 12VDC-48VDC Max. input current Iinmax 4A 8A 10A 16A Control input DALI SwitchDim 48V DALI SwitchDim2 (mains voltage) DALISwitchDim (mains voltage) Current consumption DALI 2mA Number DALI addresses 1 Standby power consumption (12V) 120 mW Technical data: Power on behaviour configurable via DALI: 0%-100%, last value Storing and transportation temperature -20°C … +75°C Ambient temperature -20°C … +60°C expected lifetime (at Tc<=75°C) >100000h Protection class IP20 Max. connecting wire cross section 1.5 mm2 2.5 mm2, DALI/SwitchDim: 1.5 mm2 Dimensions (LxWxH) 40x28x14 mm 59x33x15 mm 120x30x22 mm Housing/mounting Back box Remote ceiling For further information please refer to the data sheet in the Download tab.
