Multi channel DALI constant current (CC) dimmer by Lunatone Every channel of the DALI constant current dimmer has its own DALI address Configuration and control via DALI For the direct control of LED modules with current input The outputs are dimmable from 1% to 100% Different variants for 350mA per channel in a small housing, further 1000mA per channel in a big housing are available Configuration via DALI cockpit and DALI USB interface Integrated short protection The following versions are available: Two channel versions, with 2 DALI addresses each (one address per channel) Up to max. 2x 350mA output currents: 89453845-350With a collectice positive pole: 89453845-350DEWith a collectice minus pole: 89453845-350GMDEUp to max. 2x 500mA output currents: 89453845-500With a collectice positive pole: 89453845-500DEWith a collectice minus pole: 89453845-500GMDEUp to max. 2x 700mA output currents:With a collectice positive pole: 89453845-700With a collectice minus pole: 89453845-700GMUp to max. 2x 1000mA output currents: With a collectice positive pole: 89453845-1000With a collectice minus pole: 89453845-1000GM  Three channel versions, with 3 DALI addresses each (one address per channel) Up to max. 3x 350mA output currentWith a collective positive pole: 89453846-350With a collective minus pole: 89453846-350GMUp to max. 3x 500mA output currentWith a collective positive pole: 89453846-500With a collective minus pole: 89453846-500GM  Up to max. 3x 700mA output currentWith a collective minus pole: 89453846-700GM Four channel versions, with 4 DALI addresses each (one address per channel) Up to max. 4x 350mA output currentWith a collective positive pole: 89453855-350With a collective minus pole: 89453855-350GMUp to max. 4x 500mA output currentWith a collective positive pole: 89453855-500With a collective minus pole: 89453855-500GMUp to max. 4x 700mA output currentWith a collective minus pole: 89453855-700GM  Other technical data: Output voltage range: 3V-45V (with 48V supply) Supply: 12VDC-48VDC resp. 56VDC Control input: DALI Temperature: -15 °C - 50 °C resp. -20 °C - 60 °C Protection type: IP20 Condition after return: depends on the DALI settings Max. cross wire section: up to 2,5 mm² Dimensions: Check the data sheet

Multi channel DALI constant current (CC) dimmer by Lunatone Every channel of the DALI constant current dimmer has its own DALI address Configuration and control via DALI For the direct control of LED modules with current input The outputs are dimmable from 1% to 100% Different variants for 350mA per channel in a small housing, further 1000mA per channel in a big housing are available Configuration via DALI cockpit and DALI USB interface Integrated short protection The following versions are available: Two channel versions, with 2 DALI addresses each (one address per channel) Up to max. 2x 350mA output currents: 89453845-350With a collectice positive pole: 89453845-350DEWith a collectice minus pole: 89453845-350GMDEUp to max. 2x 500mA output currents: 89453845-500With a collectice positive pole: 89453845-500DEWith a collectice minus pole: 89453845-500GMDEUp to max. 2x 700mA output currents:With a collectice positive pole: 89453845-700With a collectice minus pole: 89453845-700GMUp to max. 2x 1000mA output currents: With a collectice positive pole: 89453845-1000With a collectice minus pole: 89453845-1000GM  Three channel versions, with 3 DALI addresses each (one address per channel) Up to max. 3x 350mA output currentWith a collective positive pole: 89453846-350With a collective minus pole: 89453846-350GMUp to max. 3x 500mA output currentWith a collective positive pole: 89453846-500With a collective minus pole: 89453846-500GM  Up to max. 3x 700mA output currentWith a collective minus pole: 89453846-700GM Four channel versions, with 4 DALI addresses each (one address per channel) Up to max. 4x 350mA output currentWith a collective positive pole: 89453855-350With a collective minus pole: 89453855-350GMUp to max. 4x 500mA output currentWith a collective positive pole: 89453855-500With a collective minus pole: 89453855-500GMUp to max. 4x 700mA output currentWith a collective minus pole: 89453855-700GM  Other technical data: Output voltage range: 3V-45V (with 48V supply) Supply: 12VDC-48VDC resp. 56VDC Control input: DALI Temperature: -15 °C - 50 °C resp. -20 °C - 60 °C Protection type: IP20 Condition after return: depends on the DALI settings Max. cross wire section: up to 2,5 mm² Dimensions: Check the data sheet

Multi channel DALI constant current (CC) dimmer by Lunatone Every channel of the DALI constant current dimmer has its own DALI address Configuration and control via DALI For the direct control of LED modules with current input The outputs are dimmable from 1% to 100% Different variants for 350mA per channel in a small housing, further 1000mA per channel in a big housing are available Configuration via DALI cockpit and DALI USB interface Integrated short protection The following versions are available: Two channel versions, with 2 DALI addresses each (one address per channel) Up to max. 2x 350mA output currents: 89453845-350With a collectice positive pole: 89453845-350DEWith a collectice minus pole: 89453845-350GMDEUp to max. 2x 500mA output currents: 89453845-500With a collectice positive pole: 89453845-500DEWith a collectice minus pole: 89453845-500GMDEUp to max. 2x 700mA output currents:With a collectice positive pole: 89453845-700With a collectice minus pole: 89453845-700GMUp to max. 2x 1000mA output currents: With a collectice positive pole: 89453845-1000With a collectice minus pole: 89453845-1000GM  Three channel versions, with 3 DALI addresses each (one address per channel) Up to max. 3x 350mA output currentWith a collective positive pole: 89453846-350With a collective minus pole: 89453846-350GMUp to max. 3x 500mA output currentWith a collective positive pole: 89453846-500With a collective minus pole: 89453846-500GM  Up to max. 3x 700mA output currentWith a collective minus pole: 89453846-700GM Four channel versions, with 4 DALI addresses each (one address per channel) Up to max. 4x 350mA output currentWith a collective positive pole: 89453855-350With a collective minus pole: 89453855-350GMUp to max. 4x 500mA output currentWith a collective positive pole: 89453855-500With a collective minus pole: 89453855-500GMUp to max. 4x 700mA output currentWith a collective minus pole: 89453855-700GM  Other technical data: Output voltage range: 3V-45V (with 48V supply) Supply: 12VDC-48VDC resp. 56VDC Control input: DALI Temperature: -15 °C - 50 °C resp. -20 °C - 60 °C Protection type: IP20 Condition after return: depends on the DALI settings Max. cross wire section: up to 2,5 mm² Dimensions: Check the data sheet

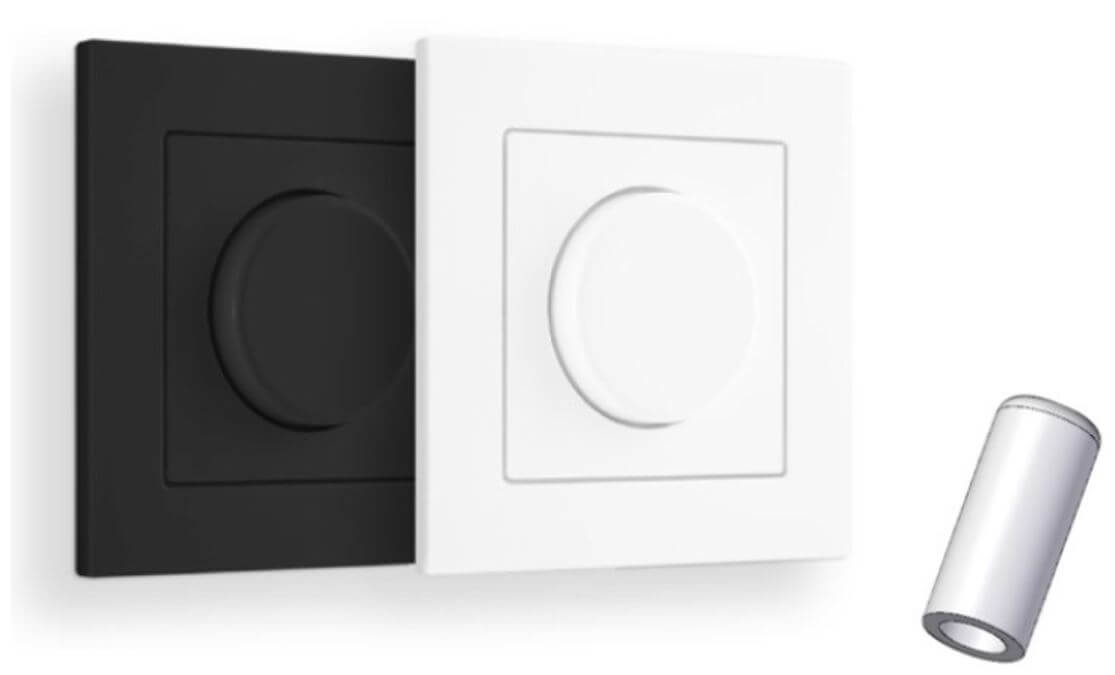

DALI ROT Accessories - Rotary Knob / Cover and Adapter DALI ROT is a dimmable rotary switch including a control module for switching, dimming and setting the color or color temperature of LED luminaires. With the right accessories in the form of a cover and an adapter, DALI ROT is ideally suited for standard flush-mounted boxes and is used in combination with most switch programs. The corresponding DALI ROT control module can be found under the following link: Dimmable Rotary Switch DALI ROT - Control Module. The rotary knob or the cover is available in different versions depending on the design and color. Construction: Standard or Jung Series A Color: Black or White Specification DALI ROT Accessories: Article Number Item Name Z-86459822-C-J-W Rotary knob and cover, Jung Series A, alpine white Z-86459822-C-J-S Rotary knob and cover, Jung series A, black Z-86459822-C-0-W Rotary knob and cover, standard, white RAL9016 Z-86459822-C-0-W Rotary knob and cover, standard, black Z-86459822-A Adapter 6 mm For more information, please refer to the manufacturer's data sheet in the download tab.

Control cross for DALI Switch Cross Kreuztaster als Zubehör für das Steuermodul DALI Switch Cross.The control cross is available in three different versions, each with customer-specific symbols: 86459793-Z01: Dimming symbols 86459793-Z02: Dimming and jalousie symbols 86459793-Z00: Custom symbols This allows the DALI Switch Cross to be individually adapted.

DALI 2xCW-WW LED Dimmer 12V - 48V Device with 2 DALI Tunable White LED dimmers. Suitable for constant voltage (CV) LED modules of 12V to 48V. 2 DALI addresses (Device Type 8, Color Type Tc), each DT8-Tc address allows independent control of brightness and color temperature.Available with input voltage of 12V to 48V DC and input currents up to 16A. Product overview: Device with 2 DALI Tunable White LED-Dimmer Suitable for constant voltage LED-modules with 12V to 48V 2 DALI adresses (Device Type 8, Colour Type Tc) Each DT8-Tc adress provides independent control of light level and colour temperature dimming range 1%-100% PWM-frequency 488Hz suitable for dinrail mounting supply voltage from 12V to 48V DC input current from 0.1A to 16A The input current can be distributed on the outputs at will Low standby losses High efficiency >98% Configuration via DALI-Cockpit software tool and DALI USB interface Product features: Type DALI 2xCW-WW LED Dimmer Article number 89453858-HS Electrical data Supply voltage 12VDC-48VDC Max. input current 16A Control input DALI Current consumption DALI 2mA Number of DALI adresses 2 (DT8-Tc) Standby losses (12V) 120 mW Technical data Power on behaviour configurable via DALI: 0%-100%, last value Storage and transportation temperature -20°C ... +75°C Operational ambient temperature -20°C ... +60°C Expected lifetime >10 years (at Tc<=75°C) Protection class IP20 Max. connecting wire crosssection 2.5 mm2 Dimensions (LxBxH) 98mm x 17.5mm x 56mm Mounting/housing dinrail You can find more information about this product in the data sheet under Downloads.

Circadian Daylight Control Device The DALI CDC enables a day time based adjustment of colour temperature and light level for Tunable White capable DALI DT8 luminaires (circadian daylight curve). The curve can be adjusted to fit the respective application. Overview: Control device for DALI DT8 luminaires (color mode Tc) Biorythmic time-adjusted Tc reference value DALI real time clock Automatic summer / winter time changeover adjustable Configurable scene behaviour (firmware 1.5+) Lightlevel curve (firmware 2.0+) The clock and the Tc characteristics over time can be configured with the help of the DALI Cockpit software too The DALI CDC module must not be connected to the mains. It is supplied directly via the DALI signal line Battery inside, clock is set to local time (GMT+1) as factory defaul Simple installation due to DALI double-clamp connector Types for backbox installation and dinrail mounting, suitable for installation in protection class II devices Type DALI Daylight Control Article number 89453853 89453853-HS Electrical data   Supply aus DALI Bus Current consumption 5mA (DALI) Input / Output DALI Real Time Clock quartz accuracy Technical data   Ambient temperature 0°C to +50°C Colour temperature NW/WW protection class IP20 Connection wire cross section max. 1.5mm² Dimensions (L x W x H) 59mm x 33mm x 15mm 98mm x 17,5mm x 56mm Mounting Back box integration in class II devices Dinrail mounting For further information please refer to the data sheet in the Download tab.

Lunatone DALI control module Analog DALI 100 kOhm DALI control module with analog input for connecting a 100k potentiometer With the DALI 100k, the luminaires in a DALI circuit can be controlled with a 100kOhm potentiometer.   Product characteristics: Compact control module with analog input for direct connection of a 100k potentiometer The input signal is directly converted into a DALI dimming value The conversion can be triggered periodically or by a trigger A change of the input signal (>2%) is used as the event trigger for the conversion. The dimming value can be sent to individual addresses, groups and broadcast Configuration via DALI-Cockpit and DALI-USB Interface Configuration via DALI-Cockpit and DALI-USB Interface Multimaster capable, multiple modules can be installed in a DALI circuit The module can be inserted in a flush-mounted box directly behind the potentiometer The module is supplied directly via the DALI line Technical data: Supply: from DALI bus Typical current consumption: <3 mA Inputs: 100k Potentiometer Output: DALI Temperature: 0 °C - 50 °C Protection class: IP20 Connecting wires Cross section: 0.5-1.5 mm2 max. cable length push-button module: 50 cm Dimensions (L x W x H): 40 mm x 28 mm x 15 mm

DALI control module sequencer for automatic sequences DALI command sequences can be played with the DALI sequencer. Both sequential scene calls and user-defined command sequences are supported.   Product characteristics Compact control module, enables automatically running sequences Memory for up to 4 sequences A command sequence can consist of up to 19 DALI commands The module fits into a flush-mounted box Types for back box and dinrail mounting Din rail type provides 4 switching inputs for mains voltage A sequence can consist of any command sequences or scene calls If the sequencer is assigned to a group, a running sequence can also be stopped with group and broadcast commands The sequence can be executed once or cyclically Simple configuration via DALI cockpit y calling up scenes 0-3 at the sequencer address, the corresponding sequences can be started The module draws 2mA from the Dali circuit, an additional supply is not necessary Multimaster capable, multiple master modules can be installed in a DALI circuit Technical Data: Type DALI Sequencer Article number 86459582 86459582-HS Suppy via DALI- Bus typ. current consumption 2 mA Control DALI Input DALI DALI 4 switching inputs (mains voltage) Function programmierbare Sequenzen Temperatur 0 °C - 50 °C Protection class IP20 Connecting wire cross section 1.5 mm² 2.5 mm² Mounting back box dinrail, 1TE Dimensions 39,7mm x 28mm x 14mm 98mm x 17.5mm x 56mm

DT8 DALI Converter/Interface Module with 1-10V Control for Tuneable White Applications This DALI converter can be used to control 2 LED supplies with 1-10 V control inputs, such as the Meanwell HLG series. Thereby the interface module has a DALI DT8 address, which can be assigned to certain groups and scenes. Furthermore, this DALI converter implements an output mode for 2 separate channels, where the output current is 1 mA per channel. Here the output signals are automatically calibrated. In addition, switching relays for switching the ECG power supply on and off are integrated into the module. They also protect the DALI converter from high inrush current peaks of up to 160 A. This item is available as a DIN rail module (-HS) or for remote / ceiling mounting (-DE). Product Overview / Features: DT8 DALI converter for driving two 1-10 V control inputs, e.g. Meanwell HLG Galvanic isolation between DALI input and 1-10 V control voltage DALI DT8 address with Colour Type Tc (assignment of groups and scenes) Defined status in the event of a bus failure Supply directly via DALI line (no additional supply necessary) Output: Automatic calibration for output signals Output mode for 2 separate channels (CW, WW) with 1 mA output current each Integrated switching relays: For switching the ECG power supply on / off For high inrush current peaks up to 160 A Control of the relay contact linked to the dimming value Characteristics / Specifications: Type DALI RM16 2x0-10V DE DALI RM16 2x0-10V HS Article number 89453857-DE 89453857-HS Device type signal converter Configurable via DALI Cockpit Yes Electrical data Supply From DALI bus type. Current consumption DALI approx. 7 mA inputs DALI Outputs (1-10V) Channel 1: 1-10 V analog, current sink 1 mA Channel 2: 1-10 V analog, current sink 1 mA Relay contact switching voltage 250 Vac / 400 Vac Maximum rated load relay 1000 VA 2000 VA Maximum switching current relay 8 A 16 A Maximum inrush current peaks relay 160 A 160 A Contact type relay 1 on / off 1 changer Switching cycles at 16A / 250Vac, resistive 3x10^4 Max. Switching frequency relay 0.1 Hz (full load) Technical data Storage and transport temperature - 20 ° C ... + 75 ° C Operating temperature - 20 ° C ... + 65 ° C Protection class IP20 Connection wires cross-section 0.5-1.5 mm² 0.5-2.5 mm² Housing Ceiling throw DIN rail Housing color Gray Dimensions (LxWxH) 120 x 30 x 22 mm 98 x 17.5 x 56mm For more information on the DALI converter with switching relay 1-10V, please refer to the data sheet in the download tab.

DALI Expander Unit for extending a DALI circuit (with integrated bus power supply for 3 DALI sub-circuits) With the DALI Expander 3, three new DALI sub-lines can be created and supplied with power and information. Further DALI operating devices in the DALI subcircuits can be controlled via one DALI address each (Broadcast). Alternatively the DALI sub-lines can be controlled directly with Switch&Dim inputs. The DALI Expander 3 has an integrated DALI bus supply (200mA) for up to max. 3 times 25 DALI devices. The amount of DALI units as well as the line length (up to 300m) can be increased using the DALI Expander 3 Overview: Device for DALI-line expansion Control of several DALI-devices via 3 DALI-addresses 3 DALI outputs (DALI A,B,C) with integrated DALI power supply (50mA each) for powering control gear and control devices For the superordinate DALI circuit the DALI expander acts like 3 separate DALI control gear – 3 DALI addresses, one for each subnet (A, B, C) Forwarding commands received at the input (DALI IN) to the corresponding output (DALI A, B, C) broadcast Alternative control options of the DALI-output circuits via Switch&Dim-inputs (Broadcast). Group commands are passed from one to the other output circuits (cross function) Galvanic isolation between DALI-input and DALI-outputs Independent control gear for remote ceiling an integration in luminaires Type DALI Expander-3 Electrical data   Supply 100V-240V AC Max. output current 3 x 50mA (DALI) Current consumption DALI (DALI IN) 2mA Input/Output DALI / DALI Technical data   Ambient temperature -20°C bto +60°C Protection class IP20 Expected life time @tc 50.000 h Mounting Remote ceiling integration in class II devices Dimensions (L x W x H) 120mm x 41mm x 22mm For further information, please refer to the data sheet in the download tab.

DALI Expander Unit 89453847 for DALI System Expansion with Integrated Bus Supply The DALI expander can be used to set up your own DALI sub-circuit and supply it with energy and information. In this way, additional DALI operating devices in the DALI sub-circuit can be broadcast controlled via the address of the DALI expander. Alternatively, the DALI Expander can also control the DALI devices in the sub-circuit directly via its switch & dim button input. It has an integrated DALI bus supply (200mA) for 90 DALI devices in the sub-circuit. In addition to increasing the number of electronic ballasts in a DALI circuit, the expander can also be used to extend the cable length of usually up to 300m. Product Properties / Features: DALI expander unit for expanding a DALI circuit and controlling several DALI devices via one DALI address For the higher-level DALI circuit, the DALI expander behaves like a DALI ECG (DALI IN) with a DALI address Broadcast forwarding of the DALI commands received at the input (DALI IN) to the output (DALI OUT) Output (DALI OUT) with DALI power supply (200mA) for supplying DALI ECGs and DALI control devices Alternative control option for the DALI output circuit via the switch & dim input (broadcast) Galvanic separation between the DALI circuits Available as DIN rail module (for installation in protection class II devices) Independent control gear (for ceiling installation or luminaire installation) Technical data: Type DALI Expander Article number 89453847 89453847-S 89453847-HS Entrance: L, N Type of input Supply, mains voltage Identification of terminals L, N Input voltage range 100Vac ... 240Vac 110Vac ... 230Vac Input current max. 40mA (@ 120Vac), 20mA (@ 240Vac) Frequency 50Hz / 60Hz Power consumption max. 5,3W Switch-on ramp-up time 250ms Input: DA, DA Type of input DALI control input Identification of terminals DA, DA Input voltage range 9.5V ... 22.5V Current consumption DALI 2mA Entrance: L ', N Type of input SwitchDim control input - Identification of terminals L ‘, N - Input voltage range 230Vac - Frequency input voltage 50Hz / 60Hz - Control pulse length min. 40ms - Control pulse length long key press 500ms - Output: DA +, DA- Type of output DALI bus supply Identification of terminals DA +, DA- Output voltage range 12Vdc ... 20.5Vdc Guaranteed DALI output current 200mA Idle proof Yes Short-circuit proof Yes Environmental conditions: Transport and storage temperature - 20 ° C ... + 75 ° C Operating temperature - 20 ° C ... + 60 ° C Rel. Humidity 15% ... 90% rH, non-condensing General data: Assembly False ceiling installation DIN rail Max. Rated temperature 70 ° C 75 ° C Expected lifetime 50,000 h Protection class II Degree of protection (housing / terminals) IP40 / IP20 Dimensions (LxWxH) 120 x 41 x 22 mm 120 x 30 x 22 mm 98 x 17.5 x 56 mm For more information, please refer to the data sheet in the download tab.

DALI GC/GC-A group control module Module for the control of two predefined DALI groups with a conventional light buttonThe DALI GC and GC-A are control units for the control of 2 DALI groups. With help of this compact module, light switches or buttons can send dimming and switching commands to two DALI groups.A rotary switch on the housing DALI GC/GC-A offers the possibility to preselect the DALI resp. luminaire group. The modules are installed in the flush-mounted box behind the light switches and get their supply directly from the DALI-Bus.  Product specifications The DALI GC offers in contrast to the DALI GC-A the possibility, to address luminaires and add them to groups resp. delete them. Compact control module to generate switching or dimming commands for two DALI groups With help of a rotary switch on the module housing the selection of the DALI groups that are addressed happens. The inputs can be controlled with standard buttons Multiple modules can be installed within a DALI circuit The module can be installed in a flush-mounted box or directly behind the light button The supply of the module happens directly through the DALI line and doesn't have to be connected to the grid The buttons are connected directly to the module (make potential-free contact) Technical data: Supply: via DALI bus Current consumption: 6 mA Inputs: 2 buttons single/double Outputs: DALI (broadcast) Groups: 2 of 16 (broadcast) Group selection: rotary switch Temperature: 0 °C - 50 °C Protection type: IP20 Connected wires: 0.75 mm2 Connected length: 250 mm

DALI LED Power Supply with DALI control input for Tunable White Output with safe isolation from mains and DALI, independent control of brightness and colour temperature (DT8). The device supports the operating modes Balance & Dim, Dim2Warm and SwitchDim2. Product features: DALI LED Power Supply for the control of tunable white luminaires Types for constant voltage and constant current LED-modules available Operating Mode DT8: one DALI-address for the independent control of light level and colour temperature (DALI DT8, Colour Type Tc) Operating Mode Balance&Dim:control by 2 DALI-addresses, one for adjusting the light level and one for adjusting the channel balance (e.g. colour temperature) Operating Mode Dim2Warm: one DALI-address for simultaneous adjustment of light level and colour temperature SwitchDim2: 2 switch-inputs offer control of level and colour without DALI Dimming range 0 0.1%-100% Adjustable PWM-frequency (122Hz/244Hz/488Hz/976Hz) Supply voltage 230V AC CV-Type: output 24V PWM (max. 1A) or 36V PWM (max. 700mA) CC-Type: output currents of up to 1100mA Configuration via PC-software DALI-Cockpit and DALI USB-interface Overtemperature shutdown, integrated short circuit protection User-friendly factory default settings Specification: Constant voltage (CV) Type: DALI 24V LED Power Supply CV DT8 Article number 89453849-CWW-24V / 89453849-CWW-36V Electrical data: Supply voltage 220-240V AC / 50-60Hz, Iin=0.12A, power factor > 0.95 inrush current < 0.2A Output 24V+- 0,5V PWM / 36+- 0,5V PWM Max. output current 1A / 700mA Control input DALI or SwitchDim2 Current DALI 2mA Number of DALI addresses operating mode DT8, Dim2Warm: 1 operating mode Balance&Dim: 2 Constant current (CC) Type DALI LED Power Supply CC DT6 Article number 89453849-CWW-XXX 350 500 700 800 1150 Electrical data: Output current 350mA 500mA 700mA 800mA 1100mA Output voltage range 12-44V 12-36V 12-32V 12-28V 12-16V Control input DALI Current consumption DALI 2mA Number of DALI addresses operating mode DT8, Dim2Warm: 1 operating mode Balance&Dim: 2 Technical data: Power on behaviour configurable via DALI: 0%-100% or last value Storage/transportation temp. -20°C ... +75°C Ambient temperature -20°C ... +45°C Expected lifetime (at tc<=65°C) >50000h Protection class IP20 Connecting wire cross section 1.5 mm2 Dimensions (LxWxH) 120mmx41mmx22mm Mounting/housing remote ceiling / integration in luminaires RECOMMENDATION: During installation, care should be taken to keep the cable lengths between LED power supply and LED lights (LED strings) as short as possible to minimize the effects of voltage drops. For more information on this product, please refer to the data sheet.

DALI light sensor LS module from Lunatone The DALI light sensor LS automatically controls the light level of individual luminaires or luminaire groups. A rotary switch allows the desired illuminance to be set directly at the rear of the device. The measured light level can also be queried via the DALI bus.   Product Characteristics Light intensity sensor for brightness measurement in DALI lighting control systems Optional use as active lighting control unit or for monitoring purposes As an active lighting control unit, the module can be configured either as a threshold switch with hysteresis or as an ambient light-dependent controller. As threshold switch, the DALI light sensor LS can send various DALI commands (such as ON, OFF, RECALL MIN/MAX, GO TO SCENE X,...) to defined destinations As adaptive light level-dependent dimming control, the target address and brightness setpoint can be specified for the module Simple configuration of the sensor via the DALI bus using the DALI Cockpit software. Individual and group addresses or broadcast addresses can be used as destination addresses The default setting can be used for simple applications. The rotary switch on the rear panel is used to set the brightness setpoint. The default destination address is Broadcast The combination of several DALI LS in one DALI circuit is possible The compact module can be mounted in a flush-mounted box or directly on cavity walls The module is supplied directly via the DALI line; no additional connection is necessary Simple installation with DALI double terminal

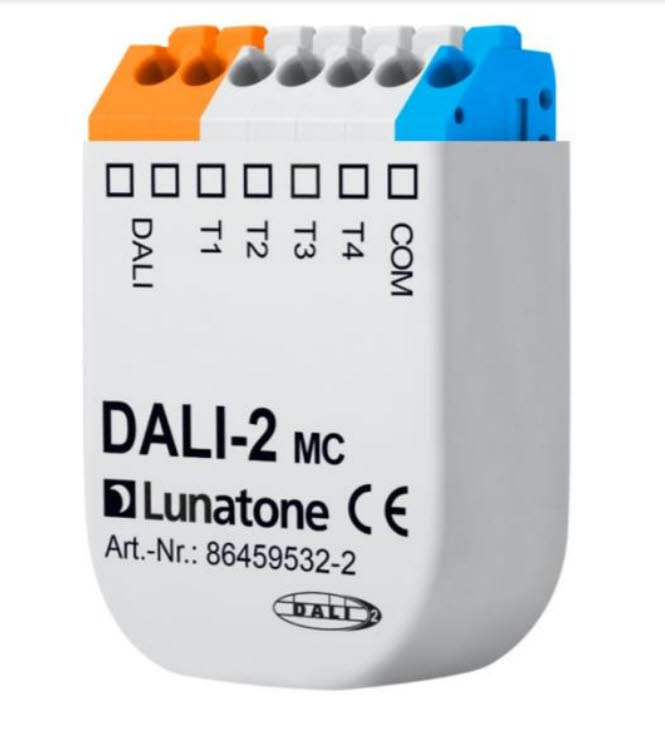

DALI MC Multi Control Module with 1 to 4 Programmable Inputs The DALI MC (+) from Lunatone is an interface for connecting four conventional switches or buttons. Various DALI commands can be assigned to each input via PC software: dim up, dim down, off, recall min., Recall max., Goto scene 1-16, direct arcpower ...%, mask and predefined macros. The compact DALI MC / DALI MC + can be inserted into the flush-mounted box behind the switch, turning a standard light switch or button into a DALI control unit. Product overview / features: Compact control module with one (1L) or four (4L) freely programmable switching inputs or analog inputs (MC +) for mains voltage A maximum of 2 functions can be assigned to each input depending on the switching behavior (short or long button press, toggle, edge-controlled relay mode) Connection of a 100KOhm potentiometer (only MC +) The following functions are available: dim up, dim down, recall min, max got scene 1-16 direct arcpower in% and both predefined and self-configurable macros Control of the color temperature (DT8) using the Step Cooler, Step Warmer commands (MC + only) With analog inputs, the input signal is converted directly into a DALI dimming level. The conversion can be initiated periodically or by a trigger (MC + only). Possibility of a configurable power-up function, i.e. automatic sending of an adjustable command after a voltage interruption Configuration via DALI-Cockpit and DALI-USB interface (additionally DALI-PS required) Possibility of addressing individual addresses (1-64), groups (1-16), and broadcast multi-master capability, several modules can be installed in a DALI circuit Use with default settings for dimming and switching applications possible without additional configuration The module can be inserted in a flush-mounted box directly behind a light button The module is supplied directly via the DALI line and does not have to be connected to the mains The buttons are connected directly to the module (potential-free closing contacts) (MC) DALI MC + with alternatively also an analog input. Connection of 100kOhm potentiometer possible. Technical data: Type DALI-MC4L DALI-MC4L + DALI-MC1L Article number 86458507 86459532 86458507-1L Supply from DALI bus typ. Current consumption 4.1 mA & lt; 4 mA 3.5 mA Inputs 4 buttons or relays 4 x GPI (General Purpose Input) 1 x switching relay (Switching Input) Output DALI (Interface) Function programmable adjustable adjustable Temperature 0 ° C ... 50 ° C - 20 ° C ... + 75 ° C Protection class IP20 IP40 Connection wires cross-section 0.5 ... 1.5mm 2 Max. Cable length button module 50 cm 100 m Dimensions 40 x 28 x 15 mm 59 x 33 x 15 mm For more information, please refer to the data sheets in the download tab.

DALI control module with 1-4 switching inputs for 230V (L) Each switching input can be assigned an effective range, switching behavior and DALI commands. In addition to the standard functions such as dimming, switching, scene recall, etc., predefined macros such as color temperature control, dynamic scenes, sequences and user-defined command lists are also supported. The compact control module can be inserted in the flush-mounted box behind the switch. Overview: DALI(-2) control unit with switching input (MC1L) or 4 switching inputs (MC4L) for mains voltage. The function can be configured for each switching input (MC4L) 4 potentiometers - buttons that by pushing and turning adjust the settings (on/off and dimming) manually on the module (POTI) Each input can be assigned an effective range, switching functions and DALI command(s) (MC4L) DALI DT8 support for controlling the color temperature of luminaires using corresponding macros (MC4L) Configurable “Power Up” Function (MC4L) The module can work as an application controller or as a digital input instance, which only sends information about the status of the input (according to IEC62386-301) (MC1L; POTI) Application Controller: direct control of DALI devices - effective range, switching behavior and DALI commands can be defined (MC1L, DALI-2 MC4L) In addition to the standard DALI commands, the application controller also enables DALI DT8 TC and RGB(W) control (DALI-2 MC4L) Easy integration with four DALI-2 pushbutton instances (DALI-2 MC4L) NFC variant for easy, contactless configuration with LUNATONE NFC smartphone app (DALI-2 NFC) DALI-2 control unit according to IEC62386-103 (DALI-2 MC4L) Galvanic isolation between switching input and DALI interface DALI DT8 support for controlling the color temperature of luminaires using appropriate macros configurable “power-up” behavior The configuration is done using the DALI Cockpit and an interface module (e.g. DALI USB) Multi-master capable, several modules can be used on the same bus Suitable for installation in protection class II devices or box installation   Type DALI MC1L DALI MC4L DALI MC4L-HS DALI-2 MC4L DALI-2 MC4L-HS DALI-2 MC4L POTI Article number 86458507-1L 86458507-4L86458507 -4L 86458507-4L86458507-4LHS 86458507-4L-2-app 86458507-4L-HS-2-app 86458507-4L-2-int 86458507-4L-HS-2-int 86458507-4L-NFC 86458507-4L-POTI Note On switch signal --> A DALI command 4 x L input --> 4 different DALI commands App controller enabled Instances enabled Configurable via NFC (Lunatone app) 4 potentiometers for adjusting the light level Electrical data   Supply from DALI bus typ. Power Consumption 3.5mA (DALI) 3.5mA (DALI)   2.6mA (DALI) 1,7mA (DALI) Input 1 switching input "L" 4 switching inputs for "L"    Switch inputs for "L" 4 switch inputs for "L" Output DALI DALI   DALI, DALI-2, Multimaster DALI, DALI-2, MultimasterDALI, DALI-2, Multimaster Specifications   Ambient temperature -20°C … +75°C Protection class IP20 Connection wires cross-section Socket installation with spring clamp for 0.5 … 1.5 mm2 (AWG 20 … AWG 16), DIN rail with screw terminal for 0.5 … 2.5 mm2 (AWG20 …AWG14) Dimensions (LxWxH) see figures or data sheet Case Type Socket installation socket installation or DIN rail   socket installation or DIN rail socket Installation or DIN rail     For more information, please refer to the respective data sheets in the download tab

DALI motion detector with temperature sensor or remote function The compact DALI motion detector from Lunatone has a motion detector, is used to measure the light intensity and the ambient temperature (type DALI CS Temp) or has an integrated IR remote control sensor (type DALI CS IR) for example Apple Remotes.   The following versions are available:   Typ DALI CS Temp: 86458621 with sensors for: movement, light intensity ambient temperature The application range extends from lighting control to room temperature control and sun protection. Presence detector and temperature sensor transmit their signals to DALI control units, which control the corresponding systems (eg light, heating). The compact and simple housing of the DALI motion detector can be mounted in flush-mounted boxes or directly on cavity walls.   Sensor for DALI lighting control systems with special attention to lighting control and reduction of energy costs Motion-dependent lighting control Motion detection Ambient light-dependent control Photometry Additional temperature sensor for measuring and monitoring the room temperature (depending on the type) Additionally with integrated infrared receiver (depending on the type) Optional use as active light control unit or for monitoring purposes (monitoring) The module is supplied directly via the DALI line, no additional connection is necessary Easy group assignment via rotary switch on the back Easy configuration of the sensor behavior via the DALI bus using the DALI Cockpit software The DALI CS can send various DALI commands (such as ON, OFF, RECALL MIN / MAX, GO TO SCENE X, ...) to individual addresses, groups or also broadcast Combination of several DALI CS in a DALI circuit possible The compact module can be mounted in a flush-mounted box or directly on cavity walls

DALI RTC Timer sends time-controlled commands Functions DALI real time clock Configuration and retrieval of date and time via the DALI bus Integrated timer function with up to 14 entries Each entry consists of a Weekday mask, a time stamp and a DALI command Simple creation of the schedule via DALI Cockpit software tool and DALI USB Interface The DALI RTC module is supplied directly via the DALI bus. Additional connection required Internal battery, the time is set to local time (GMT+1) in production Easy installation by DALI double terminal Specification, Characteristics DALI Timer Type DALI RTC Timer Article number 86459531 Supply from DALI- Bus Typical current consumption 5 mA Input/Output DALI RTC quartz-precise Timer Up to 14 entries programmable Each entry consists of: Status (Activ/Inactiv) 24h Time stamp Weekday Activation Mask 1 DALI active range 1 DALI command Operating temperature 0°C-50°C Storage temperature -20°C-70°C Protection class IP20 Geometry 59mm x 33mm x 15mm Connecting wires Cross section 0.5-1.5 mm2 For fruther details please refer to the data sheet in the Download tab.

DALI scene control module Module for the call up of DALI scenes with conventional light buttons The DALI SC / SC-A is a control unit for the call up of DALI scenes. With help of a rotary switch on the backside of the can be defined, which of the 16 possible scenes are called up with a button push. The 4 independent button inputs can be assigned to 4 light scenes. The modules find room in the flush-mounted box behind the light button. The customary light buttons is becoming a DALI scene switch with this. The supply of the module happens via DALI Bus.  Product specifications The DALI SC offers in contrast to the DALI SC-A the possibility, to program light scene values in DALI operating units. Compact control module for the call up of light scene values in DALI operating units With the a adjustment of a rotary switch on the module the scenes can be preselected, which can be called up via button push The inputs can be switched with standard buttons Multiple modules can be installed DALI circuit The Module can be laid into a flush mounted box, directly behind the light button The supply of the module happens directly through the DALI line The buttons are connected directly to the module (potential-free make contacts) Technical data: Supply: via DALI bus Current consumption: 6 mA Inputs: 4 buttons Output: DALI (broadcast) Scenes: 4 of 16 Scene selection: Rotary switch on the back of the module Temperature: 0 °C - 50 °C Protection type: IP20 Connecting wires: 0.75 mm2 Connecting length: 250 mm

DALI temperature module to measure the temperature with built-in sensor or external PT1000 The DALI Temp module determines the internal, external, flow or return flow temperature, depending on the application. The current measured value can be read out at any time. Internal sensor installed and option to connect an external PT1000. All measured values can be read out via DALI. No additional power supply is required, this is guaranteed via the DALI bus.   Specifications: Power supply: via DALI-Bus typical current consumption: 2,6 mA Output: DALI Used DALI addresses: 1 Input (external): PT1000 (sensor sold separately) Temperature measuring range (external sensor): -25 °C bis 125°C Temperature measuring range (internal sensor): 0 °C bis 85°C Accuracy (internal sensor): 0,5 °C Protection class: IP20 Connection cross section: 0,5 - 1,5 mm2

Control your DALI lighting system with the advanced Lunatone DALI touch panel Bluetooth with integrated Bluetooth interface. The touch panel's built-in interface with Bluetooth 4.0 Low Energy allows you to control your lighting system via Android/iOS smartphone as well as on the high-quality DALI touch panel itself. For the mentioned smartphone operating systems an app is available in the corresponding Playstore/Appstore. DALI touch panel with Bluetooth 4.0 interface 24035465-BT from manufacturer Lunatone Control of DALI systems via the touch panel or via Android or iOS mobile device selection of different layouts to control the environment App for Android and IOS mobile devices available, all Bluetooth modules in the reception area are offered with the corresponding control options Predefined standard designs for color and color temperature control as well as for switching and dimming with partially freely configurable buttons Configuration of the DALI BT4.0 touch panel via DALI cockpit and DALI USB interface Each configurable key can be assigned functionality destination address and DALI commands Possibility to address single addresses (1-64), groups (1-16), and broadcast All typical dimming and switching commands are available for the freely configurable keys All typical dimming and switching commands are available for the freely configurable keys Multimaster capable, multiple modules can be installed per DALI circuit The module is supplied directly via the DALI line Technical data: Supply via DALI bus Typical current consumption: 4 mA Output: DALI Layout: selectable Function: programmable Temperature: 0 °C - 50 °C Connecting wires: Cross section 1.0 - 2.5 mm² Housing material: ABS Housing color: RAL9010 Dimensions (LxWxH): 111 x 82 x 9 mm Protection class IP20

Lunatone DALI touch panel (operating and control unit) 24035465 with up to 6 freely configurable keys. This is a multifunctional touch panel for controlling DALI systems with various predefined functions and several freely configurable control panels. Operating and control device for DALI systems Predefined standard designs for color and color temperature control as well as for switching and dimming with partially freely configurable buttons Layouts with freely configurable key assignment, individual layouts easy to insert Configuration via DALI-Cockpit and DALI-USB Interface Configuration via DALI-Cockpit and DALI-USB Interface Each configurable key can be assigned destination address and DALI commands according to layout and functionality. Possibility to address single addresses (1-64), groups (1-16), and broadcast All typical dimming and switching commands are available as DALI commands for the freely configurable keys . Multimaster capable, multiple modules can be installed per DALI circuit The module can be attached to a flush-mounted box The module is supplied directly via the DALI line The DALI touchpanel 24035465 from Lunatone enables, for example, the control of several luminaire groups, the retrieval of preset lighting scenes or even the direct specification of colour and brightness. The DALI touch panel is also flexible in terms of design; the control panel can be adapted to any application and environment simply by exchanging the cards supplied. The DALI touch panel is multi-master capable, i.e. several control modules can be installed in parallel in a DALI circuit. Technical data: Supply from DALI bus Typical current consumption: 4 mA Output: DALI Selectable Key layout Function programmable Temperature 0-50 °C Connecting wires Cross section 1.0-2.5 mm² Housing material ABS Housing color RAL 9010 Protection class IP20
