LED Board ceiling installation 18 LEDs non-sealed This LED colour change board is suitable for ceiling or wall mounting with 50mm sockets as used for GU10/MR16 spots. The LED light source is equipped with two 0.5m long RGB cables, making it easy to connect several luminaires together.It has a beam angle of 120° and can be dimmed via PWM.Technical data: Electrical data Nominal voltage 24 Vdc Rated current 0,2 A Rated power 4 W Efficacy 17,5 lm/W Energy efficiency class B Lighting data Luminous flux 70 lm Light colour RGB Beam angle ca. 120° dimmable yes, via PWM Lifetime & ignition time Nominal service life 30.000 h Ignition time < 0,5 s Starting time directly Temperature Operating temperatur 60 °C measured at the TC point Storage temperature -15 to +40 °C Dimensions Diameter 50 mm Height 2 mm 2 supply lines ca. 500 mm (RGB plug / socket)The board is suitable for use in damp rooms due to its potting. Up to 10 RGB luminaires may be connected in series. When using a 1m  extension cable, a total cable length of 20m should not be exceeded.For further information, please refer to the data sheet in the download tab.

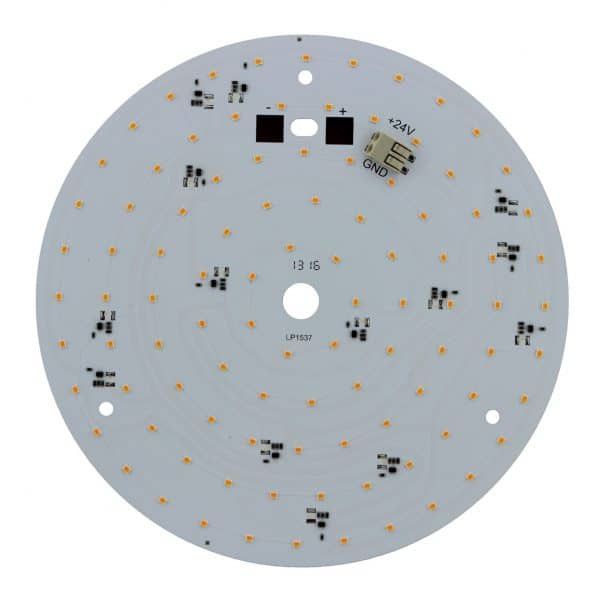

Very efficient round LED board 10W - PWM dimming, self-cooling This self-cooling round LED module is equipped with an aluminum core and designed for 24V low voltage. The board is particularly bright and characterized by efficiency and good colour reproduction. The product is available in two different sizes, each with four different light colors (extra warm to cool white). Further features:  Dimmable with PWM dimming With contact terminals on the board Tc-temperature to be measured on the board besides LEDs Self cooling, doesn’t need a heat sink Technical data: Colour temperature 2700K 2900K 4000K 5700K Dimensions 155×6 mm Article number 810358 810357 810356 810355 Type AR24-155-927 AR24-155-930 AR24-155-840 AR24-155-857 Dimensions 190×6 mm Article number 810368 810367 810366 810365 Type AR24-190-927   AR24-190-840 AR24-190-857 Nominal input voltage 24 Vdc Power max. 10 W Luminous flux typ.   820 lm 1050 lm   Colour rendering index (CRI) 90 90 80 80 Beam angle 120 ° Rated Max. temp. (tc) 85 °C Number of LEDs 98 For further information please refer to the data sheet in the Download tab.

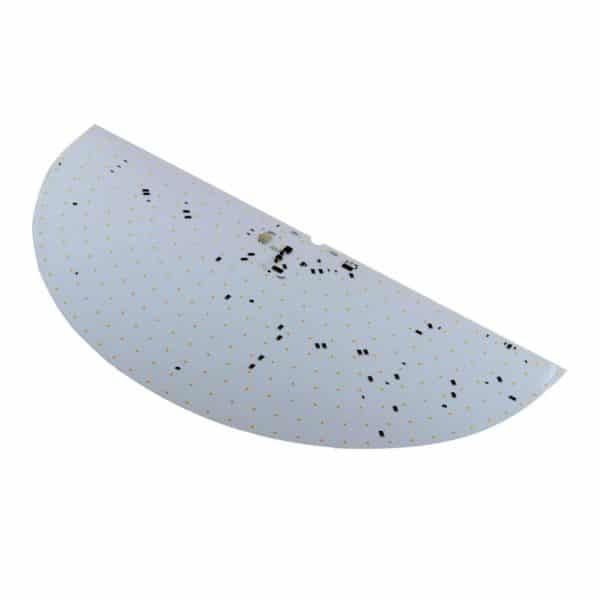

Semicircle LED board with trailing-edge dimmer, bright Due to its design, this efficient semicircular high-voltage LED board is ideal for special indoor applications and is designed for 230V mains voltage. Its features include a sturdy aluminum core, which ensures ideal heat dissipation (cooling). In addition, the LED module is bright and convinces with efficiency and good colour rendering. Further features: Dimmable by dimmers with phase cut on the trailing edge With contact terminals on the board Tc-temperature to be measured on the board besides LEDs Protection class: 1 is applied for the rear side when grounded Front side must be protected against contact Note: Ripple control pulses and other power disturbances can cause brightness variations, especially with dimmers. Technical data: Article number 810348  810347  810346 810345  Colour temperature 2700 K 3000 K 4000 K 5700 K Type AR230-505XW9 AR230-505WW9 AR230-505NW AR230-505CW Nominal input voltage 230 Vac Power max. 39 W Luminous flux typ. 3395 lm 3930 lm 4290 lm 4290 lm Colour rendering index (CRI) 90 Beam angle 120 ° Rated Max. temp. (tc) 60 °C Number of LEDs 284 Dimensions 505×6,4 mm For further information please refer to the data sheet in the Download tab.

High efficiency round 31W LED circuit board - PWM dimming, self-cooling This self-cooling round LED module is equipped with an aluminum core and designed for 24V low voltage. The board is particularly bright and stands out by efficiency and good colour rendering. Further product features:  With contact terminals on the board Tc-temperature to be measured on the board besides LEDs Dimmable with PWM dimmers Self cooling, doesn?t need a heat sink Note: Ripple control pulses and other network disturbances can cause brightness variations, especially with dimmers. Technical data: Article number 810388  810386 810385  Colour temperature 2700 K 4000 K 5700 K Type AR24-380-927 AR24-380-840 AR24-380-857 Nominal input voltage 24 Vdc Power max. (LED-Modul) 31 W Luminous flux typ.   3200 lm   Colour rendering index (CRI) 90 80 80 Beam angle 120 ° Rated Max. temp. (tc) 85 °C Number of LEDs 301 Dimensions 380×6 mm For further information please refer to the data sheet in the Download-tab.

Very efficient round LED board 17,5 W - Trailing edge dimmer, aluminium core This round LED board is particularly bright and equipped with a sturdy aluminum core. It ensures ideal heat dissipation (cooling). In addition to its design for 230V mains voltage, the LED module impresses with its efficiency, good color rendering and advanced operating electronics on the board. In addition, the beam angle of 120 ° ensures large-area illumination. The product is available in two different sizes, each with four different light colors (extra warm to cool white). Further features: Dimmable by dimmers with phase cut on the trailing edge With contact terminals on the board Tc-temperature to be measured on the board besides LED Protection class: 1 is applied for the rear side when grounded Front side must be protected against contact Note:Ripple control pulses and other power disturbances can cause brightness variations, especially with dimmers. Reference: Matching covers Transparent: 035797 / Opal 036342 Technical data: Colour temperature 2700 K 3000 K 4000 K 5700 K Dimensions 155×6,4 mm Article number 810308 810307 810306 810305 Type AR230-155XW9 AR230-155WW9 AR230-155NW AR230-155CW Abmessungen 187×6,4 mm Article number 810318 810317 810316 810315 Type AR230-187XW9 AR230-187WW9 AR230-187NW AR230-187CW Nominal input voltage 230 Vac Power max 17,5 W Luminous flux typ. 1380 lm 1600 lm 1750 lm 1750 lm Colour rendering index (CRI) 90 90 80 80 Beam angle 120 ° Rated Max. temp. (tc) 60 °C Number of LEDs 94 For further information please refer to the data sheet in the Download tab.

High efficiency round 21,5W LED circuit board - PWM dimming, self cooling This self-cooling round LED module is equipped with an aluminum core and designed for 24V low voltage. The board is particularly bright and stands out by efficiency and good colour rendering. Further product features:  With contact terminals on the board Tc-temperature to be measured on the board besides LEDs Dimmable with PWM dimmers Self cooling, doesn?t need a heat sink Note: Ripple control pulses and other network disturbances can cause brightness variations, especially with dimmers. Technical data: Article number 810378  810377  810376 810375  Colour temperature 2700 K 3000 K 4000 K 5700 K Type AR24-240-927 AR24-240-930 AR24-240-840 AR24-240-857 Nominal input voltage 24 Vdc Power max. (LED-Modul) 21,5 W Luminous flux typ.   1750 lm 2250 lm   Colour rendering index (CRI) 90 90 80 80 Beam angle 120 ° Rated Max. temp. (tc) 85 °C Number of LEDs 210 Dimensions 240×6 mm For further information please refer to the data sheet in the Download-tab.

High efficiency round 35W LED circuit board - trailing edge dimmer This bright round LED module is mounted on a sturdy aluminum carrier, which ensures ideal heat dissipation (cooling). It is designed for 230V mains voltage and stands out by efficiency, good colour rendering and advanced operating electronics on the board. In addition, the beam angle of 120 ° ensures large-area illumination. Further product features:  Dimmable by dimmers with phase cut on the trailing edge With contact terminals on the board Tc-temperature to be measured on the board besides LEDs Protection class 1 is applied for the rear side when grounded Front side must be protected against contact Note: Ripple control pulses and other network disturbances can cause brightness variations, especially with dimmers. Reference: Matching covers transparent: 035769 / opal 036343 Technical data: Article number 810328  810327  810326 810325  Colour temperature 2700K 3000K 4000K 5700K Type AR230-237XW9 AR230-237WW9 AR230-237NW AR230-237CW Nominal input voltage 230 Vac Power max. (LED-Modul) 35 W Luminous flux typ. 2760 lm 3200 lm 3500 lm 3500 lm Colour rendering index (CRI) 90 90 80 80 Beam angle 120 ° Rated Max. temp. (tc) 60 °C Number of LEDs 188 Dimensions 237×6,4 mm Further information of the 35W LED board can be found in the datasheet in the download tab.

High efficiency round 42W LED circuit board - trailing edge dimmer, very powerful This bright round LED module is mounted on a sturdy aluminum carrier, which ensures ideal heat dissipation (cooling). It is designed for 230V mains voltage and stands out by efficiency, good colour rendering and advanced operating electronics on the board. In addition, the beam angle of 120 ° ensures large-area illumination. Further product features: Dimmable by dimmers with phase cut on the trailing edge With contact terminals on the board Tc-temperature to be measured on the board besides LEDs Protection class 1 is applied for the rear side when grounded Front side must be protected against contact Note: Ripple control pulses and other network disturbances can cause brightness variations, especially with dimmers. Reference: Matching covers transparent: 035769 / opal 036343 Technical data: Article number 810338  810337  810336 810335  Colour temperature 2700K 3000K 4000K 5700K Type AR230-380XW9 AR230-380WW9 AR230-380NW AR230-380CW Nominal input voltage 230 Vac Power max. (LED-Modul) 42 W Luminous flux typ. 3560 lm 4120 lm 4500 lm 4500 lm Colour rendering index (CRI) 90 90 80 80 Beam angle 120 ° Rated Max. temp. (tc) 60 °C Number of LEDs 299 Dimensions 380×6,4 mm Further information of the 42W LED board can be found in the datasheet in the download tab.

LED RGB Modul, IP65 This LED RGB Modul is suitable for ceiling or wall mounting with 50mm sockets as used for GU10/MR16 spots. The RGB LED light source is equipped with two 0. 5m long RGB cables, making it easy to connect several luminaires together.It has a beam angle of 120° and can be dimmed via PWM.Technical data: Electrical data Nominal voltage 24 Vdc Rated current 0,2 A Rated power 4 W Efficacy 17,5 lm/W Energy efficiency class B Lighting data Luminous flux 70 lm Light colour RGB Beam angle ca. 120° dimmable yes, via PWM Lifetime & ignition time Nominal service life 30.000 h Ignition time < 0,5 s Starting time directly Temperature Operating temperatur 60 °C measured at the TC point Storage temperature -15 to +40 °C Dimensions Diameter 50 mm Height 2 mm 2 supply lines ca. 500 mm (RGB plug / socket) The RGB board is suitable for use in damp rooms due to its potting. Up to 10 RGB luminaires may be connected in series. When using a 1m RGB extension cable, a total cable length of 20m should not be exceeded.For further information, please refer to the data sheet in the download tab.
