ATON DALI - Universal LED converter 250mA-700mA adjustable, inc. DALI interface This ATON DALI 30/250-700 by TCI serves as an electronic LED converter/ballast for control via DALI, and is perfectly suited for the supply of constant current operated power LED modules/luminaires or LED systems designed for protection class I, IP20. The output current can be set via an integrated dip-switch.To correct the power factor, an active over-current filter Active Power Factor Corrector is integrated. The rated power is 30W. In addition, this ECG is adequately protected against overheating and short circuits, power surges and overload. With this TCI DALI ballast, the current control is + - 5% including temperature fluctuations.The ATON series is particularly popular for its slim design, making it an attractive alternative to the proven Jolly series from TCI. Type: DC ATON 30/250-700 DALI Product No.: 127370 / 127372 (BI) and 151370/ 151372 (BI)Rated power: 13W to 30W depending on the selected constant currentConstant current range selectable in steps: 250mA-700mAMax. Output voltage: 59VDimensions: L210/W21/B30  L179/H21/W30 (BI)This driver provides up to 30W of power at currents from 250mA to 700mA, which can be adjusted in 16 steps via dip-switches.As a proven multi-current converter universally applicable. Also available as built-in version (127372BI and 151372BI) Technical data for 127370 / 127372 und 151370/ 151372 (BI):  Dip-SW  Power  Voltage out  Current out Position 1  13 W  20...54V/ 52V*  250mA const. Position 2  15 W  15...54V/ 52V*  280mA const. Position 3  16.5 W/ 16W*  10...54V/ 52V*  310mA const. Position 4  18 W    2/3*...54V/ 52V*  340mA const. Position 5  19.5 W/ 20W*    2/3*...54V/ 52V*  370mA const. Position 6  21 W    2/3*...54V/ 52V*  400mA const. Position 7  22.5 W/ 23W*    2/3*...54V/ 52V*  430mA const. Position 8  24 W/ 25W*    2/3*...54V/ 52V*  460mA const. Position 9  26 W    2/3*...54V/ 52V*  490mA const. Position 10  27.5 W/ 26W*    2/3*...50V/ 50V*  520mA const. Position 11  29 W/ 27W*    2/3*...50V/ 50V*  550mA const. Position 12  30 W/ 29W*    2/3*...50V/ 50V*  580mA const. Position 13  30 W    2/3*...50V/ 50V*  610mA const. Position 14  30 W    2/3*...46V/ 46*  640mA const. Position 15  30 W    2/3*...45V/ 45*  670mA const. Position 16  30 W    2/3*...43V/ 43*  700mA const. *Version TCI 151370/151372 (BI) with AM dimming is a pure linear controller. The LED current can be dimmed linearly (AM) from 100% to 1%.Efficiency of 127370/ 127372 (BI) and 151370/ 151372 (BI) depending on performance: >88%For a detailed description of the LED converter, please see the data sheet in the download area.

BMU MD - Compact dimmable LED driver 10W from TCIThe BMU MD series is an LED constant current Power Supply Unit PSU with small square dimensions,especially for installation in luminaires.The 10W driver is available for currents of 250mA, 350mA, 500mA and 700mA.Easy installation with spring terminal contacts.  Features of the TCI BMU-MD series (127396, 127390, 127392, 127394): SELV <60V Wide Range Input Voltage Suitable for automatic wiring machine Direct current dimmable Flicker (Output Ripple) < 20%  Driver for built-in use.  It can be used for lighting equipment in protection class I and II.  Single terminal block at the primary and secondary circuit(wire cross-section up to 1,5 mm²/ AWG15).      Article Art.Nr.     Power out Voltage out(no dimming) Voltage out(dimming) Current out  #LED 250mA BMU MD  127396    7 W 12...28 V 14...28 V 250mA const. 4-8 350mA BMU MD 127390  10 W 8,5...28 V 12...28 V 350mA const. 3-8 500mA BMU MD 127392  12 W (10) 6...29 V 10...20 V 500mA const. 2-5 700mA BMU MD 127394  12 W (10) 3...14 V   6...14 V 700mA const. 1-4    Additionally Features for BMU MD:  Driver can be secured with slot for screws.  Ultra compact size.  Protections:  against overheating and short circuits;  against mains voltage spikes;  against overloads.  Thermal protection C.5.a. Further Informations about TCI BMU MD xxx can be found in the PDF-Data Sheet (Download Tab)

Built-in LED power supply with constant current and voltage 24V 350mA / 12V 700mA - for high power LEDs This LED power supply is ideal for the operation of high power LEDs. The module has screw terminals and is used both as a power supply with a constant output current and as such with a constant output voltage. Further features: Power supply built-in with constant output current for high power LEDs With screw terminals Protection against overheating, overload and short circuit Also usable as power supply with constant output voltage: Connect 12V / 24V 5,95W / 8,4W LEDs parallel Note: Do not insert switches into the secondary circuit! Only connect high power LEDs in series!   Technical data: Nominal output current 350 mA 700 mA Article number 401243 401244 Type NE352-7 NE701-7 Input voltage 220..240 Vac Frequecy 50..60 Hz Output power 1,05..8,4 W 2,1..5,95 W Operating output voltage 3..24 Vdc 3..8,5 Vdc Max. output voltage 24 Vdc 12 Vdc Power factor acc. to EN61000-3-2 0,6 Ambient temperature 50 °C Rated max. temperature 85 °C Thermal protection yes Overload protection yes Short circuit protection yes Dimensions 42,5x41x21 mm For further information please refer to the data sheet in the Download tab.

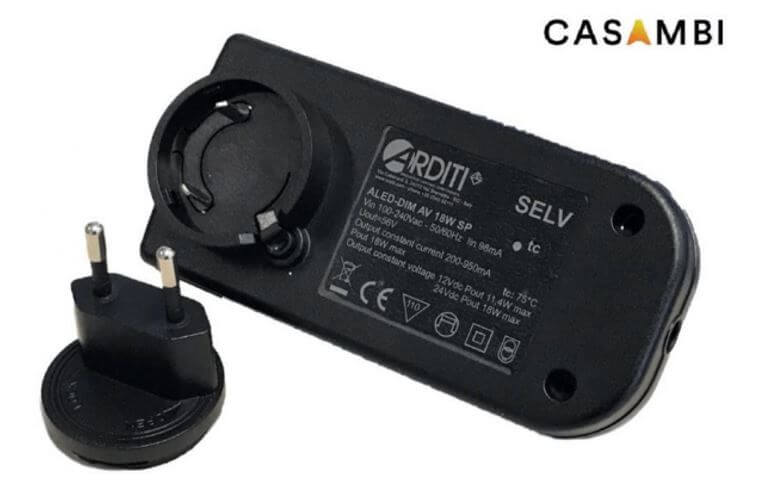

Multifunctional Casambi Plug-In Power Supply - Current and Voltage Adjustable This flexible Casambi plug-in power supply allows the implementation of numerous LED lighting applications. Here, the lighting control by Casambi radio is used. Furthermore, the power supply is ideally suited for various plug attachments, which can be quickly and easily replaced. In the secondary circuit there is also the possibility to dim your lighting system by a push button. The Casambi plug-in power supply underlines its versatile functionality by the fact that constant current and voltage can be set via a coding circuit depending on the application (see table at pictures). Product Overview / Features: Multifunctional LED plug-in power supply with CASAMBI light control and interchangeable plug attachments (sold separately) Mode of operation (current and voltage) are flexible adjustable by dip switch: Constant current: 200mA to 900mA Constant voltage: 12V and 24V Controllable by a smart device (for example tablet, smartphone) with the Casambi app Dimming also possible with a pushbutton in the secondary circuit Integrated antenna Using the free app from CASAMBI (Apple / Android) you comfortably control all settings (downloads below in the description) Regulate the brightness Configuring luminaires and luminaire networks Creating scenes and animations New devices are automatically detected Intelligent timer and gallery functions Set sharing options (only me, everyone, only with password, ...) Notes: The interchangeable attachment plugs that fit the Casambi plug-in power supply unit are available separately on request and under the following item numbers. Thereby the types of the plugs differ according to the region. Europe USA UK Australia 401474 401475 401476 401478 Technical Data: Part number 040645 Type NSMXBT99-18KB Input voltage 100..240 Vac Frequency 50..60 Hz Output power Depending on operating mode (constant voltage/current set), detailed table in data sheet Radio signal 2.4..2.483 GHz; 4 dBm Power factor ? 0.95 Ambient temperature 0..+40 °C Max. rated temperature 75 °C Thermal protection Yes Overload protection Yes Short circuit protection Yes Dimensions (built-in housing) 122 x 59 x 42.5 mm Experience the new application versatility of CASAMBI. Through Casambi, you can conveniently control your lighting via smartphone or tablet, wirelessly and easily individually. The control runs via Casambi LE (low energy). If several Casambi modules are in use, a so-called "mesh network" is built up. Each additional Casambi module increases the range, because each module establishes a direct connection to all others. Your lights can now not only dim, turn on and off, but the timer function allows you to implement time controlled lighting. In the process, a maximum of 3 lights can be combined into a group, light scenes can be stored, and much more. The compact modules are mounted quite simply in front of the luminaire, so that no additional cables need to be laid. The setup is extremely simple, all components are automatically recognized in the network and in the app. CASAMBI QR code and links: Casambi App in App Store Casambi App for Android CASAMBI Tutorial - General overview of functions   CASAMBI Tutorial - General overview of functions   You can find many other supporting videos about Casambi at YouTube . For more information, please refer to the data sheet in the download tab.

Multifunctional Casambi Plug-In Power Supply - Current and Voltage Adjustable This flexible Casambi plug-in power supply allows the implementation of numerous LED lighting applications. Here, the lighting control by Casambi radio is used. Furthermore, the power supply is ideally suited for various plug attachments, which can be quickly and easily replaced. In the secondary circuit there is also the possibility to dim your lighting system by a push button. The Casambi plug-in power supply underlines its versatile functionality by the fact that constant current and voltage can be set via a coding circuit depending on the application (see table at pictures). Product Overview / Features: Multifunctional LED plug-in power supply with CASAMBI light control and interchangeable plug attachments (sold separately) Mode of operation (current and voltage) are flexible adjustable by dip switch: Constant current: 200mA to 900mA Constant voltage: 12V and 24V Controllable by a smart device (for example tablet, smartphone) with the Casambi app Dimming also possible with a pushbutton in the secondary circuit Integrated antenna Using the free app from CASAMBI (Apple / Android) you comfortably control all settings (downloads below in the description) Regulate the brightness Configuring luminaires and luminaire networks Creating scenes and animations New devices are automatically detected Intelligent timer and gallery functions Set sharing options (only me, everyone, only with password, ...) Notes: The interchangeable attachment plugs that fit the Casambi plug-in power supply unit are available separately on request and under the following item numbers. Thereby the types of the plugs differ according to the region. Europe USA UK Australia 401474 401475 401476 401478 Technical Data: Part number 040645 Type NSMXBT99-18KB Input voltage 100..240 Vac Frequency 50..60 Hz Output power Depending on operating mode (constant voltage/current set), detailed table in data sheet Radio signal 2.4..2.483 GHz; 4 dBm Power factor ? 0.95 Ambient temperature 0..+40 °C Max. rated temperature 75 °C Thermal protection Yes Overload protection Yes Short circuit protection Yes Dimensions (built-in housing) 122 x 59 x 42.5 mm Experience the new application versatility of CASAMBI. Through Casambi, you can conveniently control your lighting via smartphone or tablet, wirelessly and easily individually. The control runs via Casambi LE (low energy). If several Casambi modules are in use, a so-called "mesh network" is built up. Each additional Casambi module increases the range, because each module establishes a direct connection to all others. Your lights can now not only dim, turn on and off, but the timer function allows you to implement time controlled lighting. In the process, a maximum of 3 lights can be combined into a group, light scenes can be stored, and much more. The compact modules are mounted quite simply in front of the luminaire, so that no additional cables need to be laid. The setup is extremely simple, all components are automatically recognized in the network and in the app. CASAMBI QR code and links: Casambi App in App Store Casambi App for Android What CASAMBI can do! You can find many other supporting videos about Casambi at YouTube . For more information, please refer to the data sheet in the download tab.

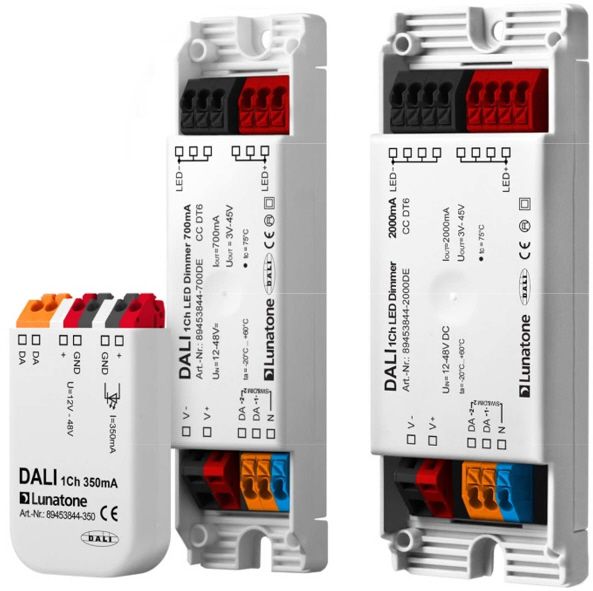

DALI ballast for constant current at low voltage input voltage Product specifications for 89453844 Available for amperages 350mA and 700mA Supply voltage 12V to 48V DC Configuration via DALI cockpit and DALI USB interface Integrated short-circuit protection Alternatively it is also possible to control it via push-button instead of DALI Available variants: 350 mA const. Output current: 89453844-350 700 mA const. output current: 89453844-700 Technical data for DALI ballast Supply: 12 V DC - 48 V DC Maximum output current: depending on the type Output voltage range: depending on the type (see data sheet) Control input: DALI Temperature: depending on the type (see data sheet) Protection class: IP20 Condition after mains return: depends on DALI setting Maximum power mean: depending on the type (see data sheet) Dimensions (L x W x H): depending on type (see data sheet)

1-channel DALI LED Power Supply with DALI control input Product features Types for constant voltage (24V) and constant current (250mA, 350mA, 500mA, 700mA, 1050mA) available Control via DALI-address (DT6) SwitchDim2: level control via switching inputs without DALI Dimming range from 0.1%-100% (constant current operation) Supply voltage 230V AC Configuration with DALI-Cockpit softwaretool and DALI USB interface Over temperature shutdown, integrated short circuit protection User-friendly factory default settings Suitable for integration in luminaires and remote ceiling Technical data Supply: 220/240 V AC 50/60 Hz Idle power: < 0,3W Inrush current: >0,2 A Power factor: >0,95 Control input: DALI or SwichDim2 Number of DALI addresses: 1 Current consumption DALI: 2mA Temperature: -20 °C to +45 °C Protection class: IP20 Power on behaviour: Configurable via DALI: 0%-100% or last value Max. connecting wire cross section : 1,5 mm2 Dimensions (LxWxH): 120 mm x 41 mm x 22mm   Specification: Constant voltage (CV) Type: DALI 24V LED Power Supply CV DT6 Article number 89453849-XXX 24V Electrical data: Output voltage 24V+- 0,5V PWM max. output current 1A Constant current (CC) Type DALI LED Power Supply CC DT6 Article number 89453849-XXX 250  350  500  700  1050  Electrical data: Output current 250mA 350mA 500mA 700mA 1050mA Output voltage range 12-44V 12-44V 12-36V 12-32V 12-21V RECOMMENDATION: Care should be taken on keeping cable lengths between dimmer and luminaires (Led-Strings) as short as possible. This kind of installation will minimize the influence of voltage drops.ieren. For more information on the Lunatone 1-channel DALI, please refer to the data sheet in the Downloads tab.

DALI constant current controller for the dimming or changing of colour temperature Product specifications   Usual dimming via constant current controller with 1 channel: DALI constant current controller for dimming The device has a DALI address (DT8) Supply voltage 12V to 48V DC Configuration via DALI cockpit and DALI USB interface Integrated short protection Changing of the colour via DALI constant current controller with 2 channels: All variants with 2 channels are for the direct control of dynamic white LED modules with current input, whose colour is adjustable from cool white to warm white.  The device has a DALI address (DT8) Supply voltage 12V to 48V DC Configuration via DALI cockpit and DALI USB interface Integrated short protection Different variants: 1 channel for the dimming of LEDs:350 mA const. output current: 89453844-350700 mA const. output current: 89453844-700  2 channels for the control of colour temperature tuneable-white LEDs:350 mA const. output current: 86458911-350500 mA const. output current: 86458911-500700 mA const. output current: 86458911-7001000 mA const. output current: 86458911-1000  Technical data Supply: 12 V DC - 48 V DC Maximum output current: depending on the model Output voltage range: depending on the model (check data sheet) Control input: DALI Temperature: depending on the model (check data sheet) Protection type: IP20 Condition after return: depending on the DALI settings Maximum wire cross-section: depending on the model (check data sheet) Dimensions (L x W x H): depending on the model (check data sheet)

DALI LED Power Supply with DALI control input for Tunable White Output with safe isolation from mains and DALI, independent control of brightness and colour temperature (DT8). The device supports the operating modes Balance & Dim, Dim2Warm and SwitchDim2. Product features: DALI LED Power Supply for the control of tunable white luminaires Types for constant voltage and constant current LED-modules available Operating Mode DT8: one DALI-address for the independent control of light level and colour temperature (DALI DT8, Colour Type Tc) Operating Mode Balance&Dim:control by 2 DALI-addresses, one for adjusting the light level and one for adjusting the channel balance (e.g. colour temperature) Operating Mode Dim2Warm: one DALI-address for simultaneous adjustment of light level and colour temperature SwitchDim2: 2 switch-inputs offer control of level and colour without DALI Dimming range 0 0.1%-100% Adjustable PWM-frequency (122Hz/244Hz/488Hz/976Hz) Supply voltage 230V AC CV-Type: output 24V PWM (max. 1A) or 36V PWM (max. 700mA) CC-Type: output currents of up to 1100mA Configuration via PC-software DALI-Cockpit and DALI USB-interface Overtemperature shutdown, integrated short circuit protection User-friendly factory default settings Specification: Constant voltage (CV) Type: DALI 24V LED Power Supply CV DT8 Article number 89453849-CWW-24V / 89453849-CWW-36V Electrical data: Supply voltage 220-240V AC / 50-60Hz, Iin=0.12A, power factor > 0.95 inrush current < 0.2A Output 24V+- 0,5V PWM / 36+- 0,5V PWM Max. output current 1A / 700mA Control input DALI or SwitchDim2 Current DALI 2mA Number of DALI addresses operating mode DT8, Dim2Warm: 1 operating mode Balance&Dim: 2 Constant current (CC) Type DALI LED Power Supply CC DT6 Article number 89453849-CWW-XXX 350 500 700 800 1150 Electrical data: Output current 350mA 500mA 700mA 800mA 1100mA Output voltage range 12-44V 12-36V 12-32V 12-28V 12-16V Control input DALI Current consumption DALI 2mA Number of DALI addresses operating mode DT8, Dim2Warm: 1 operating mode Balance&Dim: 2 Technical data: Power on behaviour configurable via DALI: 0%-100% or last value Storage/transportation temp. -20°C ... +75°C Ambient temperature -20°C ... +45°C Expected lifetime (at tc<=65°C) >50000h Protection class IP20 Connecting wire cross section 1.5 mm2 Dimensions (LxWxH) 120mmx41mmx22mm Mounting/housing remote ceiling / integration in luminaires RECOMMENDATION: During installation, care should be taken to keep the cable lengths between LED power supply and LED lights (LED strings) as short as possible to minimize the effects of voltage drops. For more information on this product, please refer to the data sheet.

BMU - small and compact LED-driver 12W from TCI The BMU series is an LED constant current source with small square dimensions, especially for installation in luminaires. Easy installation with spring terminal contacts. The 12W driver is available for currents of 210mA, 280mA, 350mA, 500mA and 700mA.   Features of the BMU-Series from TCI (122796, 122797, 122790, 122794, 122792): SELV <60V Wide Range Input Voltage (AC and DC) Suitable for automatic wiring machine Not dimmable Driver for built-in use. It can be used for lighting equipment in protection class I and II. Single terminal block at the primary and secondary circuit (wire cross-section up to 1,5 mm²/ AWG15). Input and output terminal blocks on the same side. Flicker (Output Ripple) < 3% Article Article No. Power out Voltage out Current out    #LED DC   6W 210mA BMU 122796   6,5 W 3...33 V 210mA const.     1-9 DC   9W 280mA BMU 122797      9 W 3...33 V 280mA const.     1-9 DC 12W 350mA BMU 122790    12 W 2...31 V 350mA const.     1-8 DC 12W 500mA BMU 122794    12 W 2...24 V 500mA const.     1-6 DC 12W 700mA BMU 122792    12 W 2...16 V 700mA const.     1-4   Further Features for BMU Driver can be secured with slot for screws. Ultra compact size. Protections:  against overheating and short circuits; against mains voltage spikes; against overloads. Current regulation -6 % +5 % including temperature variation Approvals: KEMAKEUR ENEC UL (class 2) CCC Further Informations about TCI BMU xxx can be found in PDF-Datasheet Download Tab

TCI LED constant current source adjustable via dip switch 350mA-700mA | #dimmable The DC Jolly 127016 is an electronically dimmable driver for direct current, adjustable via DIP-SWITCH, with outgoing connection cables for fast integration into terminal systems. This KSQ is ideally suited for supplying constant current powered power LED modules/lights or LED systems designed for protection class I, IP20 (protective conductor as connection cable available). The desired output current can be set via an integrated dip-switch. The light dimming/brightness adjustment can be controlled using the PUSH function.An active overshoot filter is integrated to correct the power factor. The maximum rated power is 32W. This ECG is also protected against overheating and short circuits, mains voltage peaks and overload. Article number: 127016Rated power: 17W to 32W depending on the selected constant current.Constant current range selectable in steps: 350mA-700mA Nominal voltage 220 - 240VFrequency 50 ... 60 HzAC operating range 198 - 264 VDC operating range 176 - 276 VDimensions: L78/H27/W40 This driver offers up to 32W power at currents from 350mA to 700mA, which can be adjusted in 8 steps via dip-switches. Dip-SW Power Current sec. Strom sec. max. #LEDs Position 1 17W 20...50V  350mA const. 14 Position 2 20W 20...50V  400mA const. 14 Position 3 22W 20...50V  450mA const 14 Position 4 24W 10...50V 500mA const. 14 Position 5 26W 10...50V 550mA const. 14 Position 6 28W 2...50V 600mA const. 14 Position 7 30W 2...50V 650mA const. 14 Position 8 32W 2...50V 700mA const. 14Efficiency of the constant current source 127016 as a function of the power: >88%.Features for TCI 127016 DC Jolly TRT: Multipower driver with DIP switch for selecting the output current Stand-by power below 0.25 W Drivers for integrated use It can be used for lighting devices of protection class I Supplied with cables to primary and secondary circuits for connection  Active power factor corrector. Current control ± 6% including temperature fluctuations Protection: against overheating and short circuits;  against mains voltage peaks; against overload. Thermal insulation = C.5.a Special features of DCJolly TRT:Light control / brightness adjustment 0 / 0.5 - 100% via PUSH functionLight control / brightness adjustment 0 / 0.5 - 100% via PUSH function (L mains voltage: 170 Kohm): A short press to turn on and off A longer pressure to increase or decrease the light intensity Control stops automatically at minimum and maximum values Release the button for another ON, CONTROL or OFF command and enter the desired command again. PUSH dimming is equipped with a memory function.The maximum cable length from the button to the driver should not exceed 15m. Efficiency of the constant current source 127016 as a function of the power: >88%. For a detailed description of the LED constant current source, please refer to the data sheet in the download area.

Features •Active Power Factor Corrector. •IP20 independent driver, for indoor use. •Class II protection against electric shock for direct or indirect contact. •Supplied with terminal cover and cable retainer. •Input and output terminal blocks on opposite sides (wire cross-section up to 2,5 mm2 / AWG13). •Single terminal block on primary and secondary circuit. •Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm. •Driver can be secured with slot for screws. •Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads   More Data Article Code P out W V out DC I out DC U out V ta C° tc C° max Power Factor max Efficiency DCC 12W 500mA HPFU 127711 12 1...24 500 mA cost. 25 -25....+50 80 0,85 C >83 DCC 12W 700mA HPFU 127712 12 2...16 700 mA cost. 19 -25...+45 75 0,85 C >80 DCC 15W 350mA 127713 15 2...41,5 350 mA cost. 45 -25...+45 75 0,80 C >85   For more information see our download tab.

TCI DC Jolly MD; universal dimmable LED converter TCI 122260 32 watt selectable constant current, constant voltage via dip-switch Multi current-multi voltage converter- universally applicable.The dimmable LED Converter is Controllable via conventional dimmer (Phase-fired controller) or button (Push-Button). On/off by a short push. Brightness can be changed by a longer push.Flicker ( Output Ripple ) <= 3% Dip-SW Power out Voltage out Current out # LED Position 1 17 W 2...47 V max 350mA const. max 12 Position 2 24 W 2...47 V max 500mA const max 12 Position 3 25 W 2...47 V max 550mA const max 12 Position 4 32 W 2...46 V max 700mA const max 12 Position 5 32 W 2...43 V max. 750mA const max 11 Position 6 10 W 12 V constant 900mA max - Position 7 20 W 24 V constant 900mA max - Position 8 22 W 28 V constant 900mA max - Efficiency depending of the power: 20W - 32W : 84%  - 91% All tci Jolly converter can be connected to each other via sync-cable. Thus, the control over only one button is possible.Maximum 10 drivers synchronization, is possible command only one driver (1 Master + 9 Slaves).Button and installation materials are not included in delivery. For detailed description of dimmable LED converter please refer to the data sheet.

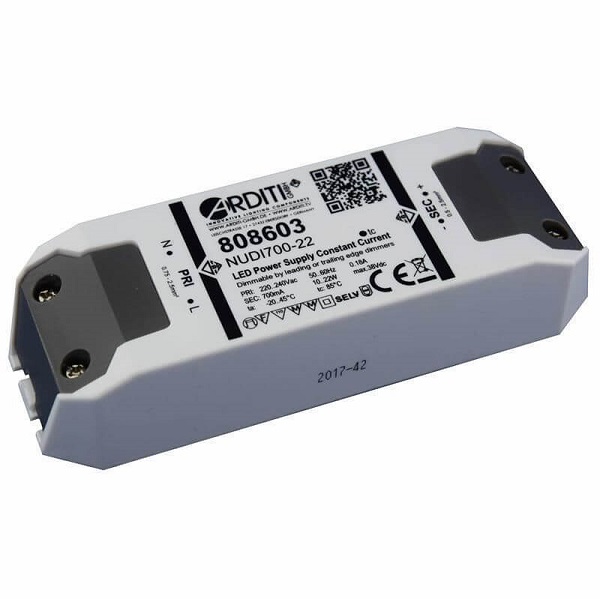

Highly efficient LED power source dimmable up to 39W with for high power LEDs In conjunction with the operation of high-power-LEDs, this power source is the ideal solution. The independent module, which acts as a power-supply with a constant output current, has the option of leading/trailing edge dimming. The product is available in six versions, see in our table. Further features: Independent Power supply with constant output current for high power LEDs Dimmable by dimmer with leading/trailing edge High power factor of 95% Protection against overload, overheating and short circuit The load must not fall below the minimum load of the dimmer It could be necessary to increase the minimum brightness Note: Do not insert switches into the secondary circuit! Only connect high power LEDs in series! Reference: We recommend the following products (non-binding) (always test before use) GIRA 0707 00/I02 KOPP 8033 FELLER 40300.RC BUSCH-JÄGER 6523U* GIRA 2390 00/I00 JUNG 1224 LEDUDE* ARDITI D12S230-25 (Dimmer 1012S 250 W Universal) ARDITI DUT230-25 (Dimmer ART. 1004/P) ARDITI DEBT230-150 (800698), DUBT230-150 (800680) Technical data: Variation 22W 350mA 22W 500mA 22W 700mA 39W 350mA 39W 500mA 39W 700mA Article number 808601 808602 808603 808605 808606 808607 Type NUDI350-22 NUDI500-22 NUDI700-22 NUDI350-39 NUDI500-39 NUDI700-39 Input voltage 220..240 Vac Frequency 50..60 Hz Nominal output current 350 mA 500 mA 700 mA 350 mA 500 mA 700 mA Output power 10..20 W 10..22 W 10..22 W 19..37 W 20..40 W 20..39 W Operating output voltag 28..56 Vdc 20..44 Vdc 14..32 Vdc 53..106 Vdc 40..80 Vdc 28..56 Vdc Max. output voltage 65 Vdc 50 Vdc 38 Vdc 117 Vdc 93 Vdc 70 Vdc Power factor acc. to EN61000-3-2 0,95 Ambient temperature -20..+45 °C -20..+50 °C Rated max. temperature 85 °C 80 °C Thermal protection yes Overload protection yes Short circuit protection yes Dimensions 144x44x28 mm 166x52x24 mm For further information please refer to the data sheet in the Download tab.

eldoLED POWERdrive 106 LED driver Dimmable constant current LED driver with 4 LED outputs that can be controlled individually via DMX or DALI. 100W POWERdrive 106 led driver have four separately controllable LED outputs, which can be used for wide range of full-colour (RGBW), dynamic LED lighting applications. You can configure the driver over its intuitive, 3-button user interface with display: The number of channels DMX or DALI settings Colour and dim values The POWERdrive 106 Series is available in 3 different versions, which differ only in dimensions and weight: Furthermore, e.g. an astronomical clock (night-time reduction) or a motion sensor can be connected to the external input. Instruction Operating with astronomical clock (PDF) Instruction Operating with motion sensor (PDF)   Technical Data eldoLED POWERdrive 106:  Input:    Input voltage AC  120-250V (ENEC approved)  120-277V (UL approved)  Input voltage DC  120-275V  Input  current  1.05A max @ 120V/60Hz  0.5A max @ 230V/50Hz  0.45A max @ 277V/60Hz      Output:    LED output power  100W max.  LED output current range  200-1050mA  LED output current resolution  50mA  LED output current tolerance  +/- 5%  LED outputs  4  LED output voltage range  2-57V  Control channels  4      Dimming protocol  DMX and DALI  Dimming range  100%-0% (HydraDrive)  Dimming curve  linear, logarithmic, square  Driver configuration  via 3-button user interface on driver  Dimension (LxWxH)  depending on version  Weight  depending on version

eldoLED POWERdrive 180D LED driver Dimmable constant current LED driver with 4 LED outputs that can be controlled individually via DMX or DALI. You can configure the driver over its intuitive, 3-button user interface with display: The number of channels DMX or DALI settings Colour and dim values Furthermore, e.g. an astronomical clock (night-time reduction) or a motion sensor can be connected to the external input. Instruction Operating with astronomical clock (PDF) Instruction Operating with motion sensor (PDF)   Technical Data eldoLED Powerdrive 180D:  Input:    Input voltage DC  12-32V  Input  current  6,16A max.      Output:    LED output power  180W max.  LED output current range  200-1400mA  LED output current resolution  50mA  LED output current tolerance  +/- 5%  LED outputs  4  LED output voltage range  11-31V (Vsup=1V)  Control channels  4      Dimming protocol  DMX and DALI  Dimming range  100%-0% (HydraDrive)  Dimming curve  linear, logarithmic, square  Driver configuration  via 3-button user interface on driver  Dimension (LxWxH)  193x50x23mm  Weight  191g

eldoLED POWERdrive 180D LED driver Dimmable constant current LED driver with 4 LED outputs that can be controlled individually via DMX or DALI. You can configure the driver over its intuitive, 3-button user interface with display: The number of channels DMX or DALI settings Colour and dim values Furthermore, e.g. an astronomical clock (night-time reduction) or a motion sensor can be connected to the external input. Instruction Operating with astronomical clock (PDF) Instruction Operating with motion sensor (PDF)   Technical Data eldoLED Powerdrive 180D:  Input:    Input voltage DC  12-32V  Input  current  6,16A max.      Output:    LED output power  180W max.  LED output current range  200-1400mA  LED output current resolution  50mA  LED output current tolerance  +/- 5%  LED outputs  4  LED output voltage range  11-31V (Vsup=1V)  Control channels  4      Dimming protocol  DMX and DALI  Dimming range  100%-0% (HydraDrive)  Dimming curve  linear, logarithmic, square  Driver configuration  via 3-button user interface on driver  Dimension (LxWxH)  193x50x23mm  Weight  191g

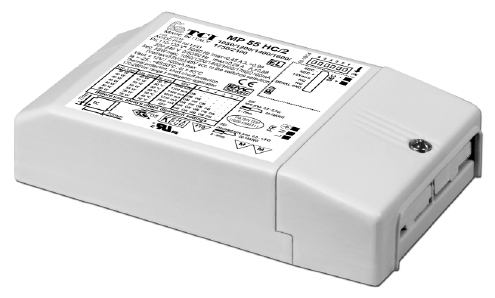

Direct current electronic driver with DIP-Switch from TCI The TCI MP 55 HC is a LED-converter, which is able to supply power operated high performance LEDs. The output current is adjustable via DIP-Switch. Not dimmable. Features of TCI MP 55 HC Multipower driver supplied with dip-switch for the selection of the output current. IP20 independent driver, for indoor use (MP 55 /2). Class I protection against electric shock for direct or indirect contact (MP 55 /2). It can be used for lighting equipment in protection class I (MP 55 BI). Driver for built-in use (MP 55 BI). Active Power Factor Corrector. Auxiliary output 12 V max. 100 mA. Current regulation ±5 % including temperature variations. Input and output terminal blocks on the same side (wire cross-section up to 1,5 - 2,5 mm2 / AWG15 - AWG13). Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm (MP 55 /2). Driver can be secured with slot for screws. Protections: against overheating and short circuits; against mains voltage spikes; against overloads. Thermal protection = C.5.a. Flicker (Output Ripple) < 3 % Setting options MP 55 HC/2 and MP 55 HC BI Dip-SW Power out Voltage out Current out # LED Position 1 45 W 2...44 V 1,05 A const. 12 Position 2 52 W 2...44 V 1,2 A const. 12 Position 3 55 W 2...39 V 1,4 A const. 11 Position 4 55 W 2...35 V 1,6 A const. 10 Position 5 55 W 2...30 V 1,75 A const. 8 Position 6 55 W 2...26V 2,1 A const. 7   Setting options MP 55 1400/2 and MP 1400 BI Dip-SW Power out Voltage out Current out # LED Position 1 45 W 2...44 V 1,05 A const. 12 Position 2 52 W 2...44 V 1,2 A const. 12 Position 3 55 W 2...39 V 1,4 A const. 11 Accessories not supplied: 6pin cable for LED and AUX For further information please refer to the data sheet. (Download tab)

Meanwell HLG-120H-Cxxx "Type" The HLG120H-C is a high performance, dust- and waterproof AC-DC LED constant current power supply up to 150W max nominal power. It is equipped with proven features, e.g. dimming methods, which ensure flexible application of the product. Due to the high power (up to 150W) different high-power LED modules and COB can be operated on this driver. In addition, protection class IP65/IP67 allows application outdoors.   HLG-120H-C features (type dependent): 7 years manufacturer's warranty Universal AC input from 90V up to 305V AC As well as DC input from 127V to 431V DC Built-in PFC circuit Protection against short circuit, overvoltage and overload (temperature protection) self-cooling via housing by air convection, operating range -40 to +80 degrees Celsius OCP (over current protection) possible via terminals or internal potentiometer IP65 Protection for outdoor installations Dimming function via 1-10V, PWM or resistor possible, Timer dimming Overload protection by current limitation, auto recovery Suitable for operation of LED modules via constant current (350mA - 1400mA) Complies with worldwide standards for lighting HLG-120H-C version Type xxx "A": Internal potentiometer for fine adjustment of the output current IP65, for indoor and outdoor applications   HLG 120H-C Type xxx "B": Constant current control via 1-10V or PWM input, as well as external potentiometer IP67 protection. For indoor and outdoor applications High power via DALI dimming in conjunction with DAP-04 DALI PWM converter Further information on dimming via DALI and PWM is available in this article: DALI PWM solution for dimming LED technology Technical Data Meanwell HLG-185H-C Version For LED lighting applications Model Switching power supply, H-C Surge strength 4 kV Input 90 - 305 VAC  / 127 - 431 VDC 47 - 63 Hz Output parameters:   Constant current 350mA 500mA 700mA 1050mA 1400mA Output voltage, Control range 215 ~ 430V 150 ~ 300V 107~215V 74 ~ 148V 54 ~ 108V Power 150.5W 150W 150.5W 155.4W 151.2W Current setting range, Type A 175 ~ 350mA 250 ~ 500mA 350 ~ 700mA 525 ~ 1050mA 700 ~ 1400mA Design HLG Approbation UL / EN Class C Dimensions 220mm x 68mm x 38,8mm (H x W x D)  For further technical details please refer to the data sheet (in tab Download) On Request we also offer other versions.

Meanwell HLG-185H-Cxxx "Type" The HLG185H-C is a high performance, dust- and waterproof AC-DC LED constant current power supply up to 200W max nominal power. It is equipped with proven features, e.g. dimming methods, which ensure flexible application of the product. Due to the high power (up to 200W) different high-power LED modules and COB can be operated on this driver. In addition, protection class IP65/IP67 allows application outdoors.   HLG-185H-C features (type dependent): 7 years manufacturer's warranty Universal AC input from 90V up to 305V AC As well as DC input from 127V to 431V DC Built-in PFC circuit Protection against short circuit, overvoltage and overload (temperature protection) Self-cooling via housing by air convection, operating range -40 to +80 degrees Celsius OCP (over current protection) possible via terminals or internal potentiometer IP65 Protection for outdoor installations Dimming function via 1-10V, PWM or resistor possible, Timer dimming Overload protection by current limitation, auto recovery Suitable for operation of LED modules via constant current (500mA - 1400mA) Complies with worldwide standards for lighting HLG-185H-C version Type xxx "A": Internal potentiometer for fine adjustment of the output current IP65, for indoor and outdoor applications   Design HLG 185H-C Type xxx "B": Constant current control via 1-10V or PWM input, as well as external potentiometer IP67 protection. For indoor and outdoor applications High power via DALI dimming in conjunction with DAP-04 DALI PWM converter Further information on dimming via DALI and PWM is available in this article: DALI PWM solution for dimming LED technology Technical Data Meanwell HLG-185H-C Version For LED lighting applications Model Switching power supply, H-C Surge strength 4 kV Input 90 - 305 VAC  / 127 - 431 VDC 47 - 63 Hz Output parameters: Constant current 500mA 700mA 1050mA 1400mA Output voltage, Control range 200 ~ 400V 143 ~ 286V 95~190V 71 ~ 143V Power 200W 200,2W 199,5W 200,2W Current setting range, Type A 250 ~ 500mA 350 ~ 700mA 525 ~ 1050mA 700 ~ 1400mA Design HLG Approbation UL / EN Class C Dimensions 228mm x 68mm x 38,8mm (H x W x D)  For further technical details please refer to the data sheet (in tab Download) On Request we also offer other versions.

Meanwell HLG-240H-Cxxx"Type" The HLG240H-C is a high performance, dust- and waterproof AC-DC LED constant current power supply up to 250W max nominal power. It is equipped with proven features, e.g. dimming methods, which ensure flexible application of the product. Due to the high power (up to 250W) different high-power LED modules and COB can be operated on this driver. In addition, protection class IP65/IP67 allows application outdoors.   HLG-240H-C features (type dependent): 7 years manufacturer's warranty Universal AC input from 90V up to 305V AC As well as DC input from 127V to 431V DC Built-in PFC circuit Protection against short circuit, overvoltage and overload (temperature protection) self-cooling via housing by air convection, operating range -40 to +90 degrees Celsius OCP (over current protection) possible via terminals or internal potentiometer IP65 Protection for outdoor installations Dimming function via 1-10V, PWM or resistor possible, SmartTimer dimming Type HL for use according to Class I Zone 2 (gases and vapours) Overload protection by current limitation, auto recovery Suitable for operation of LED modules via constant current (700mA - 2100mA) Complies with worldwide standards for lighting HLG-240H-C type xxx "A" Internal potentiometer for fine adjustment of the output current IP65, for indoor and outdoor applications   HLG 240H-C Type xxx "B": Constant current control via 1-10V or PWM input, as well as external potentiometer IP67 protection. For indoor and outdoor applications High power via DALI dimming in conjunction with DAP-04 DALI PWM converter Further information on dimming via DALI and PWM is available in this article: DALI PWM solution for dimming LED technology Technical Data Meanwell HLG-240H-C Version For LED lighting applications Model Switching power supply, H-C Surge strength 4 kV Input 90 - 305 VAC  / 127 - 431 VDC 47 - 63 Hz Output parameters:   Constant current 700mA 1050mA 1400mA 1750mA 2100mA Output voltage, Control range 178 ~ 357V 119 ~ 238V 89 ~ 179V 71 ~ 143V 59 ~ 119V Power 249,9W 249,9W 250,6W 250,25W 249,9W Current setting range, Type A 350 ~ 700mA 525 ~ 1050mA 700 ~ 1400mA 875 ~ 1750mA 1050 ~ 2100mA Design HLG Approbation UL / EN Class C Dimensions 244,2mm x 68mm x 38,8mm (H x W x D)  For further technical details please refer to the data sheet (in tab Download) On Request we also offer other versions.

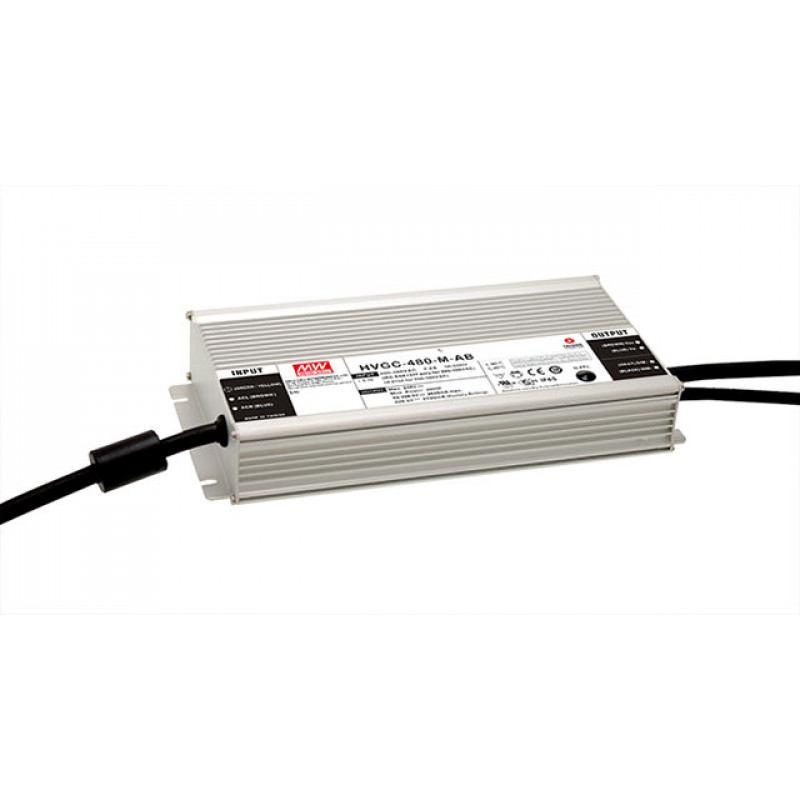

High-performance LED Driver HVGC 480 Watt incl. diff. Dimming Functions, IP67 Product Description: HVGC-480 series is a 480W LED AC/DC driver featuring the constant power mode and high voltage output. The module operates from 180VAC - 528VAC and offers models with different rated current ranging between 1400mA and 2800mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40°C to +90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC480 is equipped with various function options, such as dimming methodologies in order to provide the optimal design flexibility for LED lighting system. Features of HVCG 480 series: Wide input range 180 ~ 528VAC Constant Power mode output Metal housing with Class I design Built-in active PFC function  IP67 design for indoor or outdoor installations Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming Typical lifetime>50000 hours 5 years warranty Applications: Harbor lighting LED high-bay lighting Parking space lighting LED fishing lamp Technical Data:  Model HVGC-480-L-AB   HVGC-480-M-AB HVGC-480-H-AB  Rated current 1400 mA  2100 mA  2800 mA  Design For LED lighting applications (DIN EN61347) Nominal voltage 230 VAC Min. input voltage 180 VAC Max. input voltage 528 VAC Constant current region 137-343 VDC 92-228,5 VDC 68-171,5 VDC Rated power (output) 480 W Frequency range 47-63 Hz  Efficiency 94,5 %  Working temperature  -40°C to +90°C  Storage temperature -40°C to +80°C  Type of construction Closed Material (housing) Primary aluminium Protection level IP67 Service life >50.000 h Dimensions 262*125*43,5 mm (L*W*H)The data sheet in the download tab provides further information.

HVGC 100 watt LED Driver incl. 3 in 1 dimming and Timer dimming, IP65/67 Product Description: HVGC-100 series is a 100W LED AC/DC driver featuring the constant current mode and high voltage output. The module operates from 180VAC - 528VAC and offers models with different rated current, 350mA and 750mA, respectively. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40°C to +90°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC 100 is equipped with various function options, such as dimming methodologies, in order to provide the optimal design flexibility for LED lighting system. Version HVGC100 Type -xx-"A": IP65 protection level Output voltage and current limiting adjustable through built-in potentiometer Smart timer dimming possible Version HVGC100 Type -xx-"B": IP67 protection level 3 in 1 dimming function (0-10 Vdc, 10V PWM signal and resistance) Smart timer dimming possible Features: Wide input range 180 ~ 528VAC Constant Current mode output Metal housing with Class I design Built-in active PFC function  IP67 / IP65 design for indoor or outdoor installations Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off) ; Timer dimming Typical lifetime>50000 hours 5 years warranty Applications: LED street lighting LED high-bay lighting Parking space lighting LED fishing lamp Technical Data for HVGC-100-xxx mA:  Model (Type A) -350A -700A Model (Type B) -350B -700B Rated current 350 mA  700 mA  Design For LED lighting applications (DIN EN61347) Nominal voltage 230 VAC Min. input voltage 180 VAC Max. input voltage 480 VAC Constant current region 29-285 VDC 15-142 VDC Rated power (output) 99,75 W 99,40 W Frequency range 47-63 Hz  Efficiency 91,0 %  Working temperature  -40°C to +90°C  Storage temperature -40°C to +80°C  Type of construction Closed Material (housing) Primary aluminium Protection level Type A: IP65 / Type B: IP67 Service life >50.000 h Dimensions 236*68*38,8 mm (L*W*H)The data sheet in the download tab provides further information.

Constant Current Driver HVGC 150 Watt, 3 in 1 dimming / timer dimming, IP67/65 Product Description: HVGC 150 series is a 150W LED AC/DC power supply featuring the constant current mode and high voltage output. The module operates from 180VAC - 528VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40°C to +80°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-150 is equipped with various function options, such as dimming methodologies in order to provide the optimal design flexibility for LED lighting system. Version HVGC150 Type -xx-"A": IP65 protection level Output voltage and current limiting adjustable through built-in potentiometer Smart timer dimming possible Version HVGC150 Type -xx-"B": IP67 protection level 3 in 1 dimming function (0-10 Vdc, 10V PWM signal and resistance) Smart timer dimming possible Features: Wide input range 180 ~ 528VAC Constant Current mode output Metal housing with Class I design Built-in active PFC function  IP67 / IP65 design for indoor or outdoor installations Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off) ; Timer dimming Typical lifetime>50000 hours 5 years warranty Applications: LED street lighting LED high-bay lighting Parking space lighting LED fishing lamp Technical Data for HVGC-150-xxx mA:  Model (Type A) -350A -500A -700A -1050A -1400A Model (Type B) -350B -500B -700B -1050B -1400B Rated current 350 mA  500 mA  700 mA  1050 mA  1400 mA  Design For LED lighting applications (DIN EN61347) Nominal voltage 230 VAC Min. input voltage 180 VAC Max. input voltage 528 VAC Constant current region 42-428 VDC 30-300 VDC 21-215 VDC 15-143 VDC 12-107 VDC Rated power (output) 149,80 W 150,00 W 150,50 W 150,15 W 149,80 W Frequency range 47-63 Hz  Efficiency 91,0 %  91,0 %  91,0 %  90,0 % 90,0 % Working temperature  -40°C to +80°C  Storage temperature -40°C to +80°C  Type of construction Closed Material (housing) Primary aluminium Protection level Type A: IP65 / Type B: IP67 Service life >50.000 h Dimensions 245*68*38,8 mm (L*W*H)The data sheet in the download tab provides further information.
